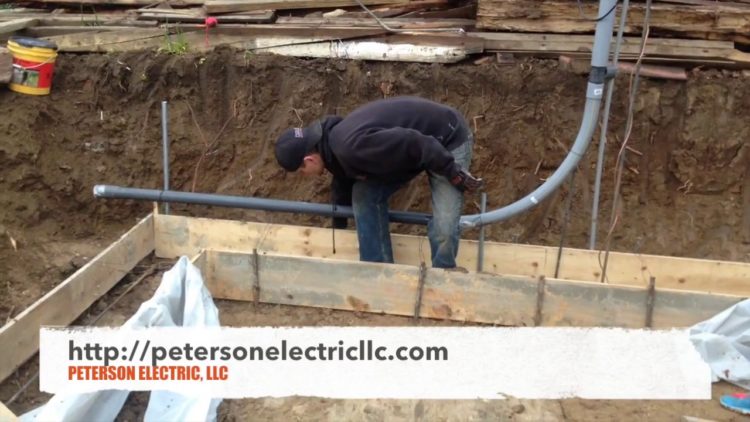

Step 2 – Install the Ground Rod Horizontally If you hit a rock trench before you can hammer the rod down all eight feet, then you can simply install it horizontally. Shovel out a strip of the earth at least 2 1/2 feet deep and long enough to accommodate the entire grounding rod (at least 8 feet).
Thereof, What is Ufer grounding system?
From Wikipedia, the free encyclopedia. The Ufer ground is an electrical earth grounding method developed during World War II. It uses a concrete-encased electrode to improve grounding in dry areas. The technique is used in construction of concrete foundations.
Also to know is, Can you lay a ground rod in a trench? If driving a rod at the 45 degree from vertical cannot be done, due to rock bottom, then the rod can be buried in a trench that is at least 2 1/2 feet deep.
Subsequently, question is, Where rock bottom is encountered when driving a ground rod? Where a rock bottom is encountered, the ground rod shall be driven at an oblique angle not to exceed 45 degrees from the vertical or shall be buried in a trench that is at least 2 1/2 feet deep. The ground rod shall be installed so that at least 8 feet of rod is in contact with the soil.
Also, Can you ground to rebar?
Rebar CANNOT be used to join a rebar-type concrete encased electrode to a wire type grounding electrode conductor. B: Corrosion protection is required for the exposed rebar if the rebar is touching the earth.
How deep does a ground rod need to be?
8 feet
Can you use rebar as a grounding rod?
Rebar can be used as a grounding rod, however copper rod works much better. Copper is a better conductor, and will not corrode as badly as steel. Rebar corrodes much easier and will lose contact easier. But rebar is much cheaper to use.
How deep does a grounding rod need to go?
8 feet
Where should a grounding rod be installed?
Picking the Location. Install the rod in a location near the electrical panel. Ground rods need to be installed in the ground outside in a spot where they can be hammered 8 feet (2.4 m) into the ground.
What is the minimum depth for a ground rod?
8 feet
Can you install a ground rod horizontally?
Step 2 – Install the Ground Rod Horizontally If you hit a rock trench before you can hammer the rod down all eight feet, then you can simply install it horizontally. Shovel out a strip of the earth at least 2 1/2 feet deep and long enough to accommodate the entire grounding rod (at least 8 feet).
How deep does a ground rod need to be for electric fence?
The larger the output of a charger, the more grounding rods will be needed. A general rule is to install a minimum of 3 feet of ground rod per joule of output capacity. A 15 joule fence charger will require a minimum of 45 feet of ground rod. These rods must be installed at least 10 feet apart from each other.
How far does ground rod need to be from panel?
eight feet
How long will rebar last in the ground?
10 years to 2000 years
Do you have to put a ground rod for a subpanel?
To make this easier, consider the grounding conductor (the ground wire) as a backup neutral. … So for your first question: no, it is not against code to install a ground rod at the subpanel. It is actually required by code.
How much does it cost to install a grounding rod?
8′ ground rods cost about $11 apiece – 10′ if required in your area about $15 each. The grounding wire, assuming #4 bare copper wire, about $1.20/LF, 4 clamps at $5 ea – so assuming about 10′ run to each rod, then about $66-74 materials – say maybe $80-90 with markup.
How do you install a ground rod for an electric fence?
The first grounding rod must be driven into the soil within 20 feet of the fence energizer. Additional grounding rods should be spaced 10 feet apart from the previous rod. For ease of installation, pour water into the entry point when pounding in your ground rods.
