Registered. The rule states that a neutral must be available at each switch location. It’s not required to be terminated on a switch, however; you can wirenut it, and leave it.
The switched leg of a switch simply refers to the wire that is supplied electricity when the switch is turned on. When the switch is on, the switched leg then provides power to the fixture or device to be powered.
Thereof, How do you wire a single switch?

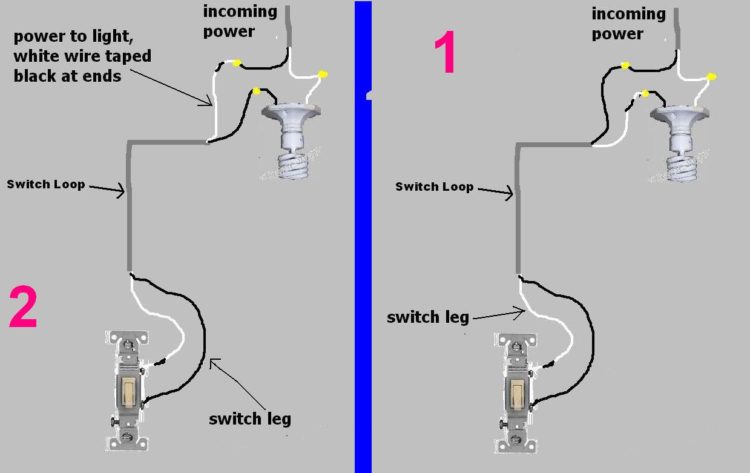

Also to know is, Can you use a white wire as a switch leg? You can use the white or gray conductor within a cable assembly for single-pole, three-way or four-way switch loops if it is permanently re-identified to indicate its use as an ungrounded (hot) conductor at each location where the conductor is visible and accessible [200.7(C)(2)].
Subsequently, question is, What happens if you switch neutral and ground? If you swap the two, then you have normal circuit current flowing on the ground wire and potential ground fault current flowing on the neutral wire. … So, to prevent this, the National Electrical Code prohibits the connection of the equipment ground and neutral at any point other than the service.
Also, Is switching the neutral OK?
The neutral wire is connected to ground at the breaker box, which is connected to physical ground nearby. If you switch the hot line and leave the neutral, then the whole device will be at neutral potential. That’s OK. If you switch the neutral, then the whole device will be at hot potential.
What happens if you connect neutral to ground?
A second problem with connecting the ground to the neutral happens if your neutral wire breaks between the outlet and your service entrance. … Given a ground to neutral connection, this will cause the chassis of your device to be at the “hot” voltage, which is very dangerous.
Does it matter which wire goes where on a light switch?
The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.
Are neutral and ground connected?
Neutral is a circuit conductor that normally completes the circuit back to the source. Neutral is usually connected to ground (earth) at the main electrical panel, street drop, or meter, and also at the final step-down transformer of the supply.
Is it OK to connect neutral to ground?
Originally Answered: Is it OK to connect neutral to the ground? Yes it’s okay because The power wire that is grounded is called the “neutral” wire because it is not dangerous with respect to exposed metal parts or plumbing. The “hot” wire gets its name because it is dangerous.
How do you install a switch?
– Turn off the power to the switch at the main circuit breaker or fuse panel.
– Unscrew and remove the switch plate; then use a voltage tester to make sure that the circuit is dead.
– Unscrew the switch from the electrical box and pull it out with the wires still attached.
Can I use white wire as hot?
The term “hot” is used for source wires that carry power from the electric service panel to a destination, such as a light or an outlet. Even though you are permitted to use a white wire as a hot wire by marking it with electrical tape, the opposite is not recommended or allowed.
Which wire goes to the switch?
The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.
Does it matter which wire goes where on a single pole switch?
Unless the new dimmer is specifically marked with LINE and LOAD or similar, it doesn’t matter which wire goes to which screw/pigtail in a simple two wire switch or dimmer. Since your new switch can be used as a three way, the instructions should say which screw should not be used.
What happens if neutral and ground are reversed?
The greater the load, the more difference you’ll see. If the hot-to-neutral voltage measured under load is greater than the hot-to-ground voltage, the neutral and ground are reversed. This should be corrected immediately.
What happens if you wire a light switch wrong?
You could put the switch on the neutral wire and everything would work, but it would leave voltage potential to ground in the light when it is switched off. That makes it a bit hazardous for changing light bulbs. If you became an electrical path to ground through a wet floor or something you could get a shock.
How do you wire a single pole switch?
Does it matter how you wire a light switch?
One wire is the power to the switch and the other wire goes to the light. If it’s not a single pole switch, or there are more than two wires (not including a ground), then I need more detail. Turn off the power before changing the switch. … The general rule is that a switch should always cut the line and not the neutral.
