My short answer to the question is that “Yes, lights and power outlets (a.k.a AC receptacles) can be on the same circuit controlled by a circuit breaker, especially in a single family residential house”. … The circuit branch controlled by the 15A circuit breaker has a couple of lights and AC outlets connected.
Thereof, How do I run multiple lights off one switch?

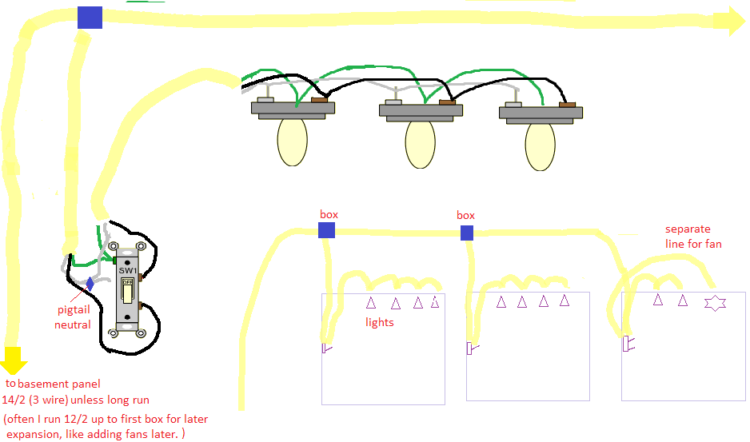

You can do this light switch wiring in one of two ways. The most common is to daisy-chain the light fixtures by connecting them to each other and hooking the first one up to the switch. The other way to wire multiple lights to one switch is to connect all of them directly to the switch in a “home run” configuration.
Also to know is, How do I wire a second light to an existing switch? Make sure the cable you use is the same gauge as the one powering the existing fixture. Connect the new cable to the new fixture by twisting the black wire from the cable to the black wire on the fixture and white cable wire to the white wire on the fixture. Screw a wire cap onto each connection.
Subsequently, question is, How many lights can I put on one switch? Most circuits in a home allow for 15 to 20 amps, so you can safely connect 1400 to 2400 watts of lighting on one light switch. That’s enough for 23 to 40 60-watt bulbs or 280 to 480 5-watt LEDs.
Also, Can I add another light to existing switch?
Installing another light fixture using power from an existing switch is possible if the switch box contains a neutral line.
How many lights should be on a circuit?
The common rules of thumb on circuits (15amp ones anyway) is no more than 10 loads per circuit, and no more than 80% of available current is to be anticipated. Even accounting for ballast losses, 10 single 32 watt bulb strip lights will pull no more than 400 watts.
How do I add a second light to an existing switch?
How can I tell if two outlets are on the same circuit?
If you measure 208-240 volts between the hots (hot should be the smaller straight blade on USA standard household outlets) on two 120 V outlets, they are on two circuits. You can use an extension cord to bring the two outlets within the length of your VOM test leads.
How many lights can you have on a 20 amp circuit?
40 lights
How many outlets and lights can be on one circuit?
One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.
Can I run 2 lights from one switch?
You can do this light switch wiring in one of two ways. The most common is to daisy-chain the light fixtures by connecting them to each other and hooking the first one up to the switch. The other way to wire multiple lights to one switch is to connect all of them directly to the switch in a “home run” configuration.
How many watts can you have on a 20 amp circuit?
2,400 Watts
How many outlets can be on a 15 amp circuit?
10 outlets
How many lights can I put on one circuit?
The main limitation to the number of recessed fixtures you can run at the same time is the rating of the circuit breaker that controls the circuit. Each fixture with a 60-watt incandescent or halogen bulb draws about 1/2 amp, so a 15-amp breaker for a standard lighting circuit would be able to handle 30 of them.
How do I know how many outlets are on a circuit?
– Turn on the lights in every room.
– Make sure every outlet in a room is already powered.
– Turn off the one circuit breaker. …
– See what lights turned off. …
– Test each outlet using an outlet-testing-device compatible with any USA 15 or 20 amp outlet.
How many Christmas lights can be on a 15 amp circuit?
Determine Maximum Load No matter which light style you string, you should never exceed more than 80% of circuit capacity. This will prevent the need to rectify frequently tripping breakers and help you avoid overheating wires and fire danger. 15-amp circuit: Max 1,440 watts (80% of 1800 is 1,440).
How do you make two switches run one light?
Two separate light switches are able to control a single light through the use of special electrical wiring and a three-way switch. A three-way switch connects the two switches and the light together, creating an uninterrupted, but controllable, circuit amongst all components.
