Electrodes to be redried should be removed from the can and spread out in the oven because each electrode must reach the drying temperature. Electrodes exposed to air for less than one week; no direct contact with water.
250-350F
Thereof, Why electrodes are heated before welding?
Preheating is the process applied to raise the temperature of the parent steel before welding. … To slow the cooling rate of the weld and the base material, potentially resulting in softer weld metal and heat affected zone microstructures with a greater resistance to fabrication hydrogen cracking.
Also to know is, Can welding rods get wet? If exposed to humid air for long periods of time, stick electrodes from opened containers may pick up enough moisture to affect operating characteristics or weld quality. If moisture appears to be a problem, store electrodes from the opened containers in heated cabinets at 100 to 120°F (40 to 50°C).
Subsequently, question is, When should a welder use more preheating time? Preheating in welding is used to help ensure weld quality and reduce the occurrence of cracking and other problems that can result in costly rework. Welding preheat is commonly used before welding steel or steel alloy pipes or plates that are 1 inch thick or more.
Also, What is preheat temperature in welding?
Preheating to 50°C (122°F) with a torch should be sufficient to dry the surface. Most codes only require requalifying the welding procedure if the preheat temperature is “decreased” more than a certain amount (e.g. 100°F) over that qualified.
Why does 7018 need to be heated?
The 7018 electrode is a low-hydrogen rod, which means it doesn’t tolerate moisture in its flux. … On top of that, a light bulb won’t emit enough heat to keep welding electrodes at the proper temperature.
Can you dry out welding rods?
Using longer drying times or higher temperatures can easily damage the electrodes. For drying, remove the electrodes from the container and spread them out in the furnace because each stick electrode must reach the drying temperature.
What temperature should welding rods be kept at?
At no time should these classes of electrodes be stored in an oven above 130°F. The instruction, “Dry at Room Temperature” in the table signifies that the humidity should be below 70% and the temperature should be within the limits 40°F to 120°F.
What is the purpose of preheating and interpass heating?
Preheat is the temperature to which the surfaces to be welded together are heated, before welding commences. Interpass temperature is the temperature at which subsequent weld runs are deposited.
What is preheat in welding?
Preheating is the process applied to raise the temperature of the parent steel before welding. … To slow the cooling rate of the weld and the base material, potentially resulting in softer weld metal and heat affected zone microstructures with a greater resistance to fabrication hydrogen cracking.
How do you dry out damp welding rods?

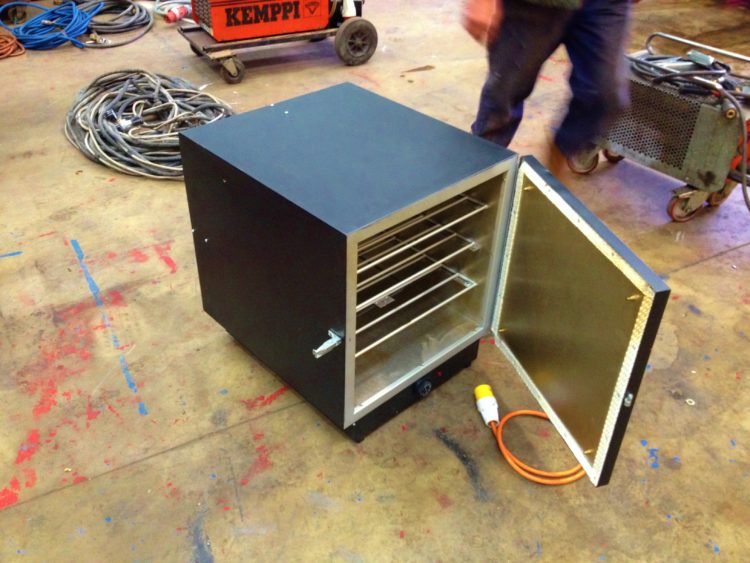

What does a welding rod oven do?
A welding rod oven is a device used to store and bake welding electrodes. After opening the hermetically sealed package they come in, welding electrodes are exposed to air and can start absorbing water.
Why do welders need preheating?
Preheating is the process applied to raise the temperature of the parent steel before welding. … To slow the cooling rate of the weld and the base material, potentially resulting in softer weld metal and heat affected zone microstructures with a greater resistance to fabrication hydrogen cracking.
How do you store 7018 rods?
Re: 7018 storage Its per code you need to keep them in an oven, structural code I believe. Since you are not doing structural code type work, you don’t have to worry about it. That’s where it comes from. Any effort you make to keep them dry and such is not going to hurt them, it will only make it better.
What temperature should welding rods be stored at?
At no time should these classes of electrodes be stored in an oven above 130°F. The instruction, “Dry at Room Temperature” in the table signifies that the humidity should be below 70% and the temperature should be within the limits 40°F to 120°F.
What is the purpose of preheating?
Preheating, a crucial step in many welding applications, slows the rate of cooling in a finished weld, lowers the amount of hydrogen in it, and reduces the risk of cracking.
How do you calculate interpass temperature in welding?
Accepted method of controlling the interpass temperature is to use two temperature indicating crayons. A surface applied temperature indicating crayon (often referred to by the trade name Tempilstik) melts when the material to which it is applied reaches the crayon’s melting temperature.
