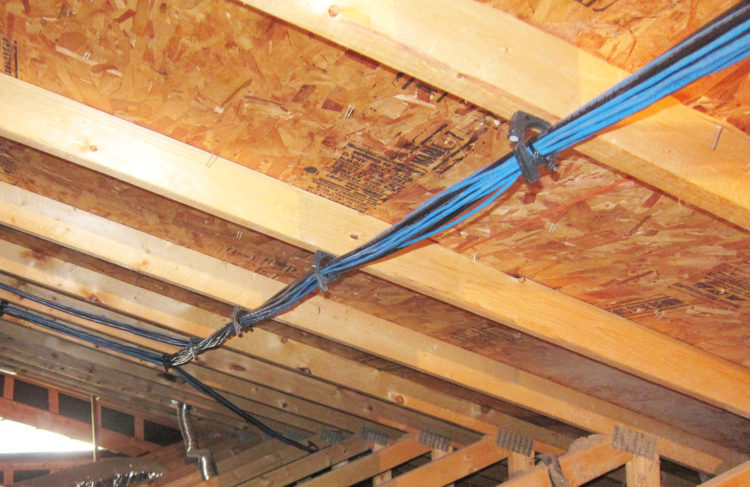

At some point, you may need to run the cable in the ceiling or wall. Make sure the cable doesn’t touch the ceiling tiles and do not run the cable over electrical conduit, water pipes, or any other pipes, as it is unsafe and may not pass inspection. Do not run any data cable beneath the floor.
Thereof, How do I pass Ethernet cable through wall?
Also to know is, Where is plenum rated cable required? Most building codes mandate that only plenum-rated (CMP) cable be used in “plenum spaces” and air ducts. For large public spaces like hospitals, schools, and airports, building codes in some cities and towns mandate plenum cable even for non-plenum spaces.
Subsequently, question is, Does Ethernet cable need to be in conduit? “Exterior-grade Ethernet cables are waterproof and thus do not require conduit.” If I run parallel to electric, how much separation do I need, and do I go UTP or STP? “5-20cm (6-8 inches) and at least that far away from power lines or other sources of electrical interference.”Jul 4, 2013
Also, How do you run a wire through the ceiling without an attic?
How do I run an electrical wire without attic access?
If there is no access to an unfinished space to run the wires in such as with a first floor ceiling or perpendicularly across a stud wall, I use a 4 or 5 inch hole saw centered on each joist/stud. Cut out your circle of drywall which will leave you with access to either side of the joist/stud.
How do you run an exposed wire?
There is, however, an approved way to run wiring across exposed surfaces. In these situations, the proper wiring method is to mount an approved rigid conduit across the framing members or wall, then run individual THNN conductor wires inside the conduit. Such wiring is very well protected against physical damage.
How do you hide an Ethernet cable in the wall?
– Hook Cables at the Back of Furniture. This hack works best with hanging TV or ethernet cables. …
– Hide Wires In a Basket. …
– Zip Tie Cords. …
– Wrap Cords with Jute Rope Extension. …
– Utilize Docking. …
– Adopt the Labeling. …
– Conceal Router in a Storage Box. …
– Tissue Roll Cord Holder.
Can I plug Ethernet cable into wall?
If you are at home, most likely you cannot. You will notice that at home, you will NOT have any plug that allow you to plug in Ethernet cable. Your home plug are either “Cable jack” (from Cable TV provider) or DSL Phone jack (from Phone Service Provider). You would need a modem router, that can connect to those jack.
How do you run Ethernet cable through walls?
Does exposed wiring have to be in conduit?
In a household wiring system, most of the circuit wiring is in the form of insulated cable that is run inside wall, floor and ceiling structures without conduit. Conduit typically is used only where circuit wires are exposed (or surface-mounted or buried) and therefore need protection from damage or moisture.
Can Ethernet cables catch fire?
Probably not. The voltage used by Ethernet is usually insufficient to cause a fire. While anything can potentially cause a fire, a worn Ethernet cable should be a low-level concern.
Is an exposed wire dangerous?
It may cause injury due to electrical shock, fire or electrocution. A plug or electrical cord should not have exposed wiring. Exposed wires present a danger of electric shock or electrocution. Using an open front plug poses the risk of contact with live wires when plugging it to a electrical outlet.
Why would you use plenum cable?
Why Use Plenum Cable? Plenum rated cable has a special insulation that has smoke and low flame characteristics. It is mandated to be installed in any “air handling” space. For instance, most large office buildings use the ceiling to return air to the AC unit.
How do I know if I have a plenum ceiling?
If the ceiling space is used for air handling, it is a plenum space. However, if there is a duct connected to the vent for return air, as in the picture on right, it is a nonplenum space.
How do I use Ethernet port on wall?
Just plug one into your wall in the room with your router, connect it to your router with an Ethernet cable, and plug the other one in the wall next to your far away devices. Note that you need to plug them right into the wall; you can’t plug them into a power strip or extension cord.
What is the purpose of plenum cable?
Plenum rated cable has a special insulation that has low smoke and low flame characteristics. Plenum cable is mandated to be installed in any “air handling” space. For example, most large office buildings use the ceiling to return air to the AC unit.
