If a 6 volt ignition system is converted to 12 volts and a Delco style 12 volt coil with an internal resistor is installed as part of the conversion, no external resistors are required. The 12 volt battery must be connected so the negative (-) battery terminal is connected to ground.
– Disconnect your engine’s main negative battery cable with a wrench.
– Pull the main ignition coil wire, the one that leads to the distributor, off the coil.
Thereof, How many ohms Should a coil read?
2 ohms
Also to know is, How do you check the resistance of a coil? – Set the multimeter to measure resistance (ohms).

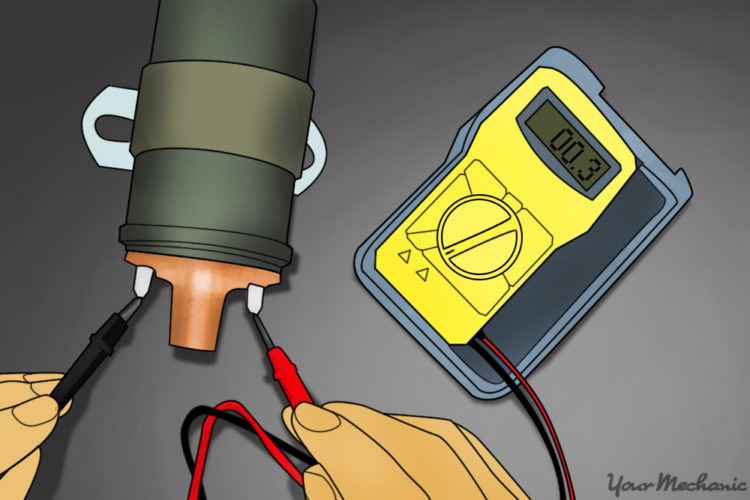

– Connect the positive lead to the positive terminal of the coil.
– Connect the negative lead to the negative terminal.
– A typical value would read 0.4 – 2 ohms.
Subsequently, question is, How do you read coil ohms with a multimeter? Turn your multimeter dial to the lowest ohms setting, usually 20 or 200. Place the two probes on the atomizer your coil is in, one probe on the positive pin (the one in the middle of the 510 connection), and the other on the outside 510 threading, to get the total resistance of the coil in the atomizer.
Also, How do you test an ignition coil with a multimeter?
Connect your multimeter to the positive terminal or pin of your coil, and to the high output terminal that goes to the spark plug. Most ignition coils should have a secondary resistance falling somewhere between 6,000 to 10,000 ohms;however, refer to manufacturer specifications for the correct range.
How do you check coil resistance with a multimeter?
Connect your multimeter to the positive terminal or pin of your coil, and to the high output terminal that goes to the spark plug. Most ignition coils should have a secondary resistance falling somewhere between 6,000 to 10,000 ohms;however, refer to manufacturer specifications for the correct range.
How do you calculate the resistance of a coil?
Measure the values of current and voltage from ammeter and galvanometer respectively. Convert the values obtained in Amperes and volts(because the values could be in milliamps any millivolts). The ratio of voltage (volts) and current (amperes) would be the resistance of the coil in Ohms.
How can you tell if an ignition coil is bad?
– Illuminated Check Engine Light. With most modern vehicles, a faulty ignition coil is enough to turn on the Check Engine Light. …
– Misfiring Engine. If an ignition coil is not working properly, your engine will likely misfire. …
– Hard Starts. …
– Worsening Gas Mileage. …
– Diminished Power. …
– Sudden Backfires.
What are the signs of a bad ignition coil?
– Your Car Won’t Start.
– Your Check Engine Light Comes On.
– Your Engine Stalls.
– Decreased Fuel Economy.
– You See An Oil Leak.
– Backfiring & Poor Catalytic Converter Performance.
– You Are Overdue For New Spark Plugs.
How do you test an ignition coil?
Connect your multimeter to the positive terminal or pin of your coil, and to the high output terminal that goes to the spark plug. Most ignition coils should have a secondary resistance falling somewhere between 6,000 to 10,000 ohms;however, refer to manufacturer specifications for the correct range.
Does a 12 volt coil need to be grounded?
The coil does not need an electrical ground, but it does need a thermal ground for heat dissipation, meaning that the “ground” could be compromised by paint etc. and still serve its purpose as a thermal point of dissipation.
Do I need a resistor for my coil?
Pete, most coils need the resistor Although that’s not the case with EVERY coil, most do require it. The resistor limits the CURRENT going through the coil. Also, if you have a points ignition, it lengthens the life of the points greatly.
How many ohms Should a coil wire have?
Use the digital multimeter, set to Ohms Ω. Simply attach or hold a meter probe on each end of the cable and read the total resistance on the meter. The Society of Automotive Engineers suggests the maximum resistance should be 12,000 ohms-per-foot. However, some OEMs have recommended different maximum resistances.
Can an ignition coil get weak?
Most ignition coils are long lasting and reliable, but a weak coil you can be the cause of under-hood havoc. You cannot operate a car smoothly without delivering high voltage to the spark plugs to ignite the air-fuel mixture. Most coil failures result from secondary winding defects.
How do you test a single ignition coil?
The only safe way to test for spark is to use a spark plug tester tool. If a coil problem is suspected, measure the coil’s primary and secondary resistance with an ohmmeter. If either is out of specifications, the coil needs to be replaced. A coil can be easily bench tested with a digital 10 megaohm impedance ohmmeter.
How many volts should an ignition coil put out?
The role of the ignition coil is to multiply battery voltage into high voltage. Following Ohm’s law for the conversion of volts to amperes, oil-filled coils generally require 3 to 5 amperes of primary current to produce 20,000-30,000 volts of secondary current.
How can you tell if a coil wire is bad?
Symptom 1. If the engine stops and starts erratically while driving, or if it cuts out altogether and refuses to restart, you may have a bad wire between the coil and the distributor. Constant movement, caused by engines vibration and the wire’s tendency to flex slightly, fatigues the wire’s central core.
