National Electrical code does not require a door to cover breaker handles. It does require a cover that prevents access to electrified parts, which must have all openings closed. A panel without a door is not a violation, but a panel without a cover is.
Table of Contents
READ ALSO
Thereof, Can an electrical panel be located outside?
3 Answers. They are almost always on an exterior wall. In some areas they are on the outside of the exterior wall – outside your house. Most inspectors would tell you that a garage (interior or exterior wall) or in the basement exterior (right where the line comes in) are the two best locations.

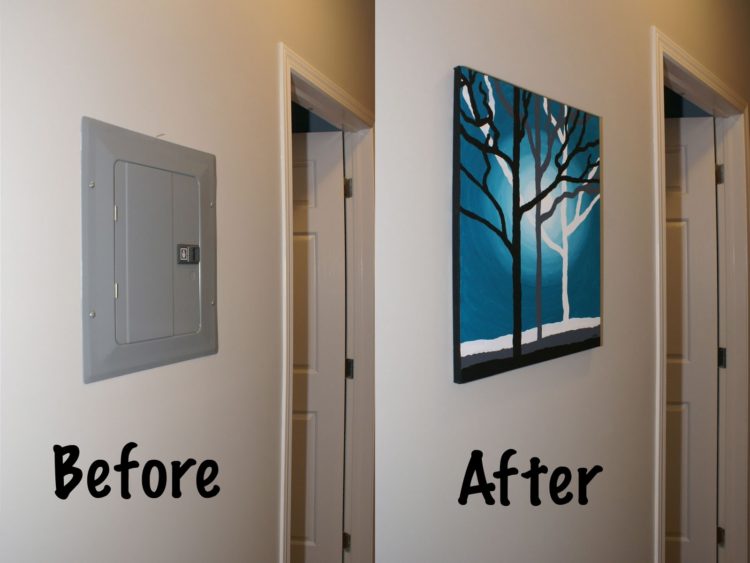

Also to know is, How can I hide my electrical panel?
Subsequently, question is, How much space do you need around an electrical panel? Codes and Standards Related to Electrical Panels For equipment serving between 120 volts and 250 volts, the regulations require a mini- mum of three feet of clearance. The width of the working space in front shall be 30 inches minimum or width of the equipment. The OSHA standard (29 CFR1910.
Also, Can you put a breaker box outside?
If you put it outside, the box needs to be rated for that. Be aware that breakers are really thermal devices. So make sure you put it in the shade. Ideally, not on the southern or western exposures.
Can an electrical panel be located in a laundry room?
According to the Meriwether Lewis Electric Cooperative, electrical panels must have an open space 30 inches wide and 36 inches deep for overall electrical and fire safety. These panels can be placed in a laundry room, as long as appliances and piping do not infiltrate the open space rule.
Where can a breaker box be located?
While every home is different, circuit breakers are generally located in low-traffic areas of the home, such as a basement, garage, or utility closet. If you live in an apartment, your circuit breaker may be in a more central location, such as a hallway or laundry area.
Can you enclose an electrical panel?
You can definately enclose the panel in a closet, just not in a clothes closet. As long as the door to the closet provides sufficient working clearance (30×36″ as stated) I wouldn’t see a problem with the closet not being a full 36″ deep.
Where can an electrical panel be located?
In summary, electrical panels can be located anywhere other than in bathrooms, clothes closets, above steps of a stairway or in fire-rated partitions or area separation walls as long as the proper working clearances are provided per NEC 110.26, and the enclosure type is suitable for the application (i.e. NEMA 3R if …
How do you reset an outside breaker box?
Can an electrical panel be outside?
A panel might be mounted on the outside of the house, either separate from or combined with the electric meter, or on an inside wall, behind the meter. …
Can a breaker box be outside?
If you put it outside, the box needs to be rated for that. Be aware that breakers are really thermal devices. So make sure you put it in the shade. Ideally, not on the southern or western exposures.
How close can a washing machine be to an electrical panel?
1 Answer. Yes you can place the washer next to the electrical panel. As long as the door on the panel can open 90 degrees and there is a total width of 30″ the panel it is legal. The working space 30″ for the panel can be from 1 edge extending 30 inches beyond the other side (or actual width if the panel is wider).
What is the minimum working space around electrical equipment?
To be on the safe side, the working space and space around electrical equipment should always be clear per 110.26(A), if possible. As a basic rule, there should be at least 3 feet of space in front of all equipment with a 30 inch width as well as 6½ feet of headroom space.
Can a breaker box be in a bedroom?
Rooms. Circuit breaker boxes may not be installed in bathrooms, powder rooms, clothes closets or in any room where there is insufficient space for a worker to access and work on the box. The space immediately in front of the box must be clear, and the box must be accessible.
How far can the electrical panel be from the meter?
about 15 feet
How do you open a breaker box outside?
