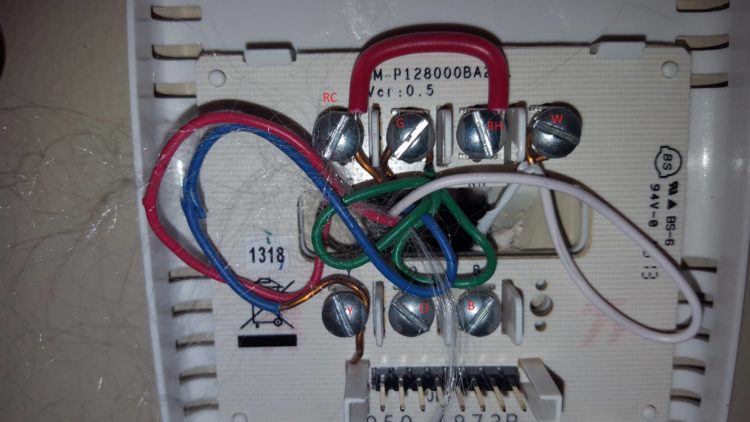

The RED wire or 24 Vac power lead is connected straight to the RC & 4 terminals. Some thermostat units have a dedicated R terminal and it jumpers to the RC, RH or 4 terminals internally. The W, Y and G terminals should be pretty straight forward on most all types of thermostat’s.
The Rh wire connects to your heating system as opposed to your cooling system. This wire may be red without an “H” attached to it, depending on if you have a dual transformer setup. The Rh wire connects to the RH terminal on your thermostat.
Thereof, Is RC the same as C wire?
Though it is a common notion, it may be incorrect to state that the C-wire powers the thermostat. Typically, the wires that give the power supply (usually termed as the ‘hot’ wires) are marked Rc (for cooling) and Rh (for heating). … ‘ If your system has a common wire, it will be marked ‘C’ at most times.
Also to know is, What is RC wire on thermostat? Red or “Rc” Wires Red wires, specifically Rc wires, are responsible for 24-hour volt AC power from your transformer. Rc wires are only for air conditioning systems or dual transformer systems. … These wires only connect to your cooling system. Rc wires connect to the RC terminals on your thermostat.
Subsequently, question is, Where does red wire go on thermostat? Red or “Rc” Wires Dual transformer systems refer to a setup with a cooling and heating transformer. These wires only connect to your cooling system. Rc wires connect to the RC terminals on your thermostat.
Also, Is Rh the same as R on thermostat?
R , Rh , and Rc are all the same, but not. In general terms, the R terminal is where you connect the signal voltage source. … This allows current to flow from “into” the R terminal and “out of” the appropriate signal terminal ( W , Y , etc.) of the thermostat.
What is RC and RH on thermostat?
RC: The RC terminal is the 24-volt cooling power supply. RH: The RH terminal is the 24-volt heating power supply. (Note: The RC and RH terminals are jumpered together in a four-wire heat/cool system and a single-stage heat pump system, but not in a five-wire heating/cooling system.)Jul 15, 2020
Does R wire go to RH or RC?
Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go.
What are RH and RC wires?
R, Rh, Rc. In some systems, both the heating and cooling systems use their own signal voltage. In these cases, the signal wire from the heating system will be connected to R or Rh , while the signal wire from the cooling system will be connected to Rc .
What is an Rh wire?
The Rh wire, another type of red wire, is also responsible for 24-hour volt power from your transformer. The Rh wire connects to your heating system as opposed to your cooling system. … The Rh wire connects to the RH terminal on your thermostat.
What are the 5 thermostat wires?
– White. The white wire connects to your heat.
– Yellow. The yellow wire connects to your compressor.
– Green. The green wire connects to the fan.
– Orange. This wire connects to your heat pump (if applicable).
– Red (C). …
– Red (H). …
– Blue.
Should RC and RH be connected?
The RC wire (C for Cooling), if connected properly, controls your HVAC cooling. The RH wire (H for Heating) provides power to your HVAC heating. If you are planning to replace your home thermostat, it will be essential that you know which wires to connect to the right terminals in your thermostat.
What is the red wire on a thermostat?
Most thermostats have a Red wire that is the power wire that usually connects to R & RC terminals of the thermostat, a Green wire that energizes the Fan relay, connected to the “G” terminal on the thermostat, a Yellow wire that energizes the outdoor unit’s contactor, (if you have air conditioning) and a white wire that …
What does RH and RC mean on a thermostat?
Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat. Yellow/Y is the AC compressor. White/W is the Heating element.
What is RC on Honeywell thermostat?
R – 24vac (Heating transformer) Rc – 24vac (Cooling transformer)Nov 3, 2020
Does red wire go to RH or RC?
Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat.
Are R and RH wires the same?
R , Rh , and Rc are all the same, but not. In general terms, the R terminal is where you connect the signal voltage source. … This allows current to flow from “into” the R terminal and “out of” the appropriate signal terminal ( W , Y , etc.) of the thermostat.
What color is the RC wire on a thermostat?
Marking Wire Color Code Description
——- ————— ————————————–
Rc Red Power from cooling, 24 Vac transformer
Rh Red Power from heat, 24 Vac transformer
C Black/Blue Common of 24 Vac transformer
W White Primary heat cell relay
