Residential Kitchen In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.
The NEC doesn’t require GFCI protection for clothes washing machines specifically, but it does for “Laundry Areas.” … If the answer is “yes”, then you have your answer- the clothes washing machine will be GFCI protected, because all 120-Volt receptacles are to be GFCI protected in laundry areas, per the 2017 NEC.
Thereof, Where should GFCI outlets be installed?
The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. In laundry rooms and utility rooms, GFCIs should be installed on outlets within six feet of sinks, washing machines, and water heaters.
Also to know is, Why does my washer trip the GFCI? To narrow this problem down, there are three places that could be causing the GFCI to trip, a malfunction in the washing machine, a problem with the downstream wiring (aka load side of the GFCI), or the GFCI outlet itself.
Subsequently, question is, Does a dishwasher require a GFCI? GFCI protection is not required for receptacles serving appliances like dishwashers, or convenience receptacles that do not supply countertop surfaces. Receptacles installed within 6 ft of the outside edge of a wet bar sink must also be GFCI-protected [210.8(A)(7)].
Also, Does a refrigerator require a GFCI?
In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.
Does a washing machine require a GFCI outlet?
The NEC doesn’t require GFCI protection for clothes washing machines specifically, but it does for “Laundry Areas.” … If the answer is “yes”, then you have your answer- the clothes washing machine will be GFCI protected, because all 120-Volt receptacles are to be GFCI protected in laundry areas, per the 2017 NEC.

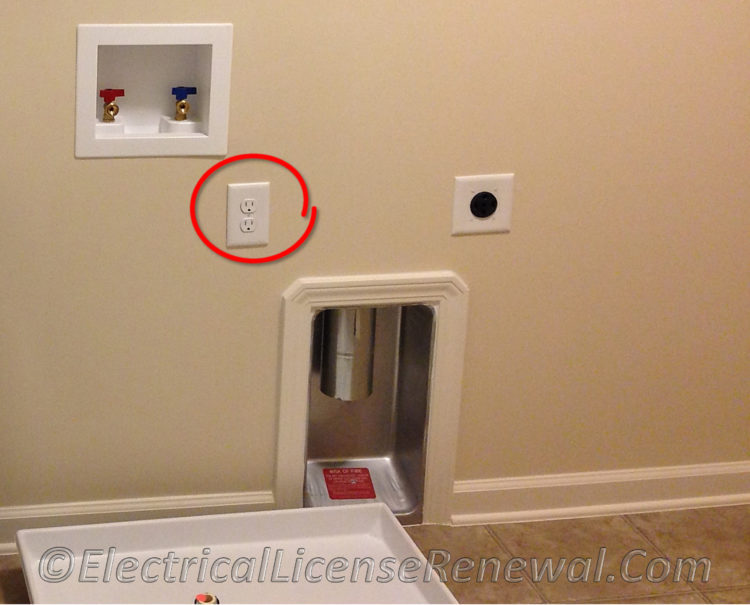

Do you need GFCI in laundry room?
The NEC requires GFCI (ground-fault circuit interrupter) protection for all standard receptacles serving laundry areas. This includes the 20-amp designated receptacle for the washer (and gas dryer, as applicable) and any general-use receptacles. GFCI protection is not required for a 30-amp electric dryer receptacle.
What appliances require GFCI?
The NEC mandates GFCI protection in many areas of the home: bathrooms, garages, outdoor receptacles, crawl spaces, basements, kitchens and anything within six feet of a sink or water source. While that may seem like a lot, the entirety of a home is not covered.
What kind of outlet do I need for a dishwasher?
Dishwasher – A large range of dishwashers use the standard current of 110 volts. It is best to use an outlet that has a Ground Fault Interrupter or GFI. This will provide an extra precaution if the outlet gets wet. A GFI is designed to trip or disconnect power to prevent electrocution.
When would you use a GFCI outlet?
A GFCI is required in any areas with an increased risk of shock due to electrical hazards, such as water. In order to protect you from electrical hazards, a GFCI monitors electrical current, turning off an electrical circuit when it detects an imbalance – current flowing along an unintended path.
How do I install multiple GFCI outlets?
When you need to wire multiple GFCI outlets such as in a kitchen or bathroom you have a couple of options. To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. This provides the same protection as having a GFCI at each location.
Where should dishwasher outlet be?
The receptacle for a built-in dishwasher shall be located in the space adjacent to the space occupied by the dishwasher.
How do I stop my refrigerator from tripping the GFCI?
– To help prevent an existing GFCI from tripping, a snubber circuit (resistor and capacitor) and/or surge protector can be added to reduce current spikes. …
– Newer GFCI’s are supposed to be less susceptible to false tripping.
How many outlets can one GFCI protect?
There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.
Should a washing machine be plugged into a GFCI outlet?
Homeowners may mistakenly believe that a washing machine, being a water-using appliance, requires a GFCI outlet. In fact, GFCIs are not required if you only have a washing machine in your laundry room. If, however, there is a sink within six feet of the washing machine outlet, a GFCI outlet is required.
Does a dining room have to be GFCI protected?
The substantiation regarding the use of appliances in dwelling unit dining rooms is the reason this requirement is in the NEC. Again, remember that the only receptacle outlets requiring GFCI protection in dwelling unit kitchens are those which are installed to serve kitchen countertop surfaces.
Do refrigerators have to be GFCI protected?
In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.
