The thermostat uses 24 volt power coming from the furnace or air conditioner. If there is no power to this wire, the thermostat will not be able to send a signal to the HVAC system to turn it on.
Table of Contents
READ ALSO
– Blue or Black – C – Common wire, may be unused by your existing thermostat. …
– Red – R – 24VAC power from the furnace’s transformer.
– Red – Rc – 24VAC (dedicated to heat call)
– Red – Rc – 24VAC (dedicated to cooling call)
– Green – G – Fan.
– White – W – Heat.
– Yellow – Y – Air conditioner.
Thereof, What color wire goes where on a thermostat?
If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat. Yellow/Y is the AC compressor. Green/G runs the fan. Blue or Black/C should be a ground and will be used by both Rh and Rc, and apparently your thermostat.
Also to know is, How do you wire a thermostat to a furnace?
Subsequently, question is, Does thermostat need electricity? But for all its mystery, the thermostat is actually a very simple device. At its most basic level, it’s simply a temperature-sensitive switch. Most thermostats that control central heating equipment, including furnaces, boilers, and heat pumps, are low-voltage thermostats that typically use 24 volts of electricity.
Also, Can you override the thermostat?
If your thermostat isn’t offering what you need and is locked up, you can override its system to get to the perfect temperature for your needs.
How do I wire a 2 wire thermostat to my furnace?
Strip the red and white wires back about 1/4 inch at both the thermostat and the furnace ends. Connect the white wire to the “W” terminal on the furnace and thermostat. Repeat this for the red wire, connecting it to the “R” terminal on both the furnace and thermostat.
What color wires go where on a furnace?
The green wire underneath your thermostat connects to the fan of your furnace or air handler. It terminates at the air handler or furnace. The green wire connects to terminal G on your thermostat.
What happens if you wire a thermostat wrong?
Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself. Dual-fuel systems, a poorly located thermostat, whole-home humidifiers, or incorrect wiring can make the installation of a thermostat a longer, more frustrating, and more complicated …
How do I bypass the thermostat on my furnace?
What do furnace wire colors mean?
Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat. Yellow/Y is the AC compressor. Green/G runs the fan.
How do you read a furnace wiring diagram?
Can a thermostat work without batteries?
If the power fails and the digital thermostat goes out, your energy-saving settings will be lost, unless your thermostat has battery backup. Without that battery backup, many homeowners who experience power outages regularly could get frustrated and stop reprogramming their thermostat.
How many wires should my thermostat have?
4 control wires
Will a furnace run without a thermostat?
Electrical Components Within Your Furnace But that doesn’t mean you could simply crowd around the furnace in an event of an emergency; there are other important electrical components as well! Thermostat controls: Without power, there’s no way for your thermostat to communicate to your furnace that it’s time to turn on!Feb 5, 2018
How many thermostat wires do I need?
5 wires

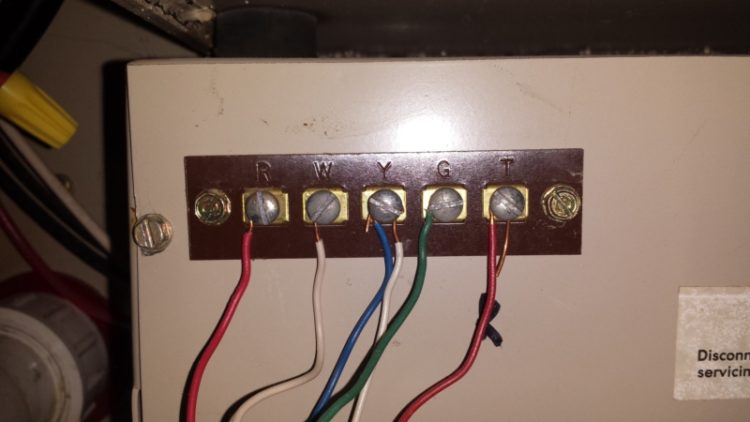

Where do the thermostat wires go on the furnace?
Thermostats use 24 volts AC from a transformer to control a furnace. The transformer steps down 120 volts to the 24 volts the thermostat needs, and sends out the 24 volts on two wires. The two 24 volt wires go to the R terminal and C terminal inside the thermostat.
Why is there no power going to my thermostat?
The power is out or a circuit breaker has tripped The power loss could also be the result of a tripped circuit breaker that powers the air conditioner or heater. Many thermostats run on low voltage sent from the transformer on the HVAC system; if the transformer loses power, so will the thermostat.
