Thereof, How do I test my electric fence ground?
Connect one lead of the digital voltmeter to a 12-inch metal stake driven into the ground 3 feet away from the last fence energizer ground rod. Connect the second lead to the ground rod furthest from the energizer. The voltage reading should ideally be zero or no more than 200V.
Also to know is, How does a fence charger work? Electric fences are designed to create an electrical circuit when touched by a person or animal. A component called a power energizer converts power into a brief high voltage pulse. One terminal of the power energizer releases an electrical pulse along a connected bare wire about once per second.
Subsequently, question is, How do I test my Energizer electric fence? – Turn off the energiser.
– Disconnect the earth or wire going to ground (often green in colour).
– Disconnect the live fence wire (often red in colour). …
– Turn the energiser back on and pick up your fence tester. …
– If there is a very low voltage (under 1500v) or no voltage, then the energiser has a problem.
Also, How do you test an electric fence?
How do I test my electric fence earth?
Lay an iron bar across the wires, making a direct connection from the fence line to the ground. Then place your volt meter on the last earth rod in the line to see if there is any voltage between the earth rod and the ground. No reading to under 500 volts – move on to Checking your Fence Connection.
How do you make an electric fence tester?
How many volts should an electric fence have?
10,000 volts

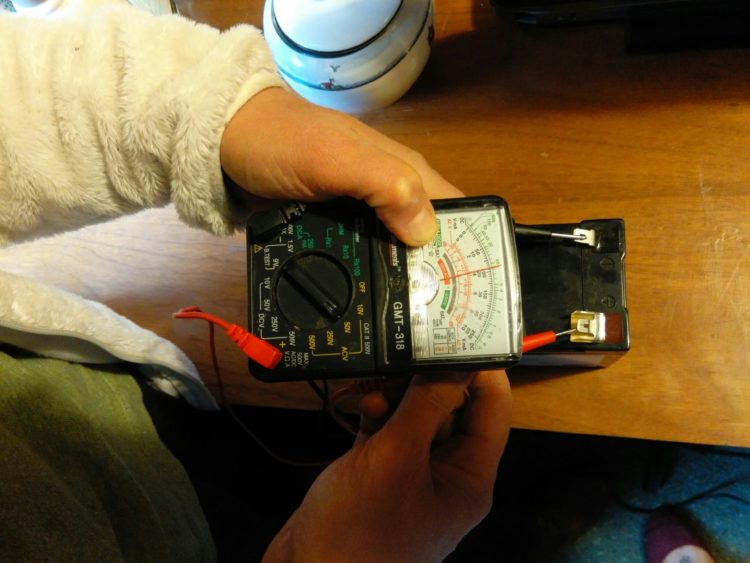

Can you check an electric fence with a multimeter?
The Digital Voltmeter can help you locate the source of a short by measuring the voltage in the fence line. You can also use the Neon Fence Tester, although it is not as accurate. … You will see a reading on the screen – on a good electric fence line this should be in excess of 6,000 volts.
Why is my fence charger not working?
If there is high voltage (same as when purchased), the problem is with the fence. In this case, it could be a broken wire, a bad splice joint, or anything that is not allowing voltage through. If the charger is clicking and there is low voltage, or if it turns on and won’t click, there is a problem with the charger.
How do you test if a fence is electric?
How do you check a fence charger with a multimeter?
Place the voltmeter on one of the fence wires so that the metal measurement slot makes solid contact with the wire. If you are using a voltage meter with a red and black lead, plug the black lead into the ground and touch the wire with the red lead. Read the display on the voltmeter.
Will electric fence work without ground?
If your fence is not properly grounded, the shock may not be as powerful or even felt at all! Because completing the circuit and grounding are critical for the shock to be felt, birds sitting on a fence line or power line feel no shock. Since they are not grounded in any way, the circuit is not completed.
Can you bury an electric fence ground wire?
Dry or barren ground is a poor conductor of electricity. … A ground wire buried along the length of the fence line and attached to the T-posts extends the reach of the ground system. Voltage has to travel only a short distance to return to ground. The ground wire is best buried 4-6″ below ground level.
How do you find a fault in an electric fence?
How do you test an electric fence with a multimeter?
Place the voltmeter on one of the fence wires so that the metal measurement slot makes solid contact with the wire. If you are using a voltage meter with a red and black lead, plug the black lead into the ground and touch the wire with the red lead. Read the display on the voltmeter.
How do you test if an electric fence is working?
To test the fence line, start reading the power close to the energizer. You should expect readings above 2000 volts for horses and above 4000 volts for all other livestock. If readings are good close to the energizer, move down the line taking readings between every other fence post.
