You cannot increase that pressure by removing unneeded gas pipe. Instead, you can try having the gas company adjust or replace your regulator. If you’re measuring the pressure while gas is flowing, you might have lines that are too small, long or bendy. You might also have a gas meter that’s undersized or defective.

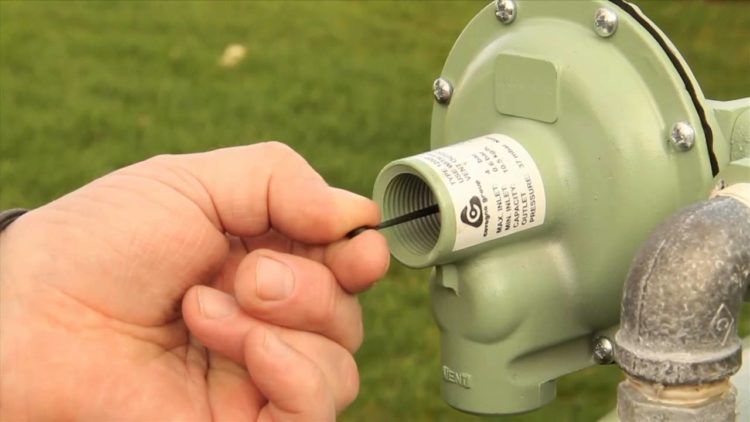

Pull off the regulator cap. There is a spring and an adjusting screw underneath. Usually turning the screw clockwise increases outlet pressure but the direction of adjustment is marked on the regulator. Turn the screw a little to make a small pressure increase adjustment as seen on the pressure gauge.
Thereof, What should natural gas pressure be?
A common operating pressure for natural gas appliances is around 7 inches of water column (WC) or re-stating this in equivalent measure, that’s 14.9 millibars or 1743 Pascals or Pa, or about 0.25 psi (pounds per square inch) or about 4 ounces of pressure per square inch.
Also to know is, What is considered low pressure natural gas? Yes and No. A typical residential gas system is a low-pressure system, meaning that the home is supplied with a gas pressure around 7 in. w.c. (inches of water column). The piping must be sized sufficiently enough so that the pressure drop is a half an inch of water column or less, when all the gas appliances are on.
Subsequently, question is, How do I check my natural gas pressure? Any and all gas piping must be tested by a “proper pressure drop test”. This requires the use of a manometer or water column gauge. A very small amount of pressure is inserted in the piping system (12 to 14 inches of water column), the system is then monitored to check for pressure drop.
Also, How is natural gas pressure measured?
Gas pressure can be measured in two ways: pounds per square inch (psi) or Inches of Water Column (in. w.c.). … This pressure is around 2 psi. Inches of Water Column is typically used to measure low-pressure gas systems, which is what feeds most appliances.
What does WC mean in gas pressure?
Pounds per square inch
How is natural gas line pressure measured?
Gas flowing from higher to lower pressure is the fundamental principle of the natural gas delivery system. The amount of pressure in a pipeline is measured in pounds per square inch.
What PSI is medium pressure gas?
In residential or commercial settings, medium pressure natural gas is often considered anything between 1/2 PSI (14″ W.C.) and 5 PSI. Historically almost all residential and most commercial gas systems were designed around the use of low pressure.
What does pressure drop mean for natural gas?
Pressure drop is the amount of line pressure that is permanently lost as gas passes through an instrument in the gas line. This pressure loss is due to the frictional resistance of the components the gas touches.
How much psi do you need to pressure test a gas line?
Ideal for performing pressure and leak checks on natural gas and propane piping systems. Pressurize your system to a maximum of 15 psi and observe the needle. If the needle drops, that indicates that there is a leak in the system.
How do you check gas pressure with a manometer?
What is WC in gas pressure?
This refers to the amount of pressure it takes to raise a column of water 1 inch. There are 27.7 inches of water column (wc) pressure in 1 PSI of pressure. So 7″wc is about 1/4 PSI. This is the normal pressure that household natural gas is delivered.
What is considered high pressure natural gas?
Natural gas that is transported through interstate pipelines travels at high pressure in the pipeline, at pressures anywhere from 200 to 1500 pounds per square inch (psi).
How can I increase gas pressure?
– An increase in the number of gas molecules in the same volume container increases pressure.
– A decrease in container volume increases gas pressure.
– An increase in temperature of a gas in a rigid container increases the pressure.
How do you increase the pressure of a natural gas meter?
Remove the cap from the regulator. There is an arc and an adjustment screw under it. Normally, turning the screw in the direction of the hands of a clock increases the output pressure, but the adjustment direction is marked on the regulator.
How much does it cost to pressure test a gas line?
Gas Line Pressure Test Costs This is typically a plumbing service call which will range from $75 to $150. In some areas, code requirements are more stringent and will need a 12 or 24-hour test. Expect to pay up to $500 for these longer tests. New construction or additions usually include this in the installation price.
How do you measure gas pressure?
A manometer can be used to measure the pressure of a gas. The (difference in) height between the liquid levels (h) is a measure of the pressure. Mercury is usually used because of its large density.
