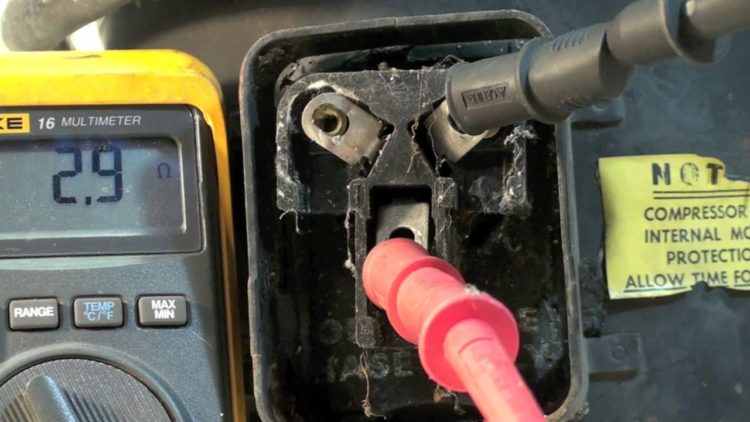

If the compressor passes the above tests, take a multimeter set to R x 10,000 (10K) and check each winding to ground. You should have an infinite OL resistance to ground. A shorted motor will read 0 ohms across windings, to ground, or both. If it is both, you will need to replace the compressor.
Thereof, How do I know if my AC compressor is bad?
– A Lack of Hot Air Being Released Outside. …
– Loud or Strange Noises From the Unit. …
– Failure of the Compressor to Turn On. …
– Circuit Breaker Tripping. …
– Leaks Around the Air Conditioning Unit. …
– Warm Air Instead of Cool Air Being Delivered to the House. …
– Reduced Airflow.
Also to know is, How do I know if my AC compressor or clutch is bad? – The pulley that’s attached to your AC compressor may freeze and make a squealing sound when you turn your AC system on.
– Your AC compressor clutch may struggle to engage your AC system’s compressor when your AC system is turned on.
Subsequently, question is, How do I test my AC compressor? – Disconnect power.
– Remove the top of the outdoor condensing unit.
– Unplug the 3-prong plug on the compressor.
– Set your multimeter to ohms.
– Measure and record the resistance (ohms) measurement of each winding.
Also, How do you check the resistance on a compressor?
With the multimeter set to R x 1 scale (ohms), measure the resistance between the run and start wires; start and common wires; and run to common wires. There should be a measurable resistance through each set of wires. The lowest resistance will be found between the run(R) to common(C).
Can you replace the clutch on an AC compressor?
Yes you can just replace the clutch pulley on the a/c compressor. The issue that you may have is the pulley bearing seized up and may have spun on the front of the compressor nose cone and will damage it. … You may need to replace compressor.
What are the symptoms of a bad AC clutch?
– Cabin temperatures higher than normal. One of the first signs that a compressor may be having trouble is the AC no longer blowing as cold as it once did. …
– Loud noises when the compressor is running. …
– Compressor clutch is not moving.
How many ohms should a compressor have?
The lowest reading should be below 10 ohms (this is the run winding). The second highest reading should be about 2-4 times higher than the lowest reading (this is the start winding).
What happens when AC compressor clutch goes bad?
Take a look at a few other things that might occur when your AC compressor clutch goes bad below: The pulley that’s attached to your AC compressor may freeze and make a squealing sound when you turn your AC system on. … Your entire AC system may experience a lack of pressure.
How much does it cost to replace AC compressor clutch?
The average cost for AC compressor clutch replacement is between $610 and $664. Labor costs are estimated between $184 and $232 while parts are priced between $426 and $432.
How do you check a bad AC compressor?
– Disconnect power.
– Remove the top of the outdoor condensing unit.
– Unplug the 3-prong plug on the compressor.
– Set your multimeter to ohms.
– Measure and record the resistance (ohms) measurement of each winding.
How do I know if my AC compressor bearing is bad?
Loud noises when the compressor is running A leaking or worn out bearing will produce a high pitched squealing or grinding sound, while a seizing or seized bearing will produce a grinding noise or a noticeable belt squeal.
What happens when AC compressor goes bad?
1. Cabin temperatures higher than normal. One of the first signs that a compressor may be having trouble is the AC no longer blowing as cold as it once did. A damaged or failing compressor will not be able to properly regulate the refrigerant flow in the AC system, and as a result, the AC will not function properly.
Can you replace just clutch AC compressor?
Yes you can just replace the clutch pulley on the a/c compressor. The issue that you may have is the pulley bearing seized up and may have spun on the front of the compressor nose cone and will damage it. … You may need to replace compressor.
What does a bad AC compressor sound like?
Another potential symptom of a failing AC compressor is loud or unusual noises. … A worn bearing will produce a high pitched squealing or grinding sound, while a seized bearing will produce a grinding noise or a noticeable belt squeal.
Will a bad AC compressor affect the engine?
If your car’s ac compressor goes bad or fails over time, your engine can seize due to the stuck compressor. If you are traveling at high speed on the road or your car shuts off while operating, you no longer have any power steering or brake boosters to easily stop your vehicle.
Can I drive with a bad AC clutch?
You will be fine as long as you don’t need or want AC in your car. Your AC pulley is a free spinning pulley that has a clutch on it. It will spin freely until you turn the air conditioning on. If the clutch doesn’t work properly, you will still be able to drive your car.
