Normally we measure draft at two locations: over the fire or in the combustion chamber where typically we may see -0.02 to -0.03 inches of water column pressure, and in the breech or at the stack pipe (properly, the flue vent connector) measured just a few inches above the boiler or furnace top, and before the …
– Remove the flue cap to check for blockages such as debris or birds’ nests.
– Replace and secure the cap tightly to the end of the flue pipe. …

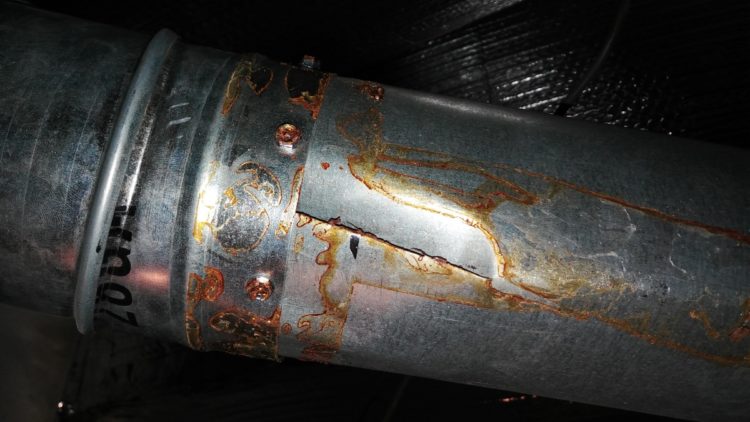

– Look for signs of blockages by examining the pipe itself – water streaks or rust on the flue pipe may indicate a blockage, causing moisture to back up.
Thereof, What is the difference between a chimney and a flue?
In a discussion of the parts of your fireplace system, the chimney tends to be the exterior portion that is exposed to the elements. The term flue refers to the passage by which smoke, gas, or products of combustion are moved to the outdoors.
Also to know is, How do you test a flue draft?
Subsequently, question is, Does a chimney need a flue? Without one, your chimney walls will eventually deteriorate and smoke will be able to seep through any cracks. … A properly installed chimney liner that’s in good condition will be able to keep it out. Also, if your chimney doesn’t have a liner, that increases the chances of your flue getting cold.
Also, How do you size a flue pipe?
The Right Size Flue Pipe Measure the hole where the furnace vents. The pipe you purchase should match the inside diameter of the hole. It can be larger but must never be smaller or leaks will result. The average stove and furnace today requires a 3 inch diameter pipe, but can go as large as 8 inches.
How do you tell if your furnace is venting properly?
How Do I Know If My Furnace Isn’t Venting Properly? Gas furnace fumes are moist, so if you notice “sweat” on your windows, this is a sign that your furnace isn’t venting correctly. When your furnace comes on in the morning, if it is venting into your house rather than outdoors, moisture will condense on the cold glass.
Does every chimney have a flue?
A flue may be a duct, pipe, vent, or chimney. An unlined chimney is technically a flue, even though an unlined chimney is a fire hazard.
What does a flue pipe do?
The flue pipe is a duct pipe that vents, or exhausts, gases from inside the home to the outside. A byproduct of combustion contains carbon monoxide and other dangerous compounds.
What is flue draft?
The difference between atmospheric pressure and the pressure existing in the furnace or flue gas passage of a boiler is termed as draft. Draft can also be referred to as the difference in pressure in the combustion chamber area which results in the motion of the flue gases and the air flow.
What is a flue in a chimney?
FLUE – (lining in a masonry chimney)- “A clay, ceramic, or metal conduit installed inside of a chimney, intended to contain the combustion products, direct them to the outside atmosphere, and protect the chimney walls from heat and corrosion.” Although building codes vary from one state or locality to another, the …
What is a flue pipe furnace?
This is the job of the flue, a large metal pipe that extends from the furnace to a chimney liner or an independent flue pipe. The flue brings combustion gases safely through your home and up through the roof, expelling them above the roofline.
How does a furnace vent?
How does a standard-efficiency furnace vent combustion gases? In a standard-efficiency furnace, a flue pipe is attached to the heat exchanger and combustion gases exit the heat exchanger through that pipe. The flue pipe typically extends upwards and out of the home’s roof, where the gases are expelled outside.
Does every fireplace have a flue?
Every Fireplace has a chimney damper. … Generaly the flue begins were the fireplace transforms into the flue pipe and ends at the chimney cap. The purpose of the flue is to move ash, sparks, smoke and gas out of the house into the atmosphere. A byproduct is also that it moves the heat out as well.
What is the purpose of a flue pipe?
The purpose of the flue pipe is to remove harmful byproducts of the combusted, or burned, fuel from inside your home. If the byproducts are not properly ventilated from inside the home, then you can have a dangerous buildup of carbon monoxide.
How do you use a draft gauge?
Just as a mercury barometer is used to measure atmospheric pressure in inches of mercury, a draft gauge is used to measure draft intensity (pressure) in inches of water. Natural Draft is thermal draft. It occurs when heated gases expand. The vacuum is then created throughout this column of hot gases.
How do you replace a flue pipe?
– Look over the section of flue pipe you want to replace. …
– Unscrew the sheet metal screws from the section of flue pipe you wish to replace. …
– Measure the length of the flue pipe and prepare a replacement piece by cutting a piece of flue pipe to the correct length using your snips.
– Crimp one end with your pipe crimper.
What is the difference between a balanced flue and an open flue?
A balanced flue – or ‘closed’ system – has one significant difference to an open flue. … Balanced flue fires are actually entirely sealed off from your room with a glass panel, so the air in your room is not affected at all. The same pipe that takes in the air from outside also removes the waste air.
