– Step 1: Model walls, roofs, ceilings, floors and main beams.
– Step 2: Generate truss areas and trusses.
– Step 3: Generate truss members.
– Step 4: Check connections between members.
– Step 5: Check supports.
– Step 6: Generate truss labels and drawings.
– Step 7: Generate internal pressure area.
Table of Contents
READ ALSO
Thereof, How far can a roof truss span?
approximately 90′
Also to know is, What is the strongest roof truss design? Simple Trusses A queen spanning the same distance as a king would be stronger, because of the additional braces, but a king post is structurally adequate for spans up to 16 feet wide. A queen post would be used for very short spans in circumstances of very heavy roof material or snow accumulations.
Subsequently, question is, How far can you span a roof truss? approximately 90′
Also, How do you measure a roofing plan?
The easiest and most accurate method to measuring a roof plan is to square everything off. This means that you want to divide the roof into sections. Notice the bold dotted line this dotted line separates the main roof from the gable pop-out on the front of house. With this method only 2 calculations are needed.
Which is stronger rafters or trusses?
Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.
What type of drawing is a roof plan?
Typically, a roof plan is a simple 2D drawing which shows a bird’s eye view of your roof. … and are drawn to the same scale as an accompanying floor plan.
How far can a 2×6 truss span?
13 feet 5 inches

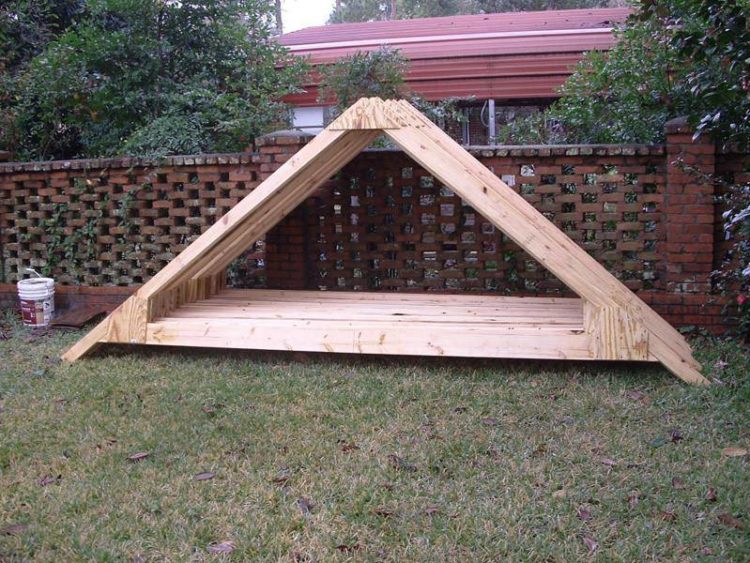

Can you build your own roof trusses?
Yes. 2x4s are commonly used to build trusses for smaller structures like carports, detached garages, and sheds. … The bottom chord of the truss will need to be the same length as the floor of the shed, plus 0.25 inches to ensure a proper fit. The exact height of the truss will depend on the height of the roof.
Can you alter roof trusses?
You can modify the trusses, but it’s an enormous amount of work. Also, if you decide to do this, you MUST work hand-in-hand with a licensed structural engineer that’s familiar with wood trusses. CLICK HERE to get FREE & FAST BIDS from local structural engineers who can help you modify your trusses.
How do you measure a roof line?
Ask the assistant to hold one end of the tape in line with the outer edge of the roof at one end, and measure to the opposite, outer end of the roof. Multiply the angle measurement for the pitch of the roof by the length of the roof to determine the square-foot area of one side of the gable.
What is the maximum span for roof trusses in feet?
Trusses can span up to approximately 90′, although very long truss spans are more challenging to deliver, erect, brace and install properly. While longer trusses may be “wobbly” as they are lifted off of the ground and onto the bearing walls, once they are properly braced, the truss system is extremely strong.
How do you estimate a roofing job?
To estimate how many shingles you’ll need, first estimate the total square footage of your roof’s surface. To do this, measure the length and width of each plane on the roof, including dormers. Then, multiply length x width to get the square footage of each plane.
What is the maximum span for a 2×6 Rafter?
How far can a 2×10 Rafter span without support?
In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2×8 up to 12 feet; 2×10 to 15 feet and 2×12 to 18 feet.
How much load can a 2×6 support?
Simply so, how much weight can you hang from a 2×6? So the area between two 2×6, 6′ long, on 2′ intervals would have to be able to support 2x6x40=480 pounds of weight. Actually, slightly more since the formula is for 8′-6″ spans but it just gives you a little bit of extra load for just in case.
How far can a 2×10 ceiling joist span without support?
Joist spacing of 24 inches is allowed for spans between 16 to 20 feet using 2-inch by 10-inch lumber of these three grades.
