Thereof, How do I test my washing machine with a multimeter?
– Familiarize yourself with your multimeter. …
– Attach the red and black leads to the multimeter. …
– Unplug the washer and dryer. …
– Access the circuits in the units. …
– Choose the circuit to test, and test by placing one lead on each terminal.

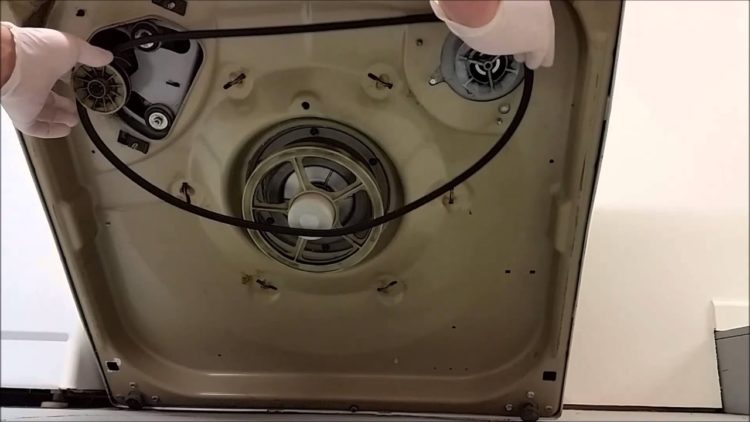

Also to know is, How do I remove the pulley from my washing machine motor?
Subsequently, question is, How do you take apart a Maytag Performa washer? Raise the top panel up and out of the way. You may want to tape the the lid to the top panel so it doesn’t slam into the wall, thus evoking explicit language. Now you’ll see two screws, one on each side. Remove ’em and pull the top of the front panel out toward you.
Also, How do you reset the engine on a Maytag washer?
– Press the “Power/Cancel” button.
– Push the appropriate button to choose a new cycle.
– Press “Start/Pause.” You have now reset your Maytag washer.
How do you check continuity with a multimeter?
To complete your continuity test, place one probe at each end of the circuit or component you want to test. As before, if your circuit is continuous, the screen displays a value of zero (or near zero), and the multimeter beeps.
How many ohms should a washing machine drain pump have?
The reading should be between 5 ohms to 10 ohms depending upon your washer model. A reading of zero or infinity, means the pump requires replacement.
How do you check continuity without a multimeter?
But a non-contact tester is a safe way to check things out – e.g., check a wire to see if appears hot, turn off the breaker that you think controls it, check the wire again to make sure it no longer appears hot.
How do you disassemble a Maytag Performa Dryer?
How do I remove the agitator from my Maytag Performa washer?
How do you test a washing machine timer with a multimeter?
Turn your digital meter to Continuity Test Mode. Using your digital multimeter, check the timer for continuity through the contacts. There may be an electrical diagram on the back of your washer. This should inform you which number on the timer socket will relate to which set of contacts in the timer.
How does a washing machine drain pump work?
Can we check circuit continuity using multimeter?
Continuity testing overview A circuit is complete when its switch is closed. A digital multimeter’s Continuity Test mode can be used to test switches, fuses, electrical connections, conductors and other components. … When testing for continuity, a multimeter beeps based on the resistance of the component being tested.
How much is a timer for a washing machine?
Washing machine timers can cost between $50 and $150, but by changing the timer on the washer, you can save on trips to the laundromat and the cost of a new machine.
How do I reset my Maytag washer?
– Unplug the washer for 1 minute from the electrical outlet.
– Plug the washer back in and lift and lower the lid 6 times within a 12 second period. You have 30 seconds to start lifting and lowering the lid.
– The motor has now been reset and is ready for you to start a cycle.
How do you change a Maytag washer motor?
How do I know if my washing machine capacitor is bad?
Signs of a Bad Capacitor A washing machine with a bad capacitor may fail to start altogether. However, if the starter capacitor has a current that’s weak but not dead, the machine may start, but it will overheat, hum loudly or run sluggishly.
