Zama Model Number Lookup:Zama carb model numbers are located on the sides of the carburetor. On one side, you’ll usually see one letter followed by one number followed by another letter. On the other side, there’s usually one letter followed by one or two numbers followed by another letter (i.e.: C1UK27B).
Stihl Holding AG & Co.

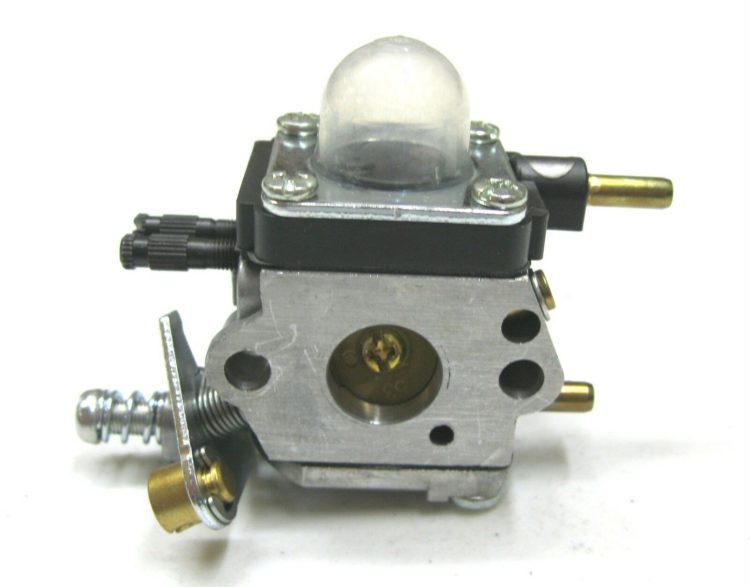

Thereof, How do I identify a Zama carburetor?
Identify the Zama carburetor type. The carburetor body number identifies the carburetor type. The major types of Zama carburetors include the C1M, C1Q, C1T, C1U, C3, C3A and the C3M. One of these designations will be stamped on the carburetor, thus identifying the carburetor type.
Also to know is, How do I tell what model my carburetor is? You’ll almost always find the model information on a Walbro carburetor stamped into the body on the side opposite the jets. Most of the time, you’ll find the number right beside the body.
Subsequently, question is, Where is the model number on a Zama carburetor? On a Zama carburetor there are 2 sets of numbers that need to be acquired that are located on BOTH sides of the carburetor. For example on one side you may see C1U,C1Q,or C1M while on the other side you may K23, S118 or EL35 respectively. The actual Zama carburetor number would be C1U-K23, C1Q-S118 and C1M-EL35.
Also, How do I know what kind of carburetor I have?
Look at the upper front of the carburetor on the piece known as the airhorn, or choke tower. This is a rectangular part of the carburetor with rounded edges, open to the top of the part. There will be a small number stamped there.
How does a carburetor work 4 stroke?
Air and fuel enter the small engine through the carburetor. It’s the job of the carburetor to supply a mixture of air and fuel that will allow for proper combustion. … This allows atmospheric pressure to force the air-fuel mixture into the cylinder bore as the piston moves downward.
How do I rebuild my carburetor?
How does fuel get into carburetor?
At the top, there’s a valve called the choke that regulates how much air can flow in. If the choke is closed, less air flows down through the pipe and the venturi sucks in more fuel, so the engine gets a fuel-rich mixture. … As the chamber feeds fuel to the carburetor, the fuel level sinks, and the float falls with it.
How do I know what model Holley carb I have?
It’s like a “VIN” for your carburetor and should be hand-stamped on the front of the choke tower to the right of the vent tube on most typical Holley carbs. The list number typically is four to six digits long and may or may not have a suffix number behind it.
What does the carburetor attach to?
The carburetor is a pipe above the engine cylinders with an air pipe and a fuel pipe connected to it. The air pipe brings in outside air, first through an air filter to remove dirt and other debris, and then to the carburetor. The carburetor, also known as the carb, has two valves that perfect the air to fuel ratio.
Why do I have to pour gas in carburetor to start?
Let’s get back to basics. If you have to pour gas into the carb, there is a problem with fuel delivery. If there are any obstructions in or to the carb, you will have fuel starvation. Check all fuel lines, fuel filters, and the “old gas” itself as a problem.
What is the main purpose of a carburetor?
Carburetors are responsible for mixing air with fuel to obtain the correct ratio for a combustible vehicle’s engine. The carburetor also helps to control the engine’s speed when the gas pedal is pressed.
Is rebuilding a carburetor hard?
Originally Answered: How hard is it to rebuild a carburettor? If you have a reasonable degree of patience and mechanical aptitude, it’s not that difficult. It’s tedious and fiddly and it’s surprising how many tiny parts can be stuffed into such a small object, so it’s not particularly fun, but it’s not difficult.
How do I know what Rochester carburetor I have?
All Rochester carburetors, including the Quadrajet, are identified by a 7-digit or 8-digit part number; the earliest units, made before mid-1968, had a round metal tag attached to the fuel bowl. The 7-digit part number ran around the outside edge of the tag.
Where are Stihl carburetors made?
Beach, Virginia and a majority of the STIHL engines or “powerheads are built in the United States from domestic and foreign parts and components”. The carburetors are manufactured in China; STIHL purchased Zama Corporation, Ltd., Hong Kong, on December 31, 2008.
How do you adjust a Zama c1q carburetor?
Why is fuel coming out of my carburetor?
When the tip of the valve becomes worn or debris prevents the closing of the valve, fuel flows continuously into the bowl thus flooding the engine. … Under severe conditions gas may soak the air filter or overflow out of the carburetor and onto the ground while parked.
