How do I know if my ignition control module is bad?

Lulu Sgh by Lulu Sgh
0

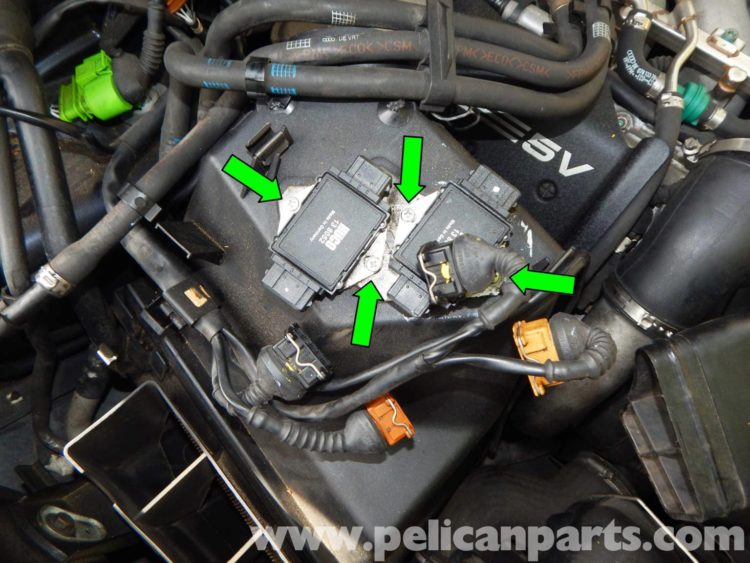

ignition control module location

ignition control module location

Share on FacebookShare on Twitter

– Engine performance issues. One of the first symptoms of a problem with the ignition module are engine performance issues. …
– Engine stalling. Another symptom of a problematic ESC module is the engine stalling. …
– Car not starting or engine not sparking.

Table of Contents

    • READ ALSO
    • How do you stop a bathtub drain from leaking?
    • How many circuits can you put on a 50 amp sub panel?
  • What can cause an ignition control module to go bad?
  • How do you test an ignition control module GM?
  • How do you test an ignition module?
  • What would cause an ignition control module to fail?
  • What are the symptoms of a bad igniter?
  • What are the symptoms of a bad ignition module?
  • How do I test an Onan ignition module?
  • How do you replace an ignition control module?
  • When should I replace my ignition control module?
  • What are the symptoms of a bad ignition control module?
  • How do I know if my ignition module is bad?
  • How do I test my ignition system?

READ ALSO

Do I use plumbers putty on tub drain?

How do you stop a bathtub drain from leaking?

Can I put a 50 amp breaker in a 50 amp sub panel?

How many circuits can you put on a 50 amp sub panel?

Where is the ignition module located? The location of the ignition module depends on where the vehicle was manufactured. In a domestic model, the module sits on, inside, or near the distributor housing. Foreign models will hide their ignitor within the vehicle’s firewall or wheel-well.

Thereof, How much does it cost to replace an ignition control module?

The average cost for ignition control module replacement is between $286 and $381. Labor costs are estimated between $67 and $84 while parts are priced between $219 and $297.

Also to know is, How do you install an ignition control module? Reach under the engine and unplug the coil assembly electrical connectors. Remove the assembly mounting bolts using a ratchet and socket. Remove the assembly from the engine and remove the coils using a ratchet and socket. Remove the old ignition module from the base plate and install the new unit.

Subsequently, question is, What causes ignition module failure? The cause of an ignition control module failure is often associated with age and damage from heat buildup. The correction for this issue becomes the replacement of the failed component.

Also, How do you test a 4 pin ignition module?

– Test for power at the pink BAT terminal. You should have battery voltage w/ the key in the start and RUN positions.
– Connect the ground side of your test lamp to the battery POSITIVE cable. …
– Remove the cap & rotor. …
– DVOM (meter) still connected to green & white leads.

What can cause an ignition control module to go bad?

The cause of an ignition control module failure is often associated with age and damage from heat buildup. The correction for this issue becomes the replacement of the failed component.

How do you test an ignition control module GM?

– Open the hood of the GM vehicle. Locate the ignition module. …
– Connect the positive test light lead to the ignition module signal wire. You will notice a wire harness on the side of the module; the signal wire is the middle wire of the three. …
– Ask a partner to crank the engine numerous times.

How do you test an ignition module?

Connect the ground lead from the 12-volt test light to the negative terminal on the ignition coil. Have your partner crank the engine over several times. Your test light should flicker on and off. If so, your module is working properly and no further testing is necessary.

What would cause an ignition control module to fail?

The cause of an ignition control module failure is often associated with age and damage from heat buildup. The correction for this issue becomes the replacement of the failed component.

What are the symptoms of a bad igniter?

– Engine misfires and decrease in power, acceleration, and fuel efficiency. One of the first symptoms of an issue with the vehicle’s igniter is engine performance issues. …
– Check Engine Light comes on. An illuminated Check Engine Light is another symptom of a potential issue with the vehicle’s igniter. …
– Car is not starting.

What are the symptoms of a bad ignition module?

One of the first symptoms of a problem with the ignition module are engine performance issues. If the ignition module fails or has any problems it can lead to performance issues with the vehicle, such as misfires, hesitation, loss of power, and even reduced fuel economy.

How do I test an Onan ignition module?

Connect positive side of voltmeter to negative (-) coil terminal (larger diameter of the two threaded posts) and negative side of voltmeter to engine ground. Leave the jumper from the + battery terminal to the + coil terminal connected and rotate flywheel slowly by hand while observing voltmeter.

How do you replace an ignition control module?

Reach under the engine and unplug the coil assembly electrical connectors. Remove the assembly mounting bolts using a ratchet and socket. Remove the assembly from the engine and remove the coils using a ratchet and socket. Remove the old ignition module from the base plate and install the new unit.

When should I replace my ignition control module?

Sudden and Unexpected Failure One of the first, and major, signs that the ignition module needs to be replaced is if your BMW stalls unexpectedly and will not start again. This will happen if the ignition module has had a loss of power. This loss of power could be due to corroded or loose electrical wires.

What are the symptoms of a bad ignition control module?

– Engine performance issues. One of the first symptoms of a problem with the ignition module are engine performance issues. …
– Engine stalling. Another symptom of a problematic ESC module is the engine stalling. …
– Car not starting or engine not sparking.

How do I know if my ignition module is bad?

– Engine performance issues. One of the first symptoms of a problem with the ignition module are engine performance issues. …
– Engine stalling. Another symptom of a problematic ESC module is the engine stalling. …
– Car not starting or engine not sparking.

How do I test my ignition system?

Connect your multimeter to the positive terminal or pin of your coil, and to the high output terminal that goes to the spark plug. Most ignition coils should have a secondary resistance falling somewhere between 6,000 to 10,000 ohms;however, refer to manufacturer specifications for the correct range.
