The correct way to drain a washing machine is to install a standpipe. That is a vertical length of pipe that connects to a P-trap that, in turn, connects to the drain. The top of the standpipe must extend above the overflow level of the washing machine, and it must be properly vented.

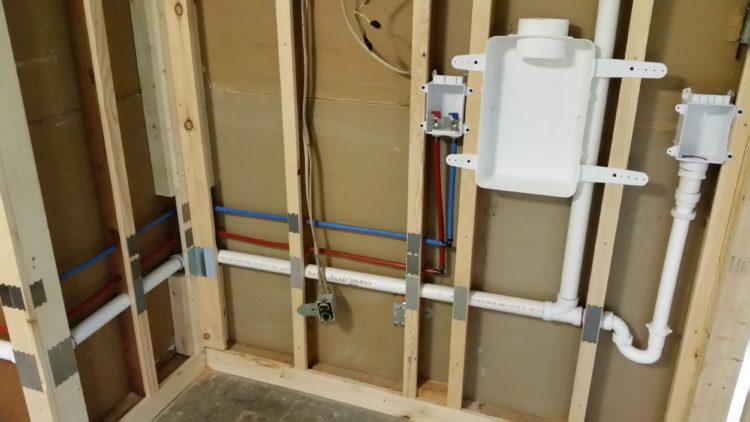

Fitting easily inside a laundry box, a small AAV is a good choice for venting a washing machine. This one connects to a 2-inch trap, which drains into a 3-inch branch line.
Thereof, What is code for washing machine drain?
The standard for new washing machine drain sizes, according to the Universal Plumbing Code, is now 2 inches. The pipe should be between 18 and 30 inches high from the floor, while the P-trap should be between 6 and 18 inches from the floor.
Also to know is, Does a washing machine drain into sewer? Sewer Drain Basics This main sewer drain pipe under the yard is connected to the main drain inside the house, which accepts the wastewater from the individual branch drains serving each plumbing fixture, including sinks, tubs, showers, and toilets, as well as the washing machine.
Subsequently, question is, Do you need a vent on a washing machine drain? All plumbing fixtures—including washing machines—must be vented. Improperly vented drains can be sluggish and noisy, and can emit hazardous fumes. Properly vented drains allow the P-trap to do its job: prevent sewer gases from escaping into your home.
Also, How do you vent a washing machine drain?
How high should an AAV be?
6 inches
How far from drain can vent be?
8 feet
Do I need a vent for every drain?
Whether you’re putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly. … The fixture without a vent may drain slowly. The drain will likely make gurgling noises. The water in the trap could siphon out, resulting in a potent sewer smell.
Where should a washing machine drain to?
The correct way to drain a washing machine is to install a standpipe. That is a vertical length of pipe that connects to a P-trap that, in turn, connects to the drain. The top of the standpipe must extend above the overflow level of the washing machine, and it must be properly vented.
What size drain do you need for a washing machine?
2-inch
How high does an air admittance valve need to be?
Individual and branch-type air admittance valves shall be located a minimum of 4 inches (102 mm) above the horizontal branch drain or fixture drain being vented. Stack-type air admittance valves shall be located not less than 6 inches (152 mm) above the flood level rim of the highest fixture being vented.
Do I need a trap on a washing machine drain?
When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer. … The lack of a P-trap exposes the area to sewer fumes and the lack of venting will cause the drain to run sluggishly and overflow. Washers, like all fixtures, need a trap.
Do you need to vent a washing machine drain?
All plumbing fixtures—including washing machines—must be vented. Improperly vented drains can be sluggish and noisy, and can emit hazardous fumes. Properly vented drains allow the P-trap to do its job: prevent sewer gases from escaping into your home.
How far can you run a drain without a vent?
When builders look only at the table without reading the text, they find that a 2-inch-diameter drain can run a maximum distance of 8 feet to the vent.
How high should washing machine drain be?
The washer drain hose is 1¼” O.D. (outside diameter). To be confident that no siphoning of water will take place, the drain plumbing should be a minimum of 30″ high. In order for the drain hose to function properly, the drain must be at least 30″ from the floor and less than 8 feet high.
Is a vent pipe necessary?
Vent pipes supply fresh air to each plumbing fixture in the house, which helps the system move water through the drainage pipes each time a toilet is flushed or a sink is drained. Plumbing air vents also prevent sewer gases from entering the home and allow wastewater gas and odor to escape.
What is the best air admittance valve?
– #1 TUUBER Dual Seal Air Admittance Valve.
– #2 Oatey Sure-Vent Air Admittance Valve.
– #3 Studor Redi-Vent Air Admittance Valve.
