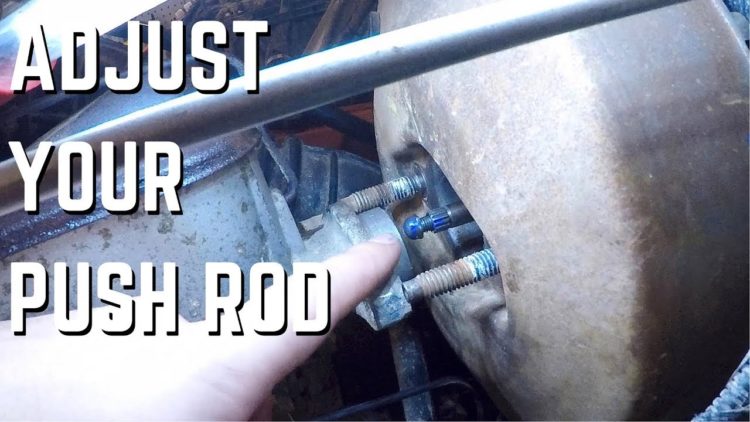

To adjust the push rod’s length, remove the master cylinder from the vehicle. Turn the adjusting nut in to shorten the rod or out to lengthen the push rod (see illustration). 5. If the push rod is non-adjustable, use shims between the master cylinder and the firewall or power booster to shorten it.
Thereof, What causes excessive brake pedal travel?
EXCESSIVE BRAKE PEDAL TRAVEL Possible causes include worn brake linings front or rear (or both), misadjusted drum brakes, or air in the brake lines. … This is also a potentially dangerous condition because a worn master cylinder or a leak in the hydraulic system may cause the brakes to fail.
Also to know is, How much should a brake pedal travel? i like to set it for at least 5-6″ of aver all travel,with the master cylider bottoming out before the brake pedal hits the floor. that way you have about 1-2″ of travel before the brakes go on with the pedal about 3-4″ from the floor.
Subsequently, question is, How do you adjust brake pedal ratio? In order to increase the brake pedal ratio, a new hole must be drilled in the pedal arm. To avoid a hard angle on the master cylinder pushrod, the master cylinder placement must change.
Also, How do I adjust my brake pressure?
Instruct an assistant to press and release the brake pedal until it feels firm, then hold pressure on the pedal. Loosen the brake bleeder valve, as your assistant holds the pedal. Observe as bubbles come from the end of the hose in the brake fluid. Tighten the bleeder valve.
How do you adjust a pushrod master cylinder?
How do you adjust a push rod on a brake pedal?
How do I know my brake pedal ratio?
– Measure the distance from the pedal’s pivot point to the center of the pedal pad. This is measurement “A” in the diagram.
– Measure the distance from the pedal’s pivot point to the center of the master cylinder pushrod. …
– “A” divided by “B” equals the pedal ratio.
What are two methods of testing master cylinder pushrod adjustment?
If the push rod is nonadjustable, use shims between the master cylinder and power booster to shorten it. One may also ask, what are two methods of testing master cylinder pushrod adjustment? There are two methods that can be used to check for proper pushrod length and installation: the gauge method and the air method.
How much travel should a brake pedal have?
Make sure there is room between the brake pedal and the floorboard with the brakes applied. Not all manufacturers specify a pedal reserve distance however there should be at least 2 inches of travel before the brake pedal hits the floor.
Can brakes be adjusted?
As the friction material wears down, the piston or pistons in the brake caliper moves towards the disc, thereby taking up the wear on pads or discs or both. No adjustment is possible.
Can brake pedal be adjusted?
Rotate the pushrod clockwise to increase pedal height by moving the brake pedal out and upwards. Rotate the pushrod counterclockwise to decrease pedal height. The rod can be rotated by hand, or with pliers if necessary. … When the pedal is adjusted to your satisfaction, carefully tighten both locknuts.
How do I stop my brake pedal from traveling?
Bleed the Brakes. Use a jelly jar half full of brake fluid and a short hose to depress your brake pedal. While depressing the pedal, rotate the star wheel to lose up the clearance. Then, go back one click when the wheel scrapes. It’s best to have a partner on hand when bleeding your brakes.
How do you increase brake pedal ratio?
In order to increase the brake pedal ratio, a new hole must be drilled in the pedal arm. To avoid a hard angle on the master cylinder pushrod, the master cylinder placement must change.
How do you adjust self adjusting brakes?
– Jack the vehicle up with the jack. Place it on jack stands. …
– Look next to a rear wheel and find the brake chamber. …
– Look at the back of the push rod to find the adjustment nut. …
– Turn the nut in the other direction so that you hear it ratcheting as you turn. …
– Measure the distance the push arm travels into the brake chamber.
How do you measure a free brake pedal?
To measure it, you can apply very light hand pressure to the brake pedal, measuring how far the pedal travels before you start to feel resistance Figure 31-26. To measure free play, apply light than pressure to the brake pedal and measure how far the pedal travels before you feel resistance.
How do you measure brake pedal height?
To measure it, you can apply very light hand pressure to the brake pedal, measuring how far the pedal travels before you start to feel resistance Figure 31-26. To measure free play, apply light than pressure to the brake pedal and measure how far the pedal travels before you feel resistance.
