Thereof, What is take up in conduit bending?
Take up is a amount of conduit length used to figure out where to place the marks on the conduit before the bend. Most hand benders have the take up stamped on the bender or on a sticker – usually on the bender handle.
Also to know is, How do you bend a 22 degree offset?

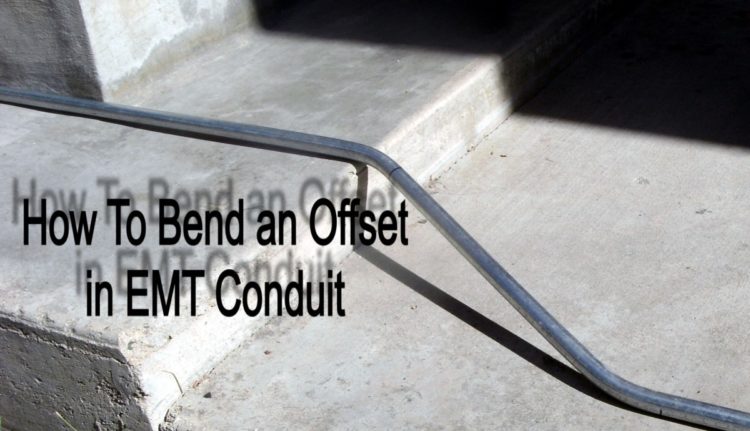

Subsequently, question is, How do you bend an offset in EMT?
Also, How many bends are allowed in conduit?
two
What is gain in conduit bending?
Adjustment (gain) is the difference in the length of tubing used in a radiused bend compared to the length of tubing required in a sharp bend, when measured from the beginning to the end of the bend. The distance around a radiused bend is always less than a sharp bend.
How do you find the bending offset?
What is the purpose of offsets in conduit?
Offset Bends. Offset bends are used to move a run of conduit from one plane to another. An offset is normally used to bend the conduit around an obstruction, or to relocate the conduit close to a structural member to make it easier to fasten the conduit. Figure 2 shows an example of an offset bend.
How do you bend conduit pipes?
Slide the conduit into the bender leaving the appropriate amount past the arrow on the bending shoe. Now, pull the bender handle towards you to create the bend with a firm and steady motion to avoid any kinks or crimps in the conduit. Bend until you have reached your desired corner angle.
What is the formula for a 22.5 degree offset?
For any fitting angle that is 22.5 degrees, the true offset is multiplied by 2.613 to get the answer for the diagonal. The setback for fitting a pipe equals the true offset multiplied by 0.577 for a fitting angle of 60 degrees. The true offset multiplied by 1.000 equals the setback for a 45-degree fitting angle.
How do you calculate gain in conduit bending?
Here’s the method to calculate the gain: Take the bending radius and add half the O.D. of the conduit. Multiply the result by 0.42. Next, add the O.D. of the conduit.
How do you bend a 90 degree conduit pipe?
How do you bend conduit at home?
What is the multiplier for a 22.5 degree offset?
Degree of Bend in Degrees (Angle) Multiplier Shrinkage Multiplier in inches
——————————— ———- ——————————
15 3.9 1/8
22.5 2.6 3/16
30 2 1/4
45 1.4 3/8
How do you bend a conduit offset?
How do you bend an offset EMT?
How do you measure a 90 conduit bend?
To use the deduct figure, measure the distance to the far edge of the 90 and subtract the deduct figure. If ½” pipe is being bent and the distance is 56″ place a mark on the conduit at 51″; this is where the bender will be placed. Work the bender onto the conduit with the conduit mark at the arrow of the bender.
