– Fig: Calculation of minimum size of R.C.C beam size as per IS 456: 2000. Effective depth =Span/Basic value. Total Depth = Effective depth + dia./2 + Clear Cover. …
– Fig: Simply supported beam. Where, Le = Effective length. …
– Fig: Cantilever Beam. Span of cantilever beam = 2 m. …
– Fig: Continuous Beam. Span of continuous beam = 5 m.
The standard size of the beams, In a residential building is 9 ʺ × 12 ʺ or 225 mm × 300 mm according to the (IS codes). The minimum size of the RCC beam should not be less than the 9 ʺ× 9 ʺ or 225mm × 225mm with the addition of slab thickness which is 125mm.
Thereof, How big of a beam do I need to span 20 feet?
In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2×8 up to 12 feet; 2×10 to 15 feet and 2×12 to 18 feet.
Also to know is, How do I know what size beam I need? – determine the total load per foot of beam.
– pick the span you want (pick 4’0″ for example)
– select the Fb column of the lumber you intend to use. …
– choose the row for the size of lumber used in the double header: use 2×6 in this example.

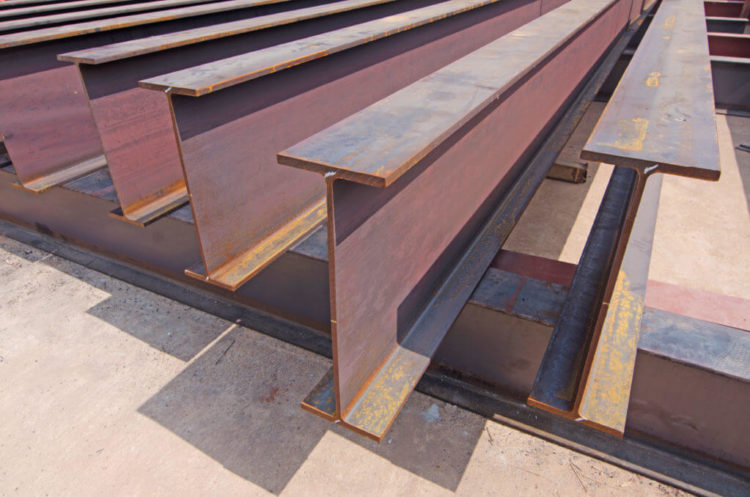

Subsequently, question is, What are the dimensions of an I beam? 0 1 2
———- —- —-
W 24 x 131 24.5 38.5
W 24 x 117 24.3 34.4
W 24 x 104 24.1 30.6
W 24 x 94 24.1 27.7
W 24 x 84 24.1 24.7
Also, Can a 2×10 span 20 feet?
Douglas fir 2-by-10 joists graded as “Structural Select” allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.
What is the standard size of column?
The thumb rules are for general designing in very small projects. For this general thumb rule, we will assume a structure of G+1 floors high, using standard 6″ walls. Minimum size of an RCC column should not be less than 9” x 12” (225mm x 300mm) with 4 bars of 12 MM Fe415 Steel.
How do you calculate ridge beam?
Determining the Ridge Beam Height For example, if the slope is 4 in 12, and the run is 12 feet, the ridge beam height (M) will be 4 feet. The finished ridge beam height (Z) above the top of the wall will be (M) plus the Y Height. The formulas are: M = (R * X) / 12.
How do you find the width of a beam?
How big of a beam do I need to span 30 feet?
For a single 30′ beam, you can plan for a W12x40 (it’s 12″ deep x 8″ wide and weighs 40 pounds per foot). If you add the two posts, you can plan for a W4x13 (it’s 4″ deep x 4″ wide and weighs 13 pounds per foot).
What is the minimum size of beam?
225MM X 225MM
How do you calculate the size of an I beam?
Floors (Beams and Girders) To calculate the necessary depth of a beam, divide the span (in inches) by 20. For example, a 25′ span would be 25×12 / 20 = 15”. The width of this beam would be between 1/3 and ½ the depth. The dimensions of a girder would be the same, but the flange would be thicker.
How far can a beam span without support?
How far can a 2×6 beam span without support? In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2×8 up to 12 feet; 2×10 to 15 feet and 2×12 to 18 feet.
How do you find the depth and width of a beam?
As per IS code 456 depth and width of beam depend on its length of beam and various types of load acting on it. according to as per IS code 456 minimum depth of simply supported beam is about L/20 and minimum width of beam is about depth/1.5.
How big of a beam do I need to span 24 feet?
You’ll need at least a 12″ (nominal) I-joist or an engineered floor truss to span that far, or you’ll need an LVL or steel beam midway.
How do you calculate ridges?
The finished ridge beam height (Z) above the top of the wall will be (M) plus the Y Height. The formulas are: M = (R * X) / 12. Z = M + Y (height above the top of the wall)
How do you find the depth of a beam?
What is the minimum distance between two columns?
2.5 Meter
