Thereof, How do you use a compression fitting?
Also to know is, What is a Type A compression fitting? Type-A or non-manipulative fitting: These fittings are easy to install and do not require any modifications to the tubing. Type-A compression fittings are also known as olive and can be installed using an ordinary wrench for tightening the surrounding nut. These fittings are usually used for water connections.
Subsequently, question is, What is a 3 way air valve? Three-way, two-position valves consist of three ports connected through passages within a valve body. The valves pressurize and exhaust one outlet port to control a single-acting cylinder, or pilot another valve. Three-way valves direct pressurized air to the cap-end side of the cylinder.
Also, Are Compression Fittings reliable?
Although compression fittings are generally considered more reliable than threaded fittings, there are some potential problems. In general, compression fittings are not as resistant to vibration as soldered or welded fittings. Repeated bending may cause the ferrule to lose its grip on the tube.
What is the difference between 2 way and 3 way valve?
2 way and 3 way valve classifications are commonly used in industrial applications. These valves are defined by the number of ports they use. 2 way valves, as their name suggests, consist of two ports: an inlet port “A” and an outlet port “AB.” On the other hand, 3 way valves consist of three ports: “A,” “B,” and “AB”.
Can you overtighten a compression fitting?
Compression fittings work well if the pipe is clean and cut properly. … Its often said in the trade to not over tighten a compression fitting, leaving you more thread in the case of a leak and not distorting the olive or fitting. Generally a nut will need one whole turn after hand tightening.
How do you change a compression fitting?
Are compression fittings as good as solder?
Although compression fittings are generally considered more reliable than threaded fittings, there are some potential problems. In general, compression fittings are not as resistant to vibration as soldered or welded fittings. Repeated bending may cause the ferrule to lose its grip on the tube.

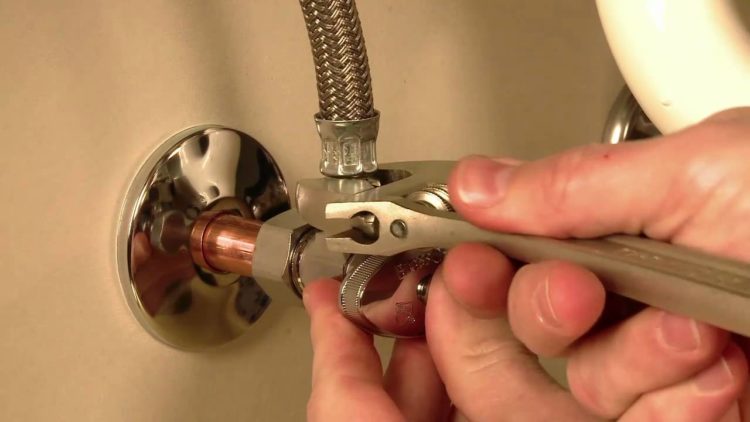

How do you attach a compression fitting to a copper pipe?
Hold the fitting against the pipe, and slide the compression ring up against the fitting. Slide the nut over the ring and thread it onto the fitting until it is hand-tight. Be careful not to cross-thread the nut. Fit one wrench onto the body of the fitting and hold it so that the fitting doesn’t move.
How do you use a compression joint?
What is 3 way solenoid valve?
Solenoid valves are used to help control the flow of different liquids and gases. Three way valves have three pipe connections instead of the normal two, making it easier to stop and start the flow, regardless if it’s energized or de-energized. …
Can a compression fitting be reused?
It can never be reused once they have been compressed. This connector is directly placed over the pipe and the nut is tightened compressing the ferrule between the pipe and the body of the fitting. Compression of this ferrule also results in deformation of the copper tubing.
How do you install a compression coupling?
Is NPT the same as compression?
3. NPT (ends) look very different than compression (ends). NPT has no nuts or ferrules, but instead relies entirely on a thread connection. Like plastic tubing, the product designation for NPT (and pipe in general) is the internal diameter (ID), not tubing OD like compression.
How does a 2 way valve work?
A 2-way, normally closed, solenoid valve has 2 pipe connections, an inlet called the cavity port and an outlet called the body orifice port. When the valve is energized the plunger opens allowing media to flow through the valve in the cavity port and out the body orifice port. Turn off the power.
How do you install a sharkbite tee stop valve?
