The first grounding rod must be driven into the soil within 20 feet of the fence energizer. Additional grounding rods should be spaced 10 feet apart from the previous rod. For ease of installation, pour water into the entry point when pounding in your ground rods.
Thereof, What type of wire is used for grounding electric fence?
Most grounding rods are made from galvanized steel or copper and it is important that the type of wire used to connect the energizer to the ground rod be identical to the rod.

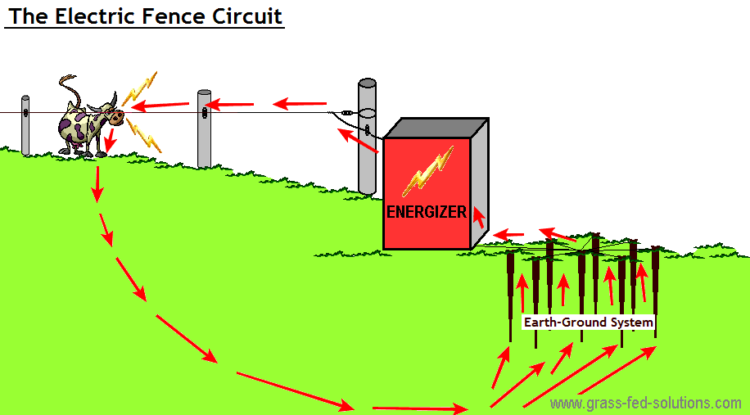

Also to know is, What happens if you don’t ground an electric fence? If It Isn’t Grounded, It Won’t Shock When an animal touches the electrically charged fence wire, the animal feels the electric current as the charge passes through the body. The charge then completes the circuit through the soil via the ground rod and then up the ground wire to the ground terminal charger.
Subsequently, question is, Why doesn’t an electric fence kill you? An electric fence is not dangerous since the amplification or current being sent through wires is very low. It’s the amps that will ultimately kill and with an electric fence you’ll usually see it at a low setting of around 120 milliamps. That’s why electric fencing can get away with a higher voltage.
Also, Does electric fence ground wire need to be insulated?
Proper Ground System Galvanized-steel rods should be connected to the ground terminal on the fence energizer by a highly insulated wire to cut out any leakage. A ground system is the key to the fence’s effectiveness. Therefore its is mandatory to take the best possible care of the ground wiring.
How do you ground an electric fence?
The first grounding rod must be driven into the soil within 20 feet of the fence energizer. Additional grounding rods should be spaced 10 feet apart from the previous rod. For ease of installation, pour water into the entry point when pounding in your ground rods.
What wire is used for grounding electric fence?
Most grounding rods are made from galvanized steel or copper and it is important that the type of wire used to connect the energizer to the ground rod be identical to the rod.
Will 7000 volts kill you?
The element that is dangerous is the current flowing through your heart. If you were shocked between two fingers, your fingers might be burned, but otherwise, you would be fine. However, if you touched the 7 KV source with one hand, and ground with your other, you could be killed.
Will electric fence work without ground?
If your fence is not properly grounded, the shock may not be as powerful or even felt at all! Because completing the circuit and grounding are critical for the shock to be felt, birds sitting on a fence line or power line feel no shock. Since they are not grounded in any way, the circuit is not completed.
Is it dangerous to touch an electric fence?
Accidental head or neck contact can occur when pushing a voltage probe into the soil or when checking voltage. Be very careful when you do so to avoid head-to-wire contact! Never allow anyone else to touch a modern electric fence. It is not a game!
Can 200000 volts kill you?
Voltage does not kill you. It’s the current and the duration of said current that could potentially kill you. If you touch a an object containing say, 200,000 volts, as the volts traverse your body, the voltage will significantly decrease due to the energy being transferred to the ground.
Can 7 000 volts kill you?
The element that is dangerous is the current flowing through your heart. If you were shocked between two fingers, your fingers might be burned, but otherwise, you would be fine. However, if you touched the 7 KV source with one hand, and ground with your other, you could be killed.
What voltage is dangerous for humans?
approximately 50 volts
Can 48 volts kill you?
The amount of current required to start or stop the heart is 60 mA across the chest. Under the right circumstances even 12 volts can be lethal. … 48 Volts could give you a healthy jolt if your skin is moist with sweat. Under normal circumstances with dry skin 48 Volts would probably wake you up but not kill you.
Can an electric fence kill you?
Because electric fencing has low current and pulsates, it can’t kill or permanently hurt anyone. However it is strongly advised to keep children away from an Electric Fence.
Can 30mA kill you?
DC current is about 2-4 times less dangerous than AC current because the AC current will cause faster ventricular fibrillation which is often the cause of death from electric shock. … Applying 9V from your hand to hand directly in your bloodstream would then give 30mA DC which is highly unlikely to kill you.
What is the best ground rod for electric fence?
Make sure the correct type of rod is used for the grounding, for example pipe or rebar. It needs to be galvanized steel at least 4 ft. long. Do not use copper ground rods as these will lower the effectiveness of the connection.
