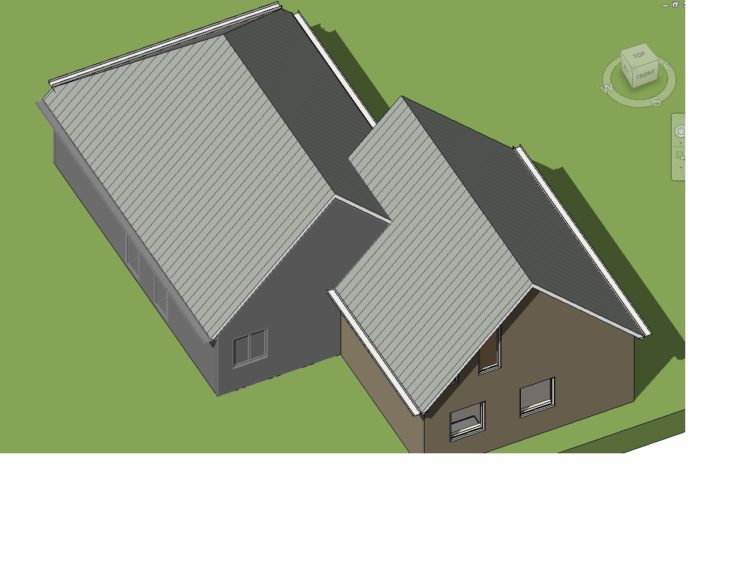

In order to connect two gable roofs with a horizontal addition, you are going to take the midline of your addition and place the ridge of your gable roof, right there. You will also want to make sure that the ridge of your new gable roof intersects the ridge of your existing gable roof, at the exact same height.
Thereof, Can you splice a ridge beam?
Brace the ridge board halves beyond the splice joint while connecting the splice to keep the ridge beam straight and level. Splice the boards on the ground as an alternative, then raise the entire spliced board to set between rafters tops.
Also to know is, How do you frame a cross gable roof?
Subsequently, question is, How big of a beam do I need to span 24 feet? You’ll need at least a 12″ (nominal) I-joist or an engineered floor truss to span that far, or you’ll need an LVL or steel beam midway.
Also, What size lumber can span 24 feet?
How do you size a ridge beam?
Ridge beam sizing is based on the span of the beam between supports, and the amount of roof load supported by the beam. A ridge board is a non-structural member that serves as a prop for opposing rafters to rest against and connect to. Ridge boards can only be used in roofs with slopes from 3 in 12 up to 12 in 12.
How far can a 2×10 span without support?
How far can a 2×8 span without support? In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2×8 up to 12 feet; 2×10 to 15 feet and 2×12 to 18 feet. The larger the deck, the larger the joists.
Does ridge beam need support?
A structural ridge beam, instead, is used when the high ends of the rafters require independent support. This is required for roof slopes less than 3 on 12 by the International Residential Code (IRC) and International Building Code (IBC) and also on a cathedral ceiling such as often used in log cabins.
How do you splice two ridge boards together?
How is a ridge beam supported?
Ridge Beam Support Options A ridge beam, unlike a ridge board, is a structural member that carries half the weight of the roof that it spans, and so it must be supported. It is commonly supported by a wood or steel post or masonry structure within the gable wall, and other support structures along its span as needed.
Can a 2×10 span 20 feet?
Douglas fir 2-by-10 joists graded as “Structural Select” allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.
Which wood is best for roofing?
Builders love plywood for its water resistance, structural stability and low cost. They also love oriented strand board, though. It costs even less and is comparable to plywood on the other two counts, and they increasingly prefer OSB for roof sheathing. Either is an acceptable choice in most jurisdictions.
What size lumber can span 20 feet?
What will a 2×10 span?
10 feet
How do you cut notches in roof rafters?
What is it called where two roofs meet?
The ridge is the peak where two sloped roof sections meet. Part of a roof’s frame, a ridge board runs horizontally along the peak of a sloped roof.
How big of a beam do I need to span 20 feet?
In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2×8 up to 12 feet; 2×10 to 15 feet and 2×12 to 18 feet.
