Measuring hot-to-neutral voltage by itself doesn’t tell you if those wires are reversed. You must measure neutral-to-ground or hot-to-ground voltage. If the neutral-to-ground is 120V and the hot-to-ground is a few volts or less, then the hot and neutral wires are reversed (Fig. 1).

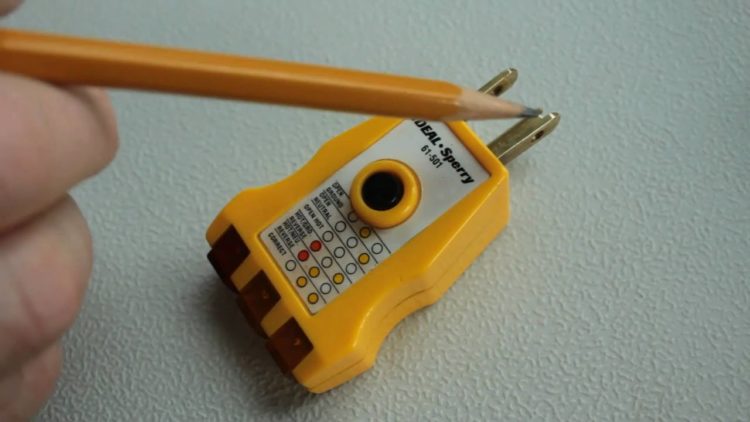

Hot/ground reversal often means a missing neutral. Missing neutral would cause the receptacles (and lights) to not work but still activate a proximity voltage detector. Quote: I buy a Socket Tester and all the problematic outlets came back as Hot/GRD Reverse.
Thereof, How can you tell a neutral from a ground?
Neutral wires should be white. However, if you see a white wire with electrical tape on it, that may indicate that it’s being used as a hot wire. And ground wires are often plain copper, but the ground wire color can be green.
Also to know is, What causes a ground wire to get hot? Corroded connections on the ends of the cable including where the cable connects to it’s end. Loose connection between cable and cable end. Corrosion inside the cable. poor connections at either the battery or ground end.
Subsequently, question is, What causes a back feed on a neutral? Some sources of backfeed can include: Aux power transformers, power transformers, potential transformer, temporary services with auxiliary power and generators, when two different circuits are paralleled to the same load, capacitors, metering; open neutrals.
Also, Are neutral and ground connected?
Neutral is a circuit conductor that normally completes the circuit back to the source. Neutral is usually connected to ground (earth) at the main electrical panel, street drop, or meter, and also at the final step-down transformer of the supply.
What is electrical back feed?
Back feeding occurs when power has not been isolated to a specific location, like your home. … Back feeding allows for unfiltered electricity to flow through circuits and can cause an overload of some of the equipment or appliances that are on those circuits.
Is a ground wire hot?
The black wire is the “hot” wire, which carries the electricity from the breaker panel into the switch or light source. … The plain (or it can sometimes be green) wire is the “ground” wire, which will take electricity back to the breaker panel, then outside to a rod that’s buried in the ground.
What happens if the neutral wire is not connected?
When the neutral wire breakage and phase-to-ground short circuit occur simultaneously, the displacement of the neutral point will be greater. After the neutral wire is broken, the shell leaks electricity, which will cause electric shock.
What does back feed mean?
From Wikipedia, the free encyclopedia. Backfeeding is the flow of electric power in the reverse direction of the generally understood or typical flow of power. Depending on the source of the power, this reverse flow may be intentional or unintentional.
What causes backfeed voltage?
Backfed voltages are voltages that often originate from another circuit or part of the equipment, but “backfeed” through indicating lights, control power transformers or even resistors in equipment. … If an induced voltage is connected to ground, there is no generation (current) source and the voltage will dissipate.
Should I have continuity between neutral and ground?
The ground and the neutral are connect together at the main panel. Continuity between them should be present. If it was open then you would have a problem.
What happens if neutral and ground are reversed?
The greater the load, the more difference you’ll see. If the hot-to-neutral voltage measured under load is greater than the hot-to-ground voltage, the neutral and ground are reversed. This should be corrected immediately.
Is Backfeeding an electrical panel illegal?
Backfeeding is the tying of a portable generator directly to your home’s electrical panel instead of using a transfer switch. It is dangerous. It is often illegal. And it should never be attempted under any circumstance.
Should there be resistance between neutral and ground?
The resistance of the equipment ground should be less than 6Ω to even have a chance of tripping the breaker during a fault. For a typical circuit it should be 1Ω or less. When you check the netural and ground connections just make sure you unplug every thing on that circuit so you can able rule it out.
Can a circuit work without a neutral?
Nope, that’s not how it works. Both the hot wire and the neutral wire are capable of providing charged particles—which is to say, electrons.
How can you tell if a wire is hot or ground?
Black means hot, white signifies neutral, and green indicates ground. However, if you need to rewire a light switch or a plug socket, you may occasionally come across two black wires.
What happens if line and neutral are reversed?
If your outlet’s polarity is reversed, it means that the neutral wire is connected to where the hot wire is supposed to be. This may not sound like a terrible thing, but it is. There is always electricity flowing out of an outlet with reversed polarity, even if an appliance is supposed to be off.
