Move the sprinkler head by hand to adjust the watering direction. Grip the spray head between two fingers. Then, rotate it by hand so it is aimed at the direction you want the water to spray. For example, if you want the water to spray towards the right, rotate the head to the right.
– Rain Bird 32SA Simple Adjust Gear Drive Rotor, 40° – 360° Pattern, 19′ – 32′ Spray Distance Review. …
– Orbit 54009D 360° Full Spray Pattern Shrub Head W/Plastic Nozzle Sprinler Review. …
– Rain Bird 25-PJDA-C Brass Impact Sprinkler Review. …
– Rain Bird 1804VAN Pop-Up Sprinkler, 4″ Review.
Thereof, What is the most efficient sprinkler head?
MP Rotator
Also to know is, How do you fix a Rainbird sprinkler head that won’t rotate? – Disassemble the sprinkler head. …
– Take off the filter at the bottom of the head. …
– Rinse the filter in a bucket filled with clean water to wash out debris.
– If this doesn’t work you’ll need to have the sprinkler head replaced. …
– If it does work, make sure the head is properly adjusted when you re-install it.
Subsequently, question is, Why is my sprinkler head not rotating? Cause 1: Dirt / Debris clogging the filter and gear drive: Rotary sprinklers operate on a “gear drive” system. … Solution: If the sprinkler is no longer rotating and the water flow coming out of the sprinkler has decreased, you can first try cleaning out the filter by removing the pop-up assembly from the main body.
Also, Why is my orbit sprinkler not rotating?
When the water pressure is too low, an inadequate amount of water flows through the sprinkler head and it will not turn. … Using a larger backflow preventer in the water line might increase the water pressure enough to cause the sprinkler head to rotate.
Which sprinkler heads are the most common heads for your sprinkler systems?
Pop-up Spray and Rotor Heads This type of sprinkler head is the most commonly used for residential and small commercial applications.
How do you fix a sprinkler head that won’t rotate?
– Disassemble the sprinkler head. …
– Take off the filter at the bottom of the head. …
– Rinse the filter in a bucket filled with clean water to wash out debris.
– If this doesn’t work you’ll need to have the sprinkler head replaced. …
– If it does work, make sure the head is properly adjusted when you re-install it.
What is the most efficient lawn sprinkler?
– Our pick. Melnor XT4200M. The best sprinkler. …
– Runner-up. Melnor XT4200. Lighter construction, just as good performance. …
– Also great. Gardena Oscillating Sprinkler ZoomMaxx. The best coverage and customization.
Why is my hunter sprinkler head not rotating?
The most common reason for a sprinkler to stop rotating is the accumulation of debris in the filter. … The Hunter gear drive mechanism is sealed from dirt and debris. Age, excessive pressure, or poor water quality may eventually allow particles of contamination to enter the gear drive.

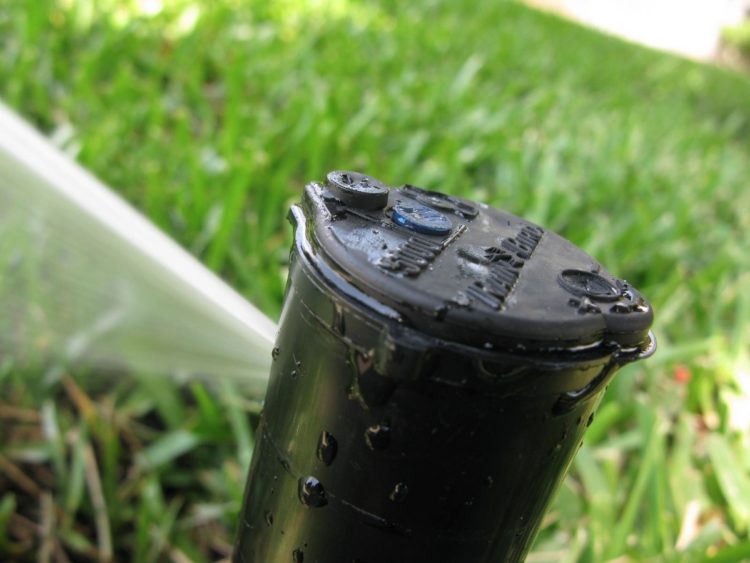

How do you rotate a hunter sprinkler head?
Insert the plastic key end of the Hunter wrench into the adjustment socket . While holding the nozzle turret at the right stop, turn the wrench clockwise. Each full 360° turn of the wrench will increase the arc 90°. Adjust to any arc between 40° and 360°.
Why is my sprinkler not rotating?
Cause 1: Dirt / Debris clogging the filter and gear drive: Rotary sprinklers operate on a “gear drive” system. … Solution: If the sprinkler is no longer rotating and the water flow coming out of the sprinkler has decreased, you can first try cleaning out the filter by removing the pop-up assembly from the main body.
How do I adjust my sprinklers?
To adjust a stationary sprinkler head, find the spray radius adjustment screw on top of the nozzle. You may need to adjust it slightly to point the water spray in the direction of your lawn that you want it. Turning it clockwise can also help lower the water pressure on a spray head that is shooting too much water out.
Are Rain Bird Sprinkler heads interchangeable?
They did change the sprinkler body & screw-on cap but the internal filters & spray nozzles are still interchangeable with the old heads.
How do I make my sprinkler rotate?
– Turn off the water and lift the sprinkler tube out of the ground with pliers.
– Look for a marker or marks on the edge of the nozzle. Rotate until the mark is aligned with the correct angle to cover your yard.
– Turn the entire sprinkler until the angle is corrected.
What is the range of a sprinkler head?
Usually, the water that is pumped out can reach about 3 to 15 feet. The fixed spray can be adjusted to fit the targeted area and might range from 40 degrees to a full 360 degrees, depending on the goal of that particular sprinkler head.
How high should a sprinkler head be?
The correct height for a sprinkler head is to have the top of sprinkler head just above the soil surface. No more than a quarter of an inch above the ground level. This lowers the tripping hazard, and a lawn mower can go past it without causing any damage.
How do you fix a rotating sprinkler head?
