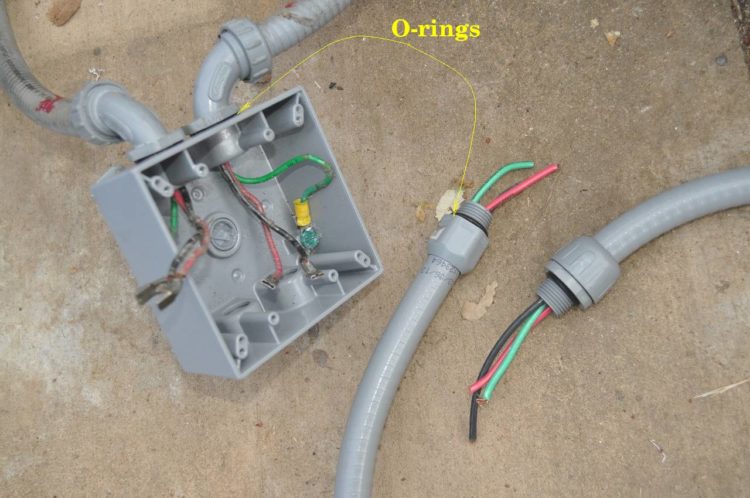

The general rule for securing and supporting FMC is to fasten it within 12 inches of the box and secure it no further than every 4.5 feet. If the FMC is installed above an accessible ceiling, exception 4 allows the support spacing to be increased to 6 feet “from the last point where the raceway is securely fastened”.
– Step 1 – Check Your Conduit Size. Flexible electrical conduits come in many sizes and varieties. …
– Step 2 – Check the Knockout Hole Size. …
– Step 3 – Attach Connector into Conduit. …
– Step 4 – Snap Connector into Knockout Hole.
Thereof, How do I connect flex conduit to box?
– Step 1 – Check Your Conduit Size. Flexible electrical conduits come in many sizes and varieties. …
– Step 2 – Check the Knockout Hole Size. …
– Step 3 – Attach Connector into Conduit. …
– Step 4 – Snap Connector into Knockout Hole.
Also to know is, How do you attach conduit to a wall?
Subsequently, question is, How do you run a wire through a flexible conduit? – Tie a string to a long, thin nonflexible rod.
– Push the rod and string through the conduit until the string emerges from the opposite end.
– Tie electrical wires onto the string.
– Pull the rod back through the conduit, bringing along the wires. This method works best for shorter pieces of conduit.
Also, Can you use a conduit body as a junction box?
[314.16(C)(2)] Since a conduit body can function as a junction box, the volume allowance required for the conductors must not exceed the volume of the conduit body.
How do you join two pieces of conduit?
What is an LB conduit body used for?
LB Conduit Body Electricians use these conduit bodies where circuit pass from an exterior wall.
How do you connect flexible conduit to rigid conduit?
Can an LB be used as a junction box?
LB stands for line box. … Also Know, can an LB be used as a junction box? Only LB condulets with legibally marked cubic inch capacity marked in that LB may be used to splice conductors. If that LB condulet is not marked with its cubic inch capacity inside that LB then you must not use that unmarked LB as a junction box.
Can you run 2 wires in conduit?
Yes, it is legal to use conduit as a protective shield (in this case you are not using it as a wiring method). In this case the conduit fill is irrelevant, it just needs to fit (and be 4 cables or less due to derate). You will need 3/4 conduit or you will lose your mind trying to fit it.
How far apart should conduit be supported?
Shall be securely fastened within 3 feet of a box, conduit body, or other point of termination. Support shall comply with Table 352.30, based on the size of the conduit. Shall be secured and fastened within 3 feet of a box, conduit body, or other point of termination and within every 10 feet thereafter.
What is a conduit cover?
Conduit Covers’ products quickly and effectively cover the ends of all types of hoses, pipes, lines, fittings, and connectors for the purpose of preventing contamination ingression and environmental damage. … Conduit Covers’ patented products are applicable for a variety of industries.
Is it permitted to use flexible metal conduit?
You may use flexible metal conduit in any length as long as you follow the Code rules for support (Sec. 350-18) and grounding (Sec. … 250-18 limits flexible metal conduit to 6 ft only for grounding. In lengths over 6 ft, you must install a separate grounding conductor.
What are the different types of conduits?
– Rigid Metal Conduit—RMC and IMC.
– Electrical Metallic Tubing—EMT.
– Electrical Non-Metallic Tubing—ENT.
– Flexible Metal Conduit—FMC and LFMC.
– Rigid PVC Conduit.
What type of conduit should be used outdoors?
PVC conduit
When would you use a junction box?
– Encloses the wiring connections and protects them from physical damage.
– Provides a means for mounting the electrical device and securing the electrical cable(s) serving the device.
– Prevents accidental contact with live wires and terminals.
Do I have to use conduit in walls?
Smaller cables shall be run either through bored holes in joists or on running boards. … So basically if the cable is on the ceiling, it does not require conduit. If the cable is run along walls, it requires some form of protection. This protection can be conduit, or some other form of protection.
