Thereof, How many wires should a start/stop station have?
3 wire
Also to know is, What is a three wire control circuit? The three-wire control circuit is the most widely used motor control circuit. … This control circuit gets its name because of the auxiliary contacts that are connected in parallel with the start button. The auxiliary contacts seal in the circuit to keep the coil energized after the start push button is released.
Subsequently, question is, What is a start/stop control circuit? A very useful Ladder Logic Programming Pattern is the Start/Stop Circuit. This pattern is an extension to the Sealed in Coil pattern and is similar to the State Coil.
Also, How does a push button starter work?
The fob must be inside the car for the car’s computer system to be able to connect with it, allowing the driver to start the car simply by pushing a button. The key fob is essentially a transmitter that sends a low-frequency signal to the car.
What is a 3 wire control circuit?
Three wire control means, one wire for stop command (“NC” Pushbutton) and two wires for drive start command of “Forward and Reverse(“NO” Push button)”. In three wire control, the stop command is provided separately.
What is 2 wire and 3 wire control?
Two wire control means, two wires for drive start command of “Forward and Reverse”. … Three wire control means, one wire for stop command (“NC” Pushbutton) and two wires for drive start command of “Forward and Reverse(“NO” Push button)”.
When adding an additional start button to a motor control circuit How should it be wired?
Each additional start button should be connected in parallel with the first start button, and all additional stop buttons should be connected in series with the original stop button. Figure 1 shows examples of the additional start and stop push buttons in a three- wire circuit.
Is push to start better?
The push button start system is good if you prefer added security and the convenience of a keyless system, so long as you understand the risks, ensure you have the key on your person when you leave, and know how to use the manual system should there be any malfunction.
What are the four components of a three wire control circuit?
A typical 3-wire control circuit is shown in Fig. 2 (click here to see Fig. 2). It consists of a normally closed stop button (STOP), a normally open start button (START), a sealing contact (M), and the coil of a magnetic motor starter.
How do you wire a start/stop station?
How do you wire a 3 wire motor?
How does hand off auto switch work?
The second switch, out at the control station itself, could then be labeled as “Hand-Off-Auto” which would designate the Mode of Control. In “Hand” the motor would run continuously and in “Auto” the motor would start and stop by a PLC or other controller.
Why the normally hold in contact is connected in parallel with the start button?
The purpose of the hold in contact is to provide a current path through the relay coil when you release the start button. That is why it is wired in parallel with the start. Similarly, the stop is wired in series to break the relay circuit and hence stop the motor.

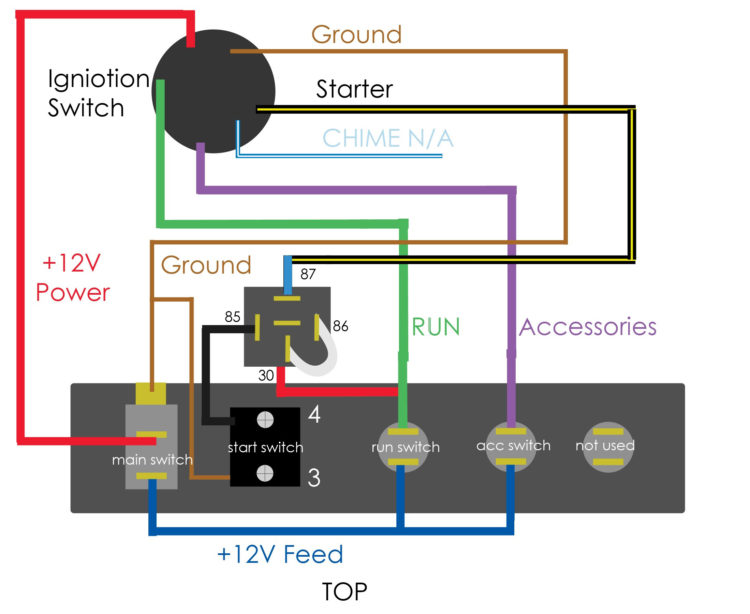

How do you hook up a toggle switch to a car?
– Locate a fused line as near as possible to the proposed location for the toggle switch, using a test light.
– Mount the toggle switch. You can use a switch panel for this, or drill a hole for the switch to mount through. …
– Connect a wire from the fused source to the center terminal of the toggle switch.
How much does it cost to add push to start?
Based on a brief survey of Compustar dealers, a basic, short-range remote starter installed on a non-luxury vehicle will range from $249.99-$399.99.
What happens when push start doesn’t work?
If you are confident that your smart key fob is inside the vehicle and has enough juice, but your push button start still isn’t working, it could be because you weren’t pressing the brake pedal or were pressing it too gently. Make sure your foot is firmly pressing the brake pedal and try again.
