Thereof, How do you wire up a single light switch?
Also to know is, How do you wire two light switches with the same power source? If you’ve mounted two switches in the same electrical box, prepare two black wires. Connect one end of the 6-inch wire to the top terminal of the first switch. Twist the other end together with the black wire from the incoming circuit cable and the black wire from the cable going to the second switch to form a pigtail.
Subsequently, question is, Does it matter which wire goes where on a light switch? The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.
Also, How do you wire a single light switch?
Can you wire a 2 way switch 1 way?
A one way light switch has two terminals which is a common marked as COM or C. The common is for the live wire that supplies the input voltage to the switch. … If you’re circuit is only one way, you can ignore this terminal and it will still work. This is because two way switches can also be used on one way circuits.
Does it matter which wire goes where on a single pole switch?
If it’s a single pole switch with two terminals, the answer is no. One wire is the power to the switch and the other wire goes to the light. … The black wire (hot) is switched so both black wires are connected to the switch.
What happens if you wire a light switch wrong?
You could put the switch on the neutral wire and everything would work, but it would leave voltage potential to ground in the light when it is switched off. That makes it a bit hazardous for changing light bulbs. If you became an electrical path to ground through a wet floor or something you could get a shock.
Where does the hot wire go on a single pole switch?
The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.
What is the common wire on a 2 way switch?
When wiring a 2-way switch circuit, all you’re really doing is controlling the power flow (Switching off/on) to the load (a light, lamp, outlet, ceiling fan etc..) Now a typical circuit will contain a 3-wire cable known as romex. The cable consist of a black wire, a white wire and a bare copper wire.
How do you wire a double light switch?

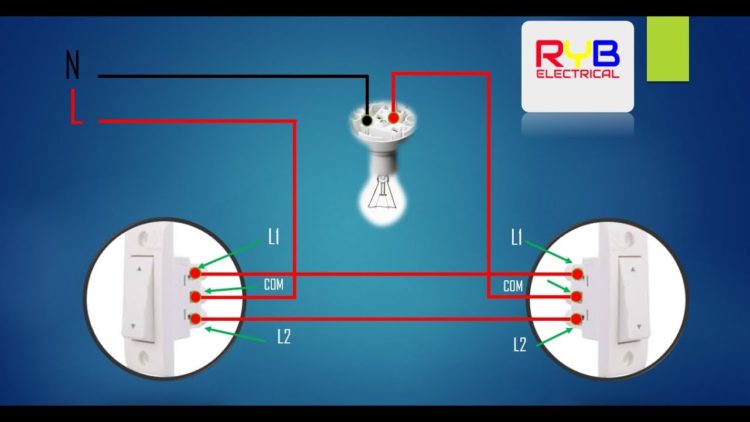

How do you wire up a 2 way switch?
When wiring a 2-way switch circuit, all you’re really doing is controlling the power flow (Switching off/on) to the load (a light, lamp, outlet, ceiling fan etc..) Now a typical circuit will contain a 3-wire cable known as romex. The cable consist of a black wire, a white wire and a bare copper wire.
How do I wire a 2 way light switch?
How do you wire multiple lights to one switch?
Can I use a 2 way light switch as a 1 way?
Yes, a two way switch can easily operate as a one way. A two way switch is, at least in all the cases I know of, identical to a one way switch, except that it has two sets of contacts and a common. Simply omit wiring the second contact, and, of course, omit the second switch.
What color wire goes where on a light switch?
When you turn on a light switch, power goes to the light through the “hot” (black) wire and then back through the neutral (white) wire to the ground.
What is a 2 way switch?
A two way light switch is a switch that can be used in conjunction with another two way light switch to turn a light (or lights) on and off from more than one location.
