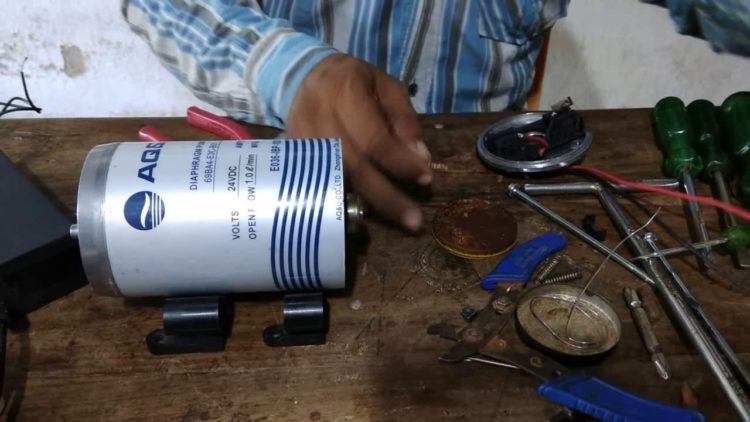

It plugs into a standard wall outlet and converts to the voltage (most commonly 24 volts) required by the pump. The large object is the pump itself. The third device is the pressure switch. It monitors the water pressure in the RO unit’s storage tank and turns the pump off and on in response to storage tank pressure.
Thereof, How do you prime a booster pump?
Also to know is, How do you install a reverse osmosis booster pump?
Subsequently, question is, Do I need a booster pump for my RO system? Do You Need a Booster Pump? Most city water reverse osmosis users have enough city water pressure to run their RO unit nicely and they do not need a booster pump. For example, if your city water pressure is 60 psi or more, there is little to be gained by adding a booster pump.
Also, How do I check the pressure on my booster pump?
To see if the pressure tank is working properly turn off the power to the well/booster pump and turn on a faucet letting all the water pressure out of the system. When water stops flowing or slows to a trickle, use a pressure gauge to check the bladder pressure on the pressure tank Schrader Valve.
Where should I install a booster pump?
Booster pumps are usually installed just after the main water shutoff valve. (Main water shutoffs are usually located in the basement.) You also want to install the pump in a location that is easy to access. If there is an emergency, and you need access to the pump, you don’t want it to be an issue.
How do I increase my RO pump pressure?
Adding an electric booster pump increases the RO production rate, boosts the pressure tank storage volume, rejects more contaminants and increases faucet flow rate even if the reverse osmosis membrane pressure rating is met by the water supply.
How do you install a pressure booster pump?
– Turn off the main water valve at the meter.
– Use emery cloth to clean the water-supply pipe coming into the house.
– Cut into the water-supply pipe using a tubing cutter.
– Set the pressure-booster system in place and cut and assemble copper pipe and fittings to run from the booster to the existing water-supply pipe.
Why does my reverse osmosis system have low pressure?
Clogged RO Filters: If you forget to change your water filters, with time your system will produce less and less water. Clogged or fouled RO water filters is the most common reason for a slow-filling RO tank and faucet flow. … Pressure in Tank: You might have low air pressure inside the RO tank itself.
How do I connect my reverse osmosis booster pump?
How does a pressure booster pump work?
How do booster pumps work? Most are centrifugal pumps, relying upon one or more impellers to draw the pumped fluid into the intake of the pump, and to boost its pressure as the fluid passes through the impeller and the volute or diffuser casing. Some are single-stage, meaning that they have a single impeller.
How do you hook up a water pressure booster pump?
– Turn off the main water valve at the meter.
– Use emery cloth to clean the water-supply pipe coming into the house.
– Cut into the water-supply pipe using a tubing cutter.
– Set the pressure-booster system in place and cut and assemble copper pipe and fittings to run from the booster to the existing water-supply pipe.
How do I increase water pressure in my reverse osmosis?
Adding an electric booster pump increases the RO production rate, boosts the pressure tank storage volume, rejects more contaminants and increases faucet flow rate even if the reverse osmosis membrane pressure rating is met by the water supply.
Can I put a booster pump on my well?
If you have really low water pressure coming from the city supply or have low pressure because you are on a well, installing a pressure booster pump could be the solution you have been looking for. … What you will not normally get with these units is a way to control how much extra pressure it provides.
How can I increase water pressure without a pump?
– Replace Clogged Pipes. If you suspect that clogged pipes could be affecting the pressure of your water, have them checked. …
– Replace the Pressure Regulators. …
– Check for Leaks in the Plumbing System. …
– Low-hot water pressure in the shower. …
– Adjust Valve.
How do you check water pump pressure?
How much pressure is required for reverse osmosis?
This process requires that a high pressure be exerted on the high-concentration side of the membrane, usually 2–17 bar (30–250 psi) for fresh and brackish water, and 40–82 bar (600–1200 psi) for seawater, which has around 27 bar (390 psi) natural osmotic pressure that must be overcome.
