– Max lift: 3.66m (12ft) @ 30m (100ft) distance with a 10mm line. – Remove any non‑return valve in the feed line & fit bypass screw to boiler burner pump. – Max nozzle capacity: 110L/hr. – Max return oil pumped into the Tigerloop® 120L/hr (at min output of burner).
The Tiger Loop can draw fuel from up to 30m away with a 10mm fuel line. Besides, is a Tiger Loop necessary? Risk for leakage The one-pipe system without a Tigerloop® is not to be recommended. This is due to the increased risk of breakdowns, as gas/air bubbles cannot be removed from the oil pump during operation.
Thereof, How does Tiger loop work?
The Tiger Loop works by the oil pump in the burner creating suction to the Tiger Loop. This suction spins the internal disc in the Tiger Loop and this creates suction on the fuel line to the fuel tank.

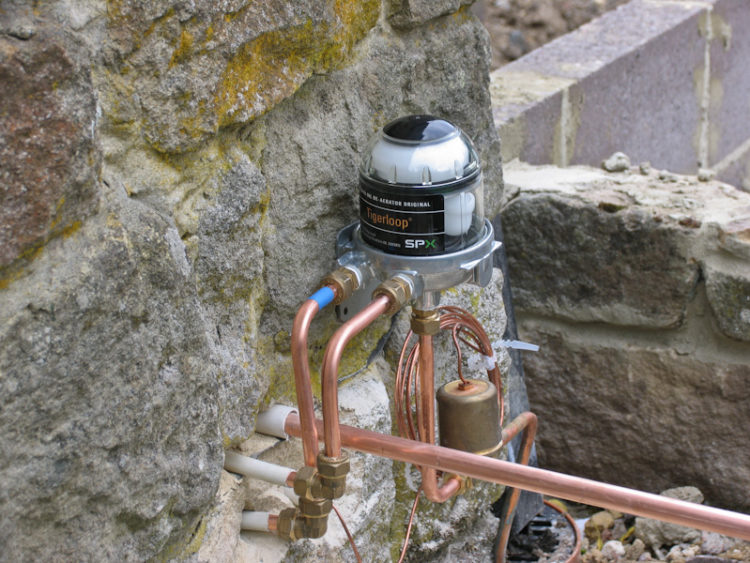

Also to know is, What is a Tiger loop system? Tigerloop® sits between the oil tank and the burner in an oil heating system, so that all oil passes through it. It continuously and automatically removes air from the oil before passing it to the burner, so that bubble-free oil is burnt, eliminating poor combustion, noise, damage, soot, and smoke.
Subsequently, question is, How do you set up a tiger loop?
Also, How do you clean a tiger loop?
Cleaning Tiger Loop I have cleaned them by removing the loop from the system pouring in kerosene, shake, empty, repeat several times. If that doesn’t do it, you are likely looking at replacing the Tiger Loop.
Should a tiger loop be full of oil?
The upper chamber should not have enough oil in it to cause the upper chamber float to float. If so, the Tigerloop must be replaced. With all models, the fuel level can change over time, especially after an oil delivery which can introduce air into the dome.
How much oil should be in a tiger loop?
The Tigerloop is rated for a maximum firing rate of 20 gph, and a maximum return oil of 30 gph. This is completely adequate for 1 burner, but you can approach or exceed the maximum when you add the second burner. The problem is that with some rebuilt pumps, you may have a larger gear set inside the pump.
How does a tiger loop work?
The Tiger Loop works by the oil pump in the burner creating suction to the Tiger Loop. This suction spins the internal disc in the Tiger Loop and this creates suction on the fuel line to the fuel tank.
What is a Tiger loop on a boiler?
The Tiger Loop is a lifting and de aerating device that improves performance and provides convenience to diesel (oil) boiler installations. … The Tiger Loop is installed next to the boiler and still has a single fuel line from the fuel tank to the Tiger Loop incorporating a filter and fire stop valve.
What Does a Tiger loop do?
The Tiger Loop is a lifting and de aerating device that improves performance and provides convenience to diesel (oil) boiler installations. However if there is a height difference between the tank and the boiler (the tank being lower) or a long distance between the tank and the boiler, a Tiger Loop is used.
Can Tigerloop be fitted inside?
The New Bio Tigerloop is constructed externally of metal materials making it suitable for both indoor and outdoor installation. The Bio Tigerloop automatically and continuously de-aerates the fuel, venting to atmosphere. This is the only way to prevent air from going to the burner.
How high does an oil tank need to be?
The most common above ground oil tank size is 275 gallons although capacity can range from 105 gallons to 500 gallons. A quick and simple way to determine if your oil tank has a capacity of 275 gallons is to measure the height, width and length of the tank.
Where should an oil tank be placed?
Tanks shall be installed on the lowest floor of the dwelling. Inside tank(s) shall be located not less than 5 feet (1.5 m) from any fuel-fired equipment. The tank shall be placed in an area where it is unlikely to be adversely affected by normal household activities.
Can you put an oil tank outside?
They Can Be Indoor or Outdoor While a buried oil tank is typically kept outside, homeowners have the option of placing above-ground tanks inside or outside. It’s important to consider the pros and cons of each location and work with a professional installer to make sure it’s secure.
Can I replace my own oil tank?
For most homeowners, installing a heating oil tank is not a do-it-yourself project. There is an oil tank installation code and oil tank installation regulations that govern everything from the manufacture, installation, servicing and removal of oil tanks.
How many gallons is a normal oil tank?
275 gallons
What happens if I run out of oil for my boiler?
What Can Happen If Your Oil Tank Runs Out. Running out of heating oil can cause the furnace to build up sludge which clogs the filter and prevents the heating system from working properly. Sludge occurs when too much dirt, dust, or grime settles in your oil tank, typically at the bottom.
