28 days

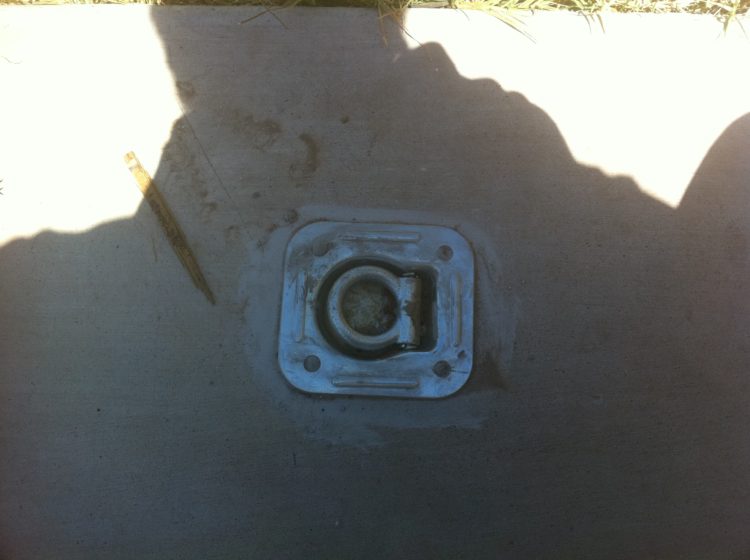

– Step 1: Determine Location for Tie Down Anchor. …
– Step 2: Set Anchor into Concrete. …
– Step 3: Drill Hole for Anchor. …
– Step 4: Clean Out Hole. …
– Step 5: Apply Concrete Adhesive to Anchor. …
– Step 6: Place Tie Down Anchor in Concrete. …
– Step 7: Finish Area with Liquid Concrete.
Thereof, How deep do concrete anchors need to be?
The hole should be drilled 1/4″ to 1/2″ deeper into the base material than the anchor will penetrate. This allows for any material to fall when the anchor is inserted into the hole. After the hole is drilled, it must be cleaned of all debris, material or dust.
Also to know is, How deep do wedge anchors need to be? Diameter of Wedge Anchor Minimum Embedment Depth
———————— ———————–
7/8” 3-7/8”
1” 4-1/2”
1-1/4” 5-1/2”
Subsequently, question is, How deep do anchor bolts need to be? The minimum embedded depth is 7 inches (178 mm) and the minimum diameter required is 1/2″ (12.7 mm). These are minimum requirements, however, which is why designers often will decrease the spacing requirement or increase the diameter of the bolt in order to allow for a margin of error.
Also, How deep should anchor bolts be?
Ensure the area is wide and deep enough to provide proper support. Diameter of hole should be 3 to 4 times the diameter of the fixture being placed and the depth of the hole must be 8 to 12 times the fixtures diameter. The area receiving the material should never be less than 2” deep and 2” wide.
How do you anchor metal to concrete?
First, drill the proper size pilot hole (3/8-in., 1/2-in., etc.) through the wood or metal and into the concrete. Slip the concrete sleeve anchor into the hole. Hold the object you’re fastening firmly against the wall because the anchor will draw it only slightly tighter as you tighten the screw or nut.
How do you measure anchor bolts?
– Remove any debris of the nut.
– If possible use a removed nut.
– We are looking for the Outside Dimension of the bolt that will thread into the nut. Root to Root of the nut threads.
– The root of most nuts can be seen on the top finish of the nut.
– Take notes of nut size in the field.
How long should concrete cure before drilling anchors?
3 days
What are the different types of concrete anchors?
– Wedge Anchors. Designed for light to heavy-duty anchoring into solid concrete. …
– Sleeve Anchors. For light to medium-duty fastening/anchoring to concrete, brick or block base material. …
– Tapcon® Screws. …
– CONFAST® Screws. …
– Drop-In Anchors. …
– Machine Screw Anchors. …
– Leadwood Screw Anchors. …
– Single Expansion Anchors.
How long do anchor bolts need to be?
Bolts shall be spaced not more than 6 feet (1829 mm) on center and there shall be not less than two bolts or anchor straps per piece with one bolt or anchor strap located not more than 12 inches (305 mm) or less than 4 inches (102 mm) from each end of each piece.
How much weight can a 3/8 concrete anchor hold?
These concrete anchor bolts, or bolt anchors for wood, are available in several sizes and will hold up to 200 lbs. The sleeves pinch the sides of the predrilled hole and get tighter as you tighten the screw or bolt.
How long before I can screw into concrete?
Let the concrete cure for at least 3 days before drilling. Waiting 7 days would be best before installing the anchors. Expansion anchors exert a great deal of outward force against the concrete and it takes at least 5-7 days for concrete to cure to 60% of its designed strength.
What is a concrete anchor?
Anchor bolts are used to connect structural and non-structural elements to concrete. The connection can be made by a variety of different components: anchor bolts (also named fasteners), steel plates, or stiffeners. Anchor bolts transfer different types of load: tension forces and shear forces.
How many tie downs should a mobile home have?
For example, a 65′ trailer would need 2 to 3 vertical tie downs per side, or 4 to 6 tie downs per side if diagonal tie downs are used, depending on which wind zone it’s in.
How do I choose an anchor bolt?
You have to think about the type and strength of the concrete, the fixture size and location, the type of environment, and the desired look of the finished project to consider when choosing the right anchor bolt for the job. The correct sizing and spacing of anchor bolts is critical in any structural application.
How do you measure anchor bolt length?
Typically, anchor bolt sizes range from 3/8″ to 1″ in diameter, and lengths span from about 6″ to 30″. Length is measured from under the bent leg to the threaded end of the bolt.
How much weight can concrete anchors hold?
Masonry and concrete anchor types are considered light-duty, medium-duty or heavy-duty, based on how much weight they can support. Light-duty anchors are good for wall hangings that weigh up to 50 pounds. Medium-duty anchors are good for wall hangings that weigh up to 200 pounds.
