four to eight hours
Thereof, What happens if you put a filter drier backwards?
When installing a new filter drier, an arrow on the filter drier’s housing will indicate which direction refrigerant is designed to flow. If installed backwards, the filter drier will become useless.
Also to know is, Where do you put filter drier?
Subsequently, question is, What does a filter drier do in the refrigeration cycle? A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to adsorb system contaminants, such as water, which can create acids, and two, to provide physical filtration.
Also, Is a filter drier necessary?
There is no typical lifespan on a filter-drier. If the system is clean and the installation was good, the drier could stay in a system forever. And, since many manufacturers include a small filter-drier in the original equipment, it may never be necessary to install another one.
When should a filter drier be replaced?
All filter driers should be replaced every 2 years or by manufacturer’s recommendation. The Receiver Drier’s function in an automotive a/c system is to filter foreign material, remove moisture from refrigerant and to act as a reservoir to supply liquid refrigerant to the TX valve.
How long does it take to change a condenser?
about 3 to 5 hours
Where should a filter drier be installed?
THE SUCTION LINE DRIER LOCATION – A filter-drier should be installed in the suction line to clean up a heat pump after a severe hermetic motor burnout. First, make sure the burnout is “severe” by testing the acidity of the oil from the burned out compressor using the Sporlan TA-1 Acid Test Kit.

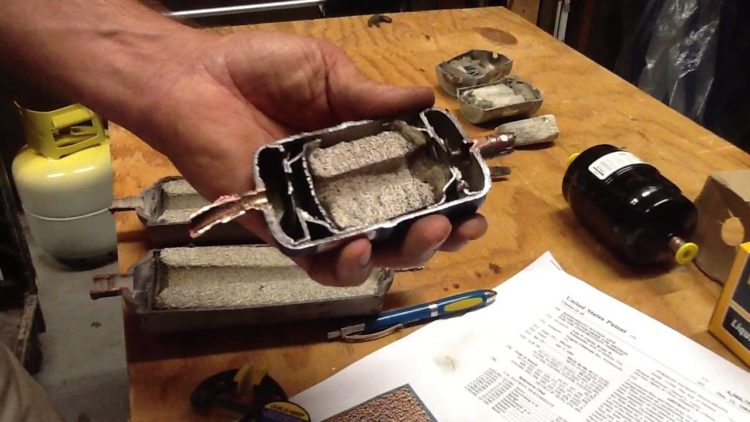

What’s inside a filter drier?
This particular model has a Solid core, 80% of which is a molecular sieve and 20% being activated alumina. … The aluminium oxide is added in there to capture and retain acids. Not all filter driers will have activated alumina inside them it depends on the application.
How much does it cost to replace a condenser?
Replacing an AC condenser unit costs anywhere from $1,000 to $3,000 or more. It’s not a great job for a DIYer since you’ll be messing with electrical and refrigerant lines. In most places, you need a license to handle freon.
Why is the filter drier important?
A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to adsorb system contaminants, such as water, which can create acids, and two, to provide physical filtration. Evaluation of each factor is necessary to ensure proper and economical drier design.
What should the temperature difference between the dryer filter?
Showing Temperature Differential Across a Liquid Line Filter Drier. Recommended: Temperature or Pressure Drop across a Drier is No More than 2 psig or 2 Degree’s F.
How long does it take to install a new HVAC system?
Generally speaking, a full HVAC system replacement will take around three days to complete; one day for the changeout, and two days to do the ductwork.
What is the filter drier?
Filter driers are devices used in a HVAC system that are a combination of filter and dryer (or drier). … Sometimes it is also referred to as dehydrator or dryer. It is necessary to remove moisture from the system otherwise it may freeze inside the tube causing the flow of refrigerant to be restricted.
Does filter drier size matter?
As there are usually several filter sizes available for a given connection diameter, the drying capacity is also a good selection criterion. For quick selection without further consideration of the drying capacity or liquid capacity, you should always choose a slightly larger drier.
Can I replace just the AC condenser?
Your Condenser Unit Could Solely Be to Blame for a Broken AC A common question we get is if you can replace just the condenser. The short answer is yes, you can. Some technicians often do in some cases. Perhaps if you have a newer system and the damage occurred due to outside forces, such as inclement weather.
Can I install my own AC condenser?
While most HVAC companies will recommend a specific brand or type of AC unit, homeowners who source and install their own have the ultimate control over the process. If you find a brand that you like but your local HVAC place does not carry it, you can go DIY and still get the specific product that you want.
