about 45 minutes
Thereof, Can Nest thermostat work without C wire?
In most cases, a Nest Thermostat can work without a common wire. Without a common wire it charges its internal battery using power from the heating and cooling wires. With some HVAC systems, such as micro-controller-based systems and certain gas valves, will require a C-wire to work with Nest Learning Thermostat.
Also to know is, Can I use the G wire for the C wire? Option #3: Use a G-Wire as a C-Wire If there is no hidden C-wire, you can use a G-wire instead. However, you will not be able to use your fan independently when the heating or cooling isn’t running. Also, many HVAC systems are incompatible with this solution, including: HVAC systems using electric heat.

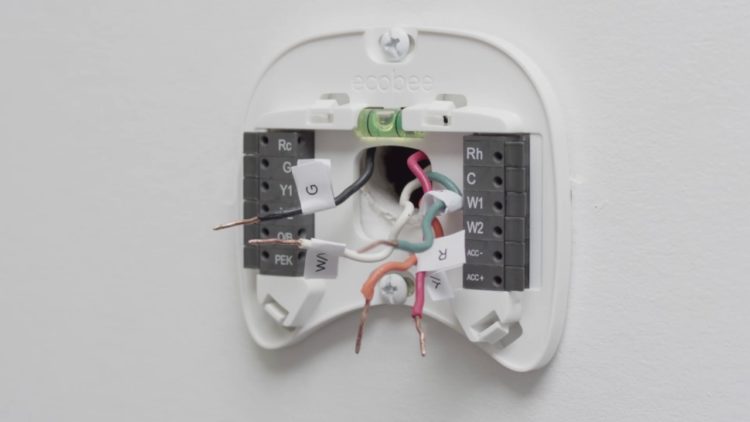

Subsequently, question is, Can you install ecobee yourself? Install your ecobee4 with confidence With everything you need in the box, installing the ecobee4 yourself is simple.
Also, What can I use if I don’t have AC wire?
How do I make AC wire for my thermostat?
Start by removing the access panel on the furnace, and locating the thermostat wires. Remove the wire from the G terminal, and connect it to the C terminal. Using a short piece of 18 AWG wire, make a jumper and connect it between the Y and G terminals (this is only required if you have both heat and central air).
What is G wire on thermostat?
G: This wire controls the blower fan, which is responsible for pushing the warm or cool air through all the vents in your house. It is not a ground wire! C: This stands for the “common” wire in an HVAC system, and it provides power to the thermostat.
Can I use my G wire as AC wire?
Option #3: Use a G-Wire as a C-Wire If there is no hidden C-wire, you can use a G-wire instead. However, you will not be able to use your fan independently when the heating or cooling isn’t running. Also, many HVAC systems are incompatible with this solution, including: HVAC systems using electric heat.
How do you install a thermostat without C wire?
How does nest work with only 2 wires?
Nest E and Nest Gen 3 are both 2 wire hookup compatible. … The Nest Thermostat is compatible with 2 wire low voltage HVAC systems that are either heat only systems or cooling only systems.
Do I need C wire for nest?
Nest thermostats don’t typically need a C wire For comparison, a typical 40W light bulb that’s only used 4 hours per day consumes about 5 kWh/month. So even though Nest thermostats have Wi-Fi, activity sensors, color displays and more, they typically don’t need a C wire to stay charged up.
What are the 5 thermostat wires?
– White. The white wire connects to your heat.
– Yellow. The yellow wire connects to your compressor.
– Green. The green wire connects to the fan.
– Orange. This wire connects to your heat pump (if applicable).
– Red (C). …
– Red (H). …
– Blue.
How do I connect my Nest thermostat without C wire?
Is RC the same as C wire?
Though it is a common notion, it may be incorrect to state that the C-wire powers the thermostat. Typically, the wires that give the power supply (usually termed as the ‘hot’ wires) are marked Rc (for cooling) and Rh (for heating). … ‘ If your system has a common wire, it will be marked ‘C’ at most times.
Is C wire the same as RC wire?
Your Rh and W terminals control your heat. The C and Rc terminals are what powers the thermostat. … Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat.
How do I install ecobee kit at home?
What is RC wire on thermostat?
Red or “Rc” Wires Red wires, specifically Rc wires, are responsible for 24-hour volt AC power from your transformer. Rc wires are only for air conditioning systems or dual transformer systems. … These wires only connect to your cooling system. Rc wires connect to the RC terminals on your thermostat.
