So a 240-volt circuit running on a 20-amp, double-pole breaker, can have any combination of heaters up to 3,840 watts. For example, using just one thermostat, you can install: Two 1,500 watt heaters, or. Three 1,000 watt heaters, or.
– Connect one supply wire to one heater wire.
– Connect remaining supply wire to remaining heater wire.
– Replace wiring compartment cover and secure with screw previously removed.
– Turn power back on at the electrical panel board.
Thereof, Does a baseboard heater need a dedicated circuit?
Baseboard heaters are in need of a dedicated circuit to supply enough power for proper functionality. The general rule of thumb is that baseboard heaters need a 20-amp circuit that requires a 12-gauge wire for either type heater.
Also to know is, How many baseboard heaters can be on a 15 amp circuit? Currently there are 3 baseboard heaters (750, 1000 and 1500) 3250 watts total running on 2 tied 15 amp breakers.
Subsequently, question is, How many amps does a baseboard heater use? 20-
Also, How do you wire multiple baseboard heaters?

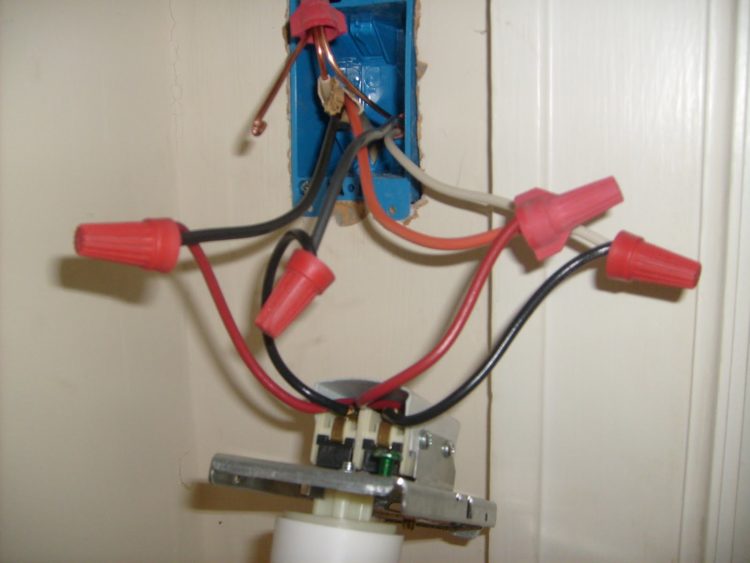

Connect the two wires bringing power from the breaker panel to the two “Line” terminals. Connect the two wires carrying the power to the baseboard heaters to the two “Load” terminals on the thermostat. Connect the two bare ground wires together using a wire nut. Install the thermostat in its box.
What size wire do I need for a baseboard heater?
A 240-volt baseboard heater requires its own dedicated 20-amp or 30-amp 240-volt electrical circuit. A 20-amp circuit can safely provide 3,800 watts of power, while a 30-amp circuit is suitable for up to 5,700 watts. The standard circuit cable for 20-amp circuits is 12-gauge cable; 30-amp circuits need 10-gauge cable.
How many baseboard heaters can I put on a 30 amp circuit?
three baseboard heaters
What size wire do I need for a 1500 watt heater?
These 3 heaters would require 12/2 wire and a 20 Amp 2-Pole breaker if they were to all be placed on the same circuit. If more heaters are needed either run a new circuit or increase the wire and breaker size to accommodate the load.) A 1500 Watt heater will cost the same to run whether it is 120 or 240 Volt.
What gauge wire do I need for 220 volts?
If you’re wiring a 220v, 20-amp outlet to run power tools, you can use the same 12-gauge wire you would use for a 110-volt, 20-amp circuit. Remember that the cable must have an extra hot wire. If the appliance draws 30 amps, you need a different type of receptacle, and the cable needs to be 10-gauge.
Are all baseboard heaters 240 volt?
Baseboard heaters come in two styles, 120-volt or 240-volt heating styles. Although 120-volt baseboard heaters are the popular choice because it uses only a single circuit, 240-volt baseboard heaters are much more efficient because they utilize both legs of power, cutting the power demand sometimes in half.
What size baseboard heater should I use?
As a rule of thumb, assume a room requires 10 watts of electric heating per square foot of room. In other words, a 10 x 10 room (100 square feet) will require 1000 watts of electric baseboard heating.
What gauge wire do I need for a 30 amp?
10
How many amps is a baseboard heater?
Total Area of Room (sq. ft.) Recommended Heater Rating (watts) Electrical Circuit Size Needed (240 volts)
—————————- ——————————— ——————————————
300 2700 15 amps
400 3600 20 amps
500 4500 30 amps
800 7200 40 amps
How many light fixtures can be on a 15 amp circuit?
30 lights
What size wire do I need for a 30 amp 220v circuit?
For a maximum of 30 amps, you’ll need a wire gauge of 10. The most common household item that requires a 30 amp circuit is a central air conditioner.
What size breaker do I need for a baseboard heater?
A 240-volt baseboard heater requires its own dedicated 20-amp or 30-amp 240-volt electrical circuit. A 20-amp circuit can safely provide 3,800 watts of power, while a 30-amp circuit is suitable for up to 5,700 watts. The standard circuit cable for 20-amp circuits is 12-gauge cable; 30-amp circuits need 10-gauge cable.
How many amps does a 1500 watt heater draw?
12.5 Amps
