The cost to replace your gas stove igniter is between $150 and $300. You might need a replacement if your stovetop won’t stop clicking, the pilot light goes out or your burner won’t light.
You likely will not be able to tell if the igniter is bad by just looking at it. Turn the oven on and then open the broiler drawer. If the glow bar igniter is getting voltage it will glow unless it is broken. If it’s weak, it will glow but it will not pull enough current to open the gas valve.
Thereof, How long should an oven igniter last?
Two – three years
Also to know is, How does an oven safety valve work? Once the oven safety valve’s thermocouple senses appropriate heat, the safety valve opens to allow gas flow to the oven burner where the pilot flame ignites the gas. The main oven burner should usually light in less than 1-1― minutes after the pilot flame has extended to envelope the safety valve’s thermocouple.
Subsequently, question is, How do you bypass an oven igniter? Remove the mounting screws that connect the igniter to the oven floor. Find the plug-shaped quick disconnect at the bottom of the igniter. This connects the oven’s electrical wires to the igniter. Pull the quick disconnect plug away from the oven and remove the igniter.
Also, How do you clean an oven igniter?
Clean the igniter with a toothbrush to remove dirt and debris. Gently scrub the surface of the igniter with the toothbrush and softly blow on it when finished to remove the debris. This will facilitate better sparking. Clean the pilot hole where the gas comes out when the burners are switched on.
Why do oven igniters fail?
Dear Denise: Your problem is probably with your oven’s igniter. This is the most common reason for oven failure, according to highly rated appliance repair specialists on Angie’s List. This problem normally presents itself with the oven igniter making a “clicking” sound as it attempts to light.
How do you replace an oven igniter?
How do you replace a oven safety valve?

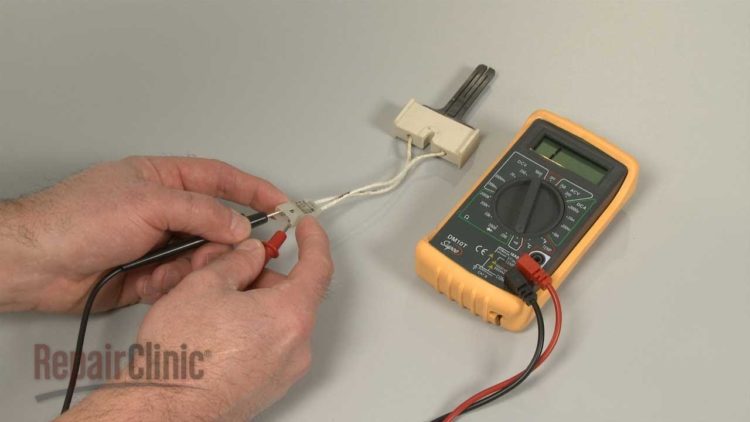

How do you test an igniter with a multimeter?
Touch one multimeter probe to each terminal on the igniter. If the meter reads between 50 and 400 ohms of resistance, on either type of multimeter, the igniter has continuity. If the dial or readout doesn’t change, this indicates no continuity, and the igniter needs to be replaced.
Are oven igniters interchangeable?
This means they are not interchangeable. So, if your range uses the square ignitors, you can only replace it with another square ignitor. The brand doesn’t matter since, by convention, all square ignitors have the same current draw and all round ignitors have the same current draw.
Can you manually light a gas oven with electric ignition?
In the case of a power outage, you can light the surface burners with a match on your electric ignition gas or dual fuel range or gas cooktop. Hold a lighted match to the burner, then turn the knob to the low position. … The oven of your gas range is lit by electric ignition, eliminating the need for standing pilots.
Are all oven igniters the same?
There are pretty much, only two igniters used in all ovens, this square Norton style, and a round Carborundum style. It seems that this is, by far, the most common problem, and just because an igniter glows, doesn’t mean that the current it allows to pass to the gas valve, is addequate to open it.
How do I know if my oven ignitor is bad?
You likely will not be able to tell if the igniter is bad by just looking at it. Turn the oven on and then open the broiler drawer. If the glow bar igniter is getting voltage it will glow unless it is broken. If it’s weak, it will glow but it will not pull enough current to open the gas valve.
Does an electric oven have an igniter?
An oven that won’t heat is usually the result of a faulty igniter (for a gas oven) or heating element (for an electric oven). … Heating elements are usually located inside the oven, while you can access an igniter from underneath. To get to your igniter, remove the broiler or storage drawer.
How do you light an oven without an igniter?
If you don’t have the owner’s manual, open the oven door and look in the bottom of the oven for a small hole marked “Pilot Light” or something similar. If the oven is designed to be manually lit for each use, turn the temperature dial on slowly. The gas should ignite. Remove your hand and the match immediately.
Are oven igniters universal?
The Exact Replacements Universal Oven Igniter is an integral component for repairing your gas powered stove top and oven. It provides the spark needed to ignite the flow of gas into a flame for cooking your favorite foods. It is universal and UL listed for safety and reliability.
How do you test an oven ignitor?
