Besides, how strong is angle iron? Thanks to the 90-degree bend, angle iron is extremely strong along its length, and resists bending. It can easily support larger loads than similar thicknesses of flat steel and it is much stronger than wood or many composites pound for pound.
Angle Iron Strength Because of their shape, angle iron pieces are able to withstand great amounts of pressure. With a single, 90° bend, angle iron is one of the strongest structural support elements. That’s because it evenly distributes stress along its entire length and resists bending.
Thereof, How far can angle iron span?
Type and Size Member Allowable Concentrated Load ( lbs ) At Center Of Span ( ft. )
————- ————– ————————————————————-
Single Angle 3″ x 3″ x 1/4″ 1290
Single Angle 4″ x 3″ x 3/8″ 3330
Single Angle 5″ x 3″ x 3/8″ 4900
Single Angle 6″ x 4″ x 3/8″ 7350
Also to know is, Which way is angle iron strongest? The strongest point on the angle iron is directly above the vertical section. The more you go outward toward the edge of the 4″ section, the angle iron will try to torque.
Subsequently, question is, Which way is angle iron the strongest? The strongest point on the angle iron is directly above the vertical section. The more you go outward toward the edge of the 4″ section, the angle iron will try to torque.
Also, Is angle iron stronger than square tubing?
angle iron. Yes square is stronger, but stronger in a way like “i could run square over with my truck, but not angle” (which you probably could too). I figured angle would be easier to bolt to as well. Square is stronger in enlongation and compression.
What is stronger steel tube or angle?
Steel tubing of any shape is made in one of two ways: hot or cold forming. Generally speaking, cold formed steel tubing is stronger.
Which is stronger round or square pipe?
The answer is round tube has a higher resistance to both flex and torsional twisting than square for a given weight. … If you have a round hole, putting the maximum size round tube through it will be stronger than its’ square counterpart. However, if you have a square hole use square tube.
What lengths does angle iron come in?
Angle iron can be found in lengths of 20′ or 40′ and angles of . 5″ X . 5″ X . 125″ through incremental increases to 8″ X 8″ X 1″.
Which way is C Channel stronger?
Tubing is unidirectional, where as C channel has strength in one direction. Allowing the metal to be thicker and weld stronger.
Does Home Depot cut angle iron?
Does Home Depot cut angle iron? Generally the stores are not able to cut steel angle. Please check with a store associate to find out if they have the capability / equipment.
Why is an I beam stronger than a solid beam?
Basically, an I-beam is almost as strong as a solid beam, but, at about half the material and weight, is much cheaper and more efficient. … The I-beam is much stronger by weight because it distributes a load through the webbing of the beam and is built to distribute a vertical load.
Which is stronger tubing or C channel?
Tubing is unidirectional, where as C channel has strength in one direction. Allowing the metal to be thicker and weld stronger. The tubing is thinner walled all the way around and the welded areas are weaker.
How much does angle iron cost?
Size Weight/ Ft. Pounds Price/ Ft.
—————— —————— ———-
3/4″ x 3/4″ x 1/8″ 0.59 $0.56
1″ x 1″ x 1/8″ 0.80 $0.69
1″ x 1″ x 3/16″ 1.16 $1.00
1″ x 1″ x 1/4″ 1.49 $0.98
How much weight can c channel hold?
Type and Size Member Allowable Concentrated Load ( lbs ) At Center Of Span ( ft. )
————– ———— ————————————————————-
Single Channel 10″ @ 15.3 # 17900
Double Channel 4″ @ 5.4 # 5080
Double Channel 5″ @ 6.7 # 8000
Double Channel 6″ @ 8.2 # 11480

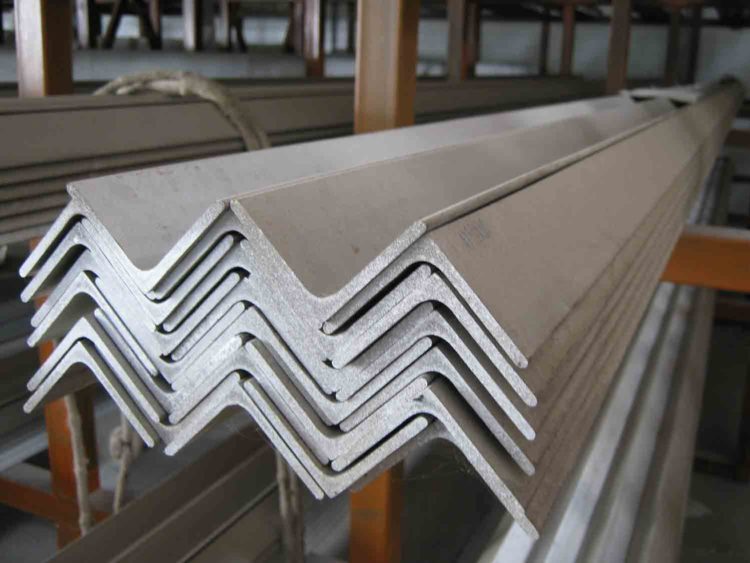

What does angle iron look like?
Steel angle, also named angle iron, or steel angle bar, is basically manufactured by hot-rolled carbon steel or high strength low alloy steel. It has L-cross shaped section with two legs – equal or unequal and the angle would be 90 degree.
Which direction is angle iron strongest?
The strongest point on the angle iron is directly above the vertical section. The more you go outward toward the edge of the 4″ section, the angle iron will try to torque.
How do you cut angles on an iron?
There are several ways to cut angle iron to size when required, including a torch, an angle grinder with a cutoff wheel or a chop saw. If you are doing several cuts in a row, mitered cuts or need absolute precision, the cop saw is the best choice.
