How to check is the water heater backdrafting. The simplest ways to check for backdrafting is to put hands around the draft hood, mirror or glass. You will be able to feel the warm gases coming out while the moist inside the flue gases will make the mirror/glass to fog up if used as the checking tool.
Backdrafting at a water heater is a common defect identified during home inspections, and it’s almost always a condition that the homeowner or occupant is not aware of. … An atmospherically vented water heater is a type with a draft hood, which relies on gravity to get the exhaust gases out of the home.
Thereof, How do you test a water heater Backdraft?

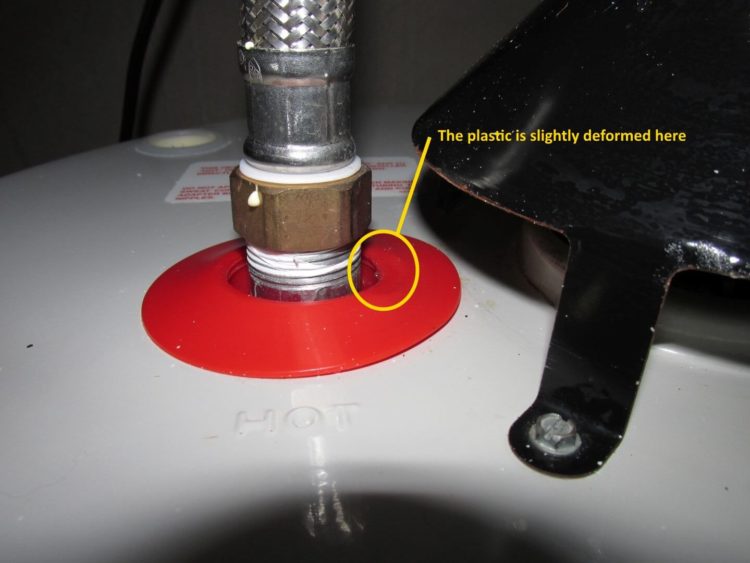

If you can see condensation at the top of a water heater tank, you’re basically watching the water heater backdraft. The photo below shows moisture, rust, and melted plastic at the top of the water heater. Click the photo to see a large version, showing this water heater backdrafting like crazy.
Also to know is, How do you check Backdraft? How to check is the water heater backdrafting. The simplest ways to check for backdrafting is to put hands around the draft hood, mirror or glass. You will be able to feel the warm gases coming out while the moist inside the flue gases will make the mirror/glass to fog up if used as the checking tool.
Subsequently, question is, Is a Backdrafting water heater dangerous? Fuel-fired water heaters, boilers, wall heaters, and furnaces are designed to exhaust the by-products of combustion to the outdoors through a flue. Another way dangerous backdrafting can occur is “through improperly configured flues, or flue blockages” warns Gromicko.
Also, Why is my water heater Backdrafting?
The main reasons for the backdrafting at the water heater are the poor vent installation and the obstructions found in the vent pipe. This problem affects mainly the atmospheric gas type water heaters that use the natural convection for the removal of the products of combustion, known as the exhaust gases.
How do I stop my water heater from Backdrafting?
The simplest way to prevent backdrafting is to provide a source of replacement air (also called combustion air) for your furnace, water heater and fireplace to replace the air that flows up the chimney with the exhaust fumes (Fig. C).
What is Backdrafting on a furnace?
Definition of backdrafting: Back-drafting or feeding of combustion products out of the burner area into the building’s occupied space air occurs when a gas or oil fired heating furnace draws air out of the exhaust flue (or out of a leaky heat exchanger) and sends it into the HVAC duct system.
How do you test a hot water heater vent?
– Turn down the heat at the furnace or boiler if there is a shared vent.
– Close all windows and doors.
– Close any fireplace dampers, if present.
– Turn on any kitchen and bathroom exhaust fans.
– Turn on the clothes dryer.
What creates a backdraft?
A backdraft is caused by the sudden introduction of air into a fire that has depleted most of the available oxygen in a room or building. … When a fire has depleted most of its oxygen, the flames will die down, but the fuel will still burn in a smoldering state and still generate heat, like with charcoal.
How do I stop my furnace Backdraft?
The simplest way to prevent backdrafting is to provide a source of replacement air (also called combustion air) for your furnace, water heater and fireplace to replace the air that flows up the chimney with the exhaust fumes (Fig. C).
How do you seal a hot water heater vent?
Fill any voids with pieces of gravel or brick, and then seal the increaser in place with furnace cement. Install smoke caps in the smaller holes and seal them with furnace cement. Install an increaser on the flue base on the water heater.
What causes a water heater to backdraft?
The relatively small burner on the water heater may not generate enough heat to warm up the chimney or vent, which can lead to backdrafting. In many cases, a new vent liner will be installed to allow the water heater to vent into a smaller space. … An obstructed chimney or vent will almost certainly cause backdrafting.
Can a water heater be vented out a sidewall?
There are three types of venting and only a power vent is allowed to terminate at a sidewall. venting system (vent piping) and chimney by natural means. … a structure to the outside atmosphere in lieu of a chimney.
How can Backdraft be prevented?
If backdraft conditions are suspected, proper ventilation will prevent the explosion. Openings must be made above the fire to allow the superheated gases to escape before oxygen is introduced at lower levels-the lower levels where we would be entering. Backdrafts and flashovers are equally dynamic and deadly.
Can you vent a water heater horizontally?
Water heaters with power venting come with an electric blower fan (often very quiet) installed on top of the water heater and can have either vertical or horizontal vent ducts. Since the vent does not rely on the buoyancy of hot air, it can be run horizontally to the outside of the house.
Is the water heater vent supposed to be hot?
Heat from a gas water heater vent is normal. Even triple wall pipe will get hot enough to burn to the touch. Carbon Monoxide is odorless, you didnt describe the odor.
How hot does water heater vent pipe get?
If a water heater is set to store water at 140 F to minimize Legionella bacteria growth, the flue gas temperature will be about 160 F when the heater is new. As scale builds up and the heater efficiency falls off, the flue gas temperatures can easily increase to over 350 degrees F.
