If you have an older gas furnace, your heating unit relies on a little blue flame known as a pilot light to ensure ignition of the burners. Water heaters, gas fireplaces and old gas stoves also often have similar pilot lights. … Since the pilot light needs to remain active, your furnace is always consuming some gas.
Once the gas has had time to dissipate, turn the knob to “Pilot.” Then, hold down the “Reset” button and bring the flame of a long lighter close to the pilot light opening. This should light the furnace pilot light. Once you are sure the pilot light is on, release your pressure on the reset button.
Thereof, Where is the pilot light on furnace?

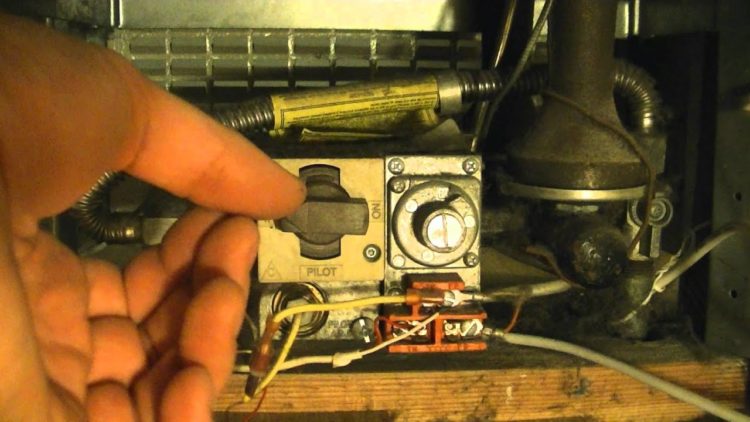

Step 1: Find the pilot light assembly. It’s usually near the bottom of the furnace and has a gas valve with on, off, and pilot settings. Step 2: Turn the valve to off and wait three minutes. No tools should be required to do this.
Also to know is, Can I relight the pilot light by myself? Pilot lights were once standard on all gas furnaces, but newer systems don’t always contain pilot light ignition systems. Instead, some newer furnaces use electronic ignition systems. … Often, homeowners can relight the pilot themselves. Here’s a step-by-step guide on how to relight a gas furnace’s pilot light.
Subsequently, question is, What does the pilot look like on a furnace?
Also, Is it dangerous to relight a pilot light?
A pilot light may need to be re-lit from time to time after being extinguished on purpose or by accident. If it is accidentally extinguished, there exists a danger that the gas used to keep the flame lit will continue to vent, possibly into the living space.
Do I need to turn gas off if pilot light goes out?
If the pilot light goes out on a storage or instantaneous hot water heater, space heater or a ducted heater, you will not have a gas leak. This is because all modern gas appliances with pilot lights have a fail-safe device that closes off the gas to the appliance in the case when the pilot may go out.
How much does it cost to relight a pilot light?
Most service providers will charge a standard fee per visit that typically covers the cost to relight a gas water heater. This service call price can range from $80 to $100.
What do you do when your pilot light goes out?
– Turn off your appliance at the power switch or thermostat.
– Find the gas valve control knob and turn it to select “pilot.”
– If pilot light controls are sticky, do not apply force or use oil. …
– Press the red button while simultaneously holding a match to the pilot burner.
What does a pilot light look like on a furnace?
A proper pilot flame should be blue with a yellow tip and should be strong enough to cover about 1/2 inch at the end of the thermocouple tip. If the flame is too strong and improperly adjusted, it will be blue but may be noisy and lift off the thermocouple, causing improper furnace operation.
What would cause a pilot light to go out on a furnace?
Thermocouple Malfunction It is positioned very close to the flame, and when lit, the pilot light tells the thermocouple to keep the gas line open. A thermocouple that is dirty or malfunctioning will often shut off your gas supply in error, causing the pilot light to go out and your furnace to stop working.
Will gas shut off if pilot light goes out?
A pilot light is a small flame that is built into your gas heating appliances, such as a furnace or water heater. … If the pilot light goes out for any reason, the current stops, the valve closes, thus preventing any gas from leaking.
How do I know if my furnace pilot light is out?
The most obvious sign of the failure of a pilot light will be a lack of hot water or warm air since the burner assembly can’t light and do its job of heating these substances.In many systems, a broken pilot light will prevent the appliance from working at all.
What happens when pilot light goes out?
Can a Pilot Light Outage Be Dangerous? The worry here is that when a pilot goes out, the gas valve that supplies the fuel for the pilot flame could still be pumping gas. This can mean a buildup of gas, and when the pilot is relit or relights itself it could result in a very serious explosion.
What do I do if my pilot light goes out?
– Turn off your appliance at the power switch or thermostat.
– Find the gas valve control knob and turn it to select “pilot.”
– If pilot light controls are sticky, do not apply force or use oil. …
– Press the red button while simultaneously holding a match to the pilot burner.
What would cause a pilot light to go out?
Thermocouple Malfunction It is positioned very close to the flame, and when lit, the pilot light tells the thermocouple to keep the gas line open. A thermocouple that is dirty or malfunctioning will often shut off your gas supply in error, causing the pilot light to go out and your furnace to stop working.
How do you light a pilot light on a furnace?
Once the gas has had time to dissipate, turn the knob to “Pilot.” Then, hold down the “Reset” button and bring the flame of a long lighter close to the pilot light opening. This should light the furnace pilot light. Once you are sure the pilot light is on, release your pressure on the reset button.
What does a thermocouple look like on a furnace?
The thermocouple looks like a piece of metal tubing smaller than a soda straw. To find it, first locate the gas control box. This is the box that the main gas line enters, where you turn the gas on in the furnace. (On most furnaces, it also houses the button that you hold open or push to relight the pilot.)
