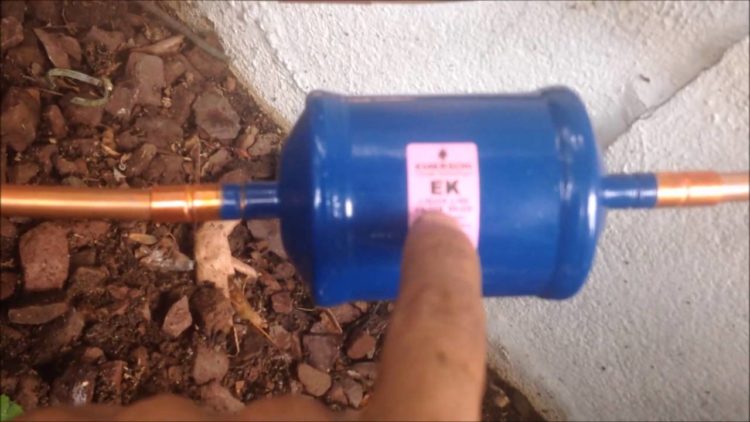

A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to adsorb system contaminants, such as water, which can create acids, and two, to provide physical filtration. Evaluation of each factor is necessary to ensure proper and economical drier design.
Point the arrow in the correct direction. Suction driers point towards the compressor and away from the evaporator. Liquid line driers point toward the metering device and away from the condenser. A liquid line drier goe in the liquid line NOT in the discharge line.
Thereof, What’s inside a filter drier?
This particular model has a Solid core, 80% of which is a molecular sieve and 20% being activated alumina. … The aluminium oxide is added in there to capture and retain acids. Not all filter driers will have activated alumina inside them it depends on the application.
Also to know is, How do I know if my liquid line filter drier is clogged? If the temperature in the condenser coil is lower than normal, it may be because the liquid line filter drier is clogged and is not allowing the liquid refrigerant back into the condenser to open up and cool off. This is another possible symptom of a clogged liquid line filter drier.
Subsequently, question is, What does a liquid line filter drier do? A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to adsorb system contaminants, such as water, which can create acids, and two, to provide physical filtration.
Also, What happens if you put a filter drier backwards?
When installing a new filter drier, an arrow on the filter drier’s housing will indicate which direction refrigerant is designed to flow. If installed backwards, the filter drier will become useless.
How does a filter drier work?
Filter Drier What is it and what does it do. Filter driers are exactly what they sound like, they are filters. They filter the refrigerant inside the ac system. Filter driers need to be able to trap and contain moisture, acid, contaminants and wax from circulating throughout the air conditioner.
Does filter drier size matter?
As there are usually several filter sizes available for a given connection diameter, the drying capacity is also a good selection criterion. For quick selection without further consideration of the drying capacity or liquid capacity, you should always choose a slightly larger drier.
What causes low liquid line pressure?
A notable sign that you have a liquid line restriction is low pressure in your evaporator. Liquid line restrictions can be caused by a restricted filter-drier, a restricted thermostatic expansion valve screen, a kinked liquid line, a bent lower condenser coil, or an oil-logged capillary tube.
Is a filter drier necessary?
There is no typical lifespan on a filter-drier. If the system is clean and the installation was good, the drier could stay in a system forever. And, since many manufacturers include a small filter-drier in the original equipment, it may never be necessary to install another one.
Where should a filter drier be installed?
Where is the Drier Usually Located on an Air Conditioning, Heat Pump, or other Refrigeration System? The drier is installed at the coolest location on the system, on the liquid line, outside of the refrigerated space, and ahead of any refrigerant metering devices like thermostatic expansion valves or capillary tubes.
How often should a filter drier be changed?
every 2 years
How do I know if my filter drier is bad?
– Restricted Evaporator Coils.
– Freezing Evaporator Coil.
– Temperatures Drop Across the Filter Drier.
– Lower Condenser Coil Temperatures.
What is the difference between a regular filter drier and a cleanup filter drier?
Cleanup driers can remove more particles and acid than standard driers. Another difference is that regular driers are designed to remain in the system. Cleanup driers are removed after they have performed their job.
What is in a filter drier?
Filter driers typically include a desiccant material throughout, with a mesh screen located at the exit of the drier. A desiccant is a material that absorbs moisture. The screens are in place to ensure the desiccant and other particulates remain in the filter drier.
What is inside a filter drier?
This particular model has a Solid core, 80% of which is a molecular sieve and 20% being activated alumina. … The aluminium oxide is added in there to capture and retain acids. Not all filter driers will have activated alumina inside them it depends on the application.
What should the temperature difference between the dryer filter?
Showing Temperature Differential Across a Liquid Line Filter Drier. Recommended: Temperature or Pressure Drop across a Drier is No More than 2 psig or 2 Degree’s F.
What is a filter drier in a refrigerator?
A filter-drier in a refrigeration or air conditioning system has two essential functions: one, to adsorb system contaminants, such as water, which can create acids, and two, to provide physical filtration.
