A fusible link is a short piece of insulated low-voltage cable within an automotive wiring harness that is designed to protect the harness in applications where a fuse is unsuitable.
Thereof, How do you fix a fusible link?
Also to know is, What happens when a fusible link goes bad? When it fails, it will break the continuity in the rest of the circuit, preventing damage to other components down the line. A fusible link typically costs a couple of bucks and can be replaced in 30 minutes.

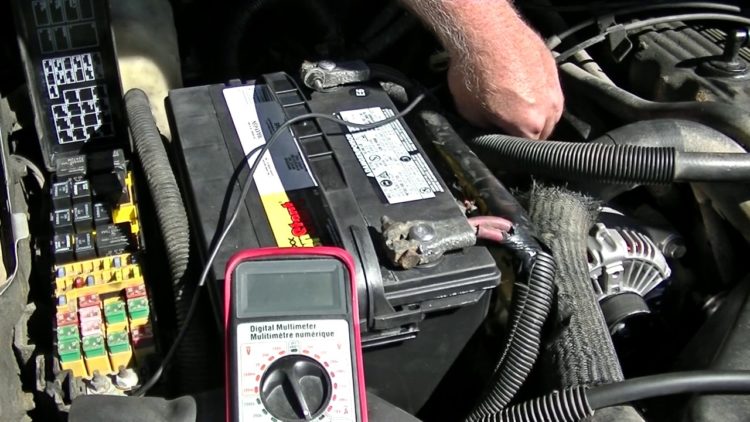

Subsequently, question is, How do I know if my fusible link is blown? The fusible link is essentially an in line fuse on the positive terminal of the battery. To determine if the fusible link has been blown , one test lead of your ohmmeter should be on the positive terminal of the battery and the other test lead should be on the end of the fusible link going to the circuit it protects.
Also, What does a fusible link do?
A fusible link is a short piece of insulated low-voltage cable within an automotive wiring harness that is designed to protect the harness in applications where a fuse is unsuitable.
Can a fusible link be replaced with a fuse?
A fuse will not work, you must replace with a fusible link. A fusible link is a solid wire (but smaller awg) placed in a current carrying line where there should NEVER be a dead short. … Fusible links—also spelled fuseable and fusable—serve a similar purpose to a fuse.
How often do fusible links need to be replaced?
once a year
What causes a fusible link to burn out?
Typically, a fuse burns out when a circuit attempts to transmit too much current, severing the connection before the electrical charge can have any ill effects. … If there’s a surge, the link actually melts, as its resistance to heat is lower than that of the circuits it’s protecting.
Why do fusible links go bad?
Either stress cracks from bending, or corroded or loose connections can cause a fusible link to overheat and give up at an amperage below its rating. The fusible link is no less protective than a fuse.
Can a fusible link be reset?
Fuses, fusible links, and circuit breakers protect an electrical circuit from damage caused by overload or short circuit. Fuses and fusible links operate once and then have to be replaced; a circuit breaker can be reset (either manually or automatically) to resume normal operation.
What is a fusible link and how does it work?
Fusible links include mechanical and electrical devices. A mechanical fusible link is a device consisting of two strips of metal soldered together with a fusible alloy that is designed to melt at a specific temperature, thus allowing the two pieces to separate.
Do fusible links go bad?
Fusible links work off of heat in the wire (resistance). Too high a resistance, the wire in the fusible link melts and creates an open (like blowing a fuse). It is possible that after many years of use and power through the wire that it indeed didn’t have the same load capacity as a brand new one.
How often should fusible links be replaced?
All Fusible Links shall be replaced once a year. The Links shall be replaced sooner during annual inspection if the conditions in (4) exist. The Fusible alloy that is used in the manufacturing of the Fusible Links undergoes a phenomenon known as Creep or Cold flow.
What is the difference between a fusible link and a fuse?
(You can read more about fuses here.) Just like a fuse, the link is designed to handle a lower current (amp) load than the rest of the system so, in the event of a short or overload, the link will be the first failure point. … But fusible links look much different than fuses and are used for different applications.
What is the advantage of a fusible link?
A fusible link is a short piece of insulated low-voltage cable within an automotive wiring harness that is designed to protect the harness in applications where a fuse is unsuitable.
Are fusible links necessary?
They are slightly hard to diagnose if you blow them, but they are generally like 100 amps or something protecting a circuit that doesn’t go through the fuse box (like the starter or alternator to battery). … If you want to lose the fusible link, you can add a big ass fuse somewhere else, but you don’t want no protection.
How long are fusible links?
The length of a fusible link should not exceed 9″. Can a fusible link be used to replace a fuse that blows frequently? In general, a fusible link should never be used to replace an automotive fuse unless authorized by a vehicle factory service bulletin.
