A junction box is used to add a spur or to extend circuits and direct power to lights and additional sockets. Advice on wiring electrical junction box with easy to follow junction box wiring diagrams, including information on 20 and 30 amp junction boxes.
Thereof, Does a junction box have to be accessible?
Junction box covers must remain accessible; they cannot be covered with drywall or other surface material. A junction boxes is most often used where an electrical circuit branches off in two or more directions from a location where an outlet or fixture is not practical.

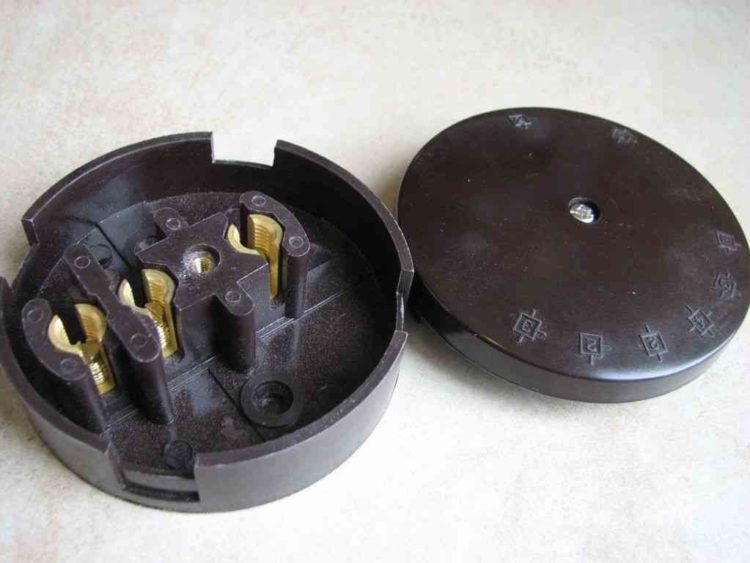

Also to know is, What is a 5 amp junction box used for? Here we have a 5 amp 4 terminal junction box that is ideal for use in lighting circuits. You will often see these used in old looped radial circuits instead of a ceiling rose in older houses. They are useful for ‘breaking in’ to an existing radial power loop to add additional wall lights in a room for example.
Subsequently, question is, How do you wire a 30 amp junction box?
Also, How do you wire up a junction box?
Do I need a junction box to extend wiring?
If you do need to extend the wires, yes, a junction box would be needed. It must remain accessible.
Is it OK to use a junction box to extend wiring?
If you do need to extend the wires, yes, a junction box would be needed. It must remain accessible.
Are junction boxes legal?
The National Electrical Code (NEC) dictates that no wiring splices are allowed outside of an approved enclosure. One type of approved enclosure is a junction box. Junction box covers must remain accessible; they cannot be covered with drywall or other surface material.
What is the purpose of a junction box?
Electrical boxes, also known as junction boxes, enclose wire connections. They help protect against short circuits, which can cause fires. This guide describes the different types of electrical boxes, their materials and their applications.
Can I bury a junction box in a wall?
The National Electrical Code (NEC) dictates that no wiring splices are allowed outside of an approved enclosure. … Electrical wires run behind the walls and through the ceiling of your home, meeting at junction boxes. It is a safety hazard to completely bury a junction box in a wall.
How do you make a junction box accessible?
The National Electrical Code says that the junction box has to be accessible “without removing any part of the building.” Basically you should be able to get at the box without cutting, demolishing, or drilling anything. Rule of thumb is that a screwdriver should be all you need to gain access into the junction box.
Does a junction box need to be accessible?
Junction box covers must remain accessible; they cannot be covered with drywall or other surface material. A junction boxes is most often used where an electrical circuit branches off in two or more directions from a location where an outlet or fixture is not practical.
Is a junction box required?
Electrical codes generally require that all electrical devices, and the wiring connections to those devices, must be enclosed in an approved electrical box. Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring.
How much wire do you leave in a junction box?
Cables Entering the Receptacle Box When electrical cables route from box to box, you must leave at least six inches of free conductor wiring in the junction box for connection purposes.
What is a junction box for lighting?
The modern lighting junction box, or electrical box, is where the electrical wires originate. The junction box is where you will connect the wires to the cord set, and also where the ceiling canopy will attach to support the light fixture.
Can I plaster over a junction box?
You CAN NOT plaster over or cover any junction box that is active. Junction boxes need to be readily accessible. If the box is disconnected, remove it, and then patch the hole.
How many wires can be spliced in a junction box?
For example, the smallest 2 x 4 x 1 1/2-inch deep box can comfortably splice only two cables (four or five conducting wires), while the largest 4 x 4 x 2 1/8-inch-deep boxes can handle as many as four to six cables (up to 18 individual conducting wires).
