The thimble is the round opening that can be found in a brick or stone chimney about five feet above floor level. The thimble enters the flue inside the chimney at a 90 degree angle and is designed to accommodate the entry of a stovepipe from a wood stove.
Table of Contents
READ ALSO
Thereof, Can you vent a wood burning stove through a wall?
For instance, wood-burning stoves will always be vented through the roof of your house, but pellet-burning stoves can be vented vertically through the roof, or horizontally through the wall to the outdoors. Same with gas stoves – venting can be routed in either direction – vertically or horizontally.

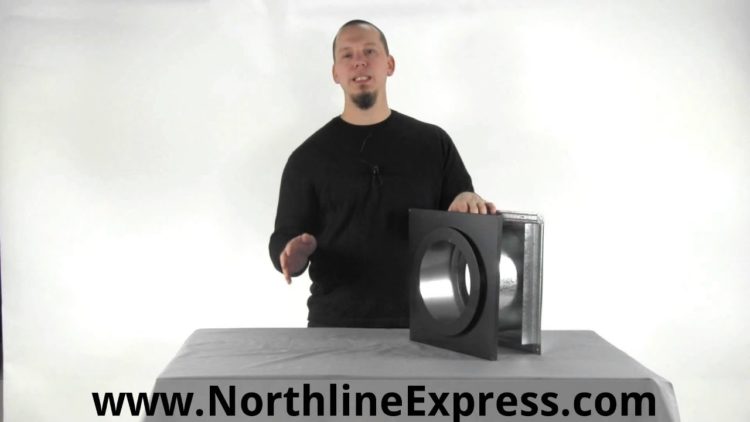

Also to know is, What is a wall thimble? A wall thimble is a separate piece of steel positioned into the wall structure before the concrete is placed. It provides a rigid, fixed opening and an accurate mounting surface for the gate, to minimize the possibility of distortion.
Subsequently, question is, Can you direct vent a wood burning stove? For instance, wood-burning stoves will always be vented through the roof of your house, but pellet-burning stoves can be vented vertically through the roof, or horizontally through the wall to the outdoors. Same with gas stoves – venting can be routed in either direction – vertically or horizontally.
Also, Can you direct vent a wood stove?
Choosing A Direct Vent Wood Stove The opening for the piping, or the flue of a direct vent wood stove is usually located on the top of the wood stove towards the back. This design helps increase draft, drawing the smoke up and out of the stove resulting in a cleaner burning fire.
How far should a wood stove be from a wall?
36 inches
How do you install a Duravent wall thimble?
How do you run stove pipe through a wall?
How do you install a thimble on a chimney?
The inside edge of the thimble should be flush with the inside face of the clay flue liner, with all gaps filled with mortar. smooth the face of the mortar between the thimble and the bricks. Be sure that the thimble is level; the part that protrudes from the chimney should be perpendicular to the face of the brick.
Which way does flue pipe go?
Heat-Fab stovepipe is designed so that the crimped (male) end of the pipe always points toward the stove. You may be thinking that this connection will allow smoke to leak out.
Can I use single wall stove pipe inside?
Single Wall Black Stove Pipes Use Single Wall Black Stove Pipe from your stove to a thimble or ceiling transition box, never inside a combustible wall or inside a chimney chase. An 18 inch clearance to combustibles is required and these pipes feature an unheard of fume-free finish.
How does a wall thimble work?
The thimble enters the flue inside the chimney and is designed to accommodate a stovepipe. If the homeowner no longer uses the wood-burning stove, the pipe is removed, and the thimble port is covered over by drywall, wallpaper, or a pie-plate cover.
How do you seal a thimble on a wall?
Select one half of the Wall Thimble for the outside of the wall. 1. Apply a continuous bead of high quality silicone or silicone/latex caulk on the inside of the outer flange. This is the only weather seal to keep moisture outside the building; take care at this step.
Do I need a wall thimble?
Running any residential or building heating appliance, burning gas, liquid, or solid fuels through a combustible wall, will require an Insulated Wall Thimble as your passageway to connect appliances to interior or exterior masonry chimneys. … Clearance for double wall stove pipe is 6″ for these areas.
How do you use fire cement on a flue pipe?
Make sure the fireplace cover and collar, as well as the flue pipe, are secured before applying the new fire cement for sealing up the cracks. Experts recommend using masking tape around the top and bottom of the seal so that a clean straight edge of the fire cement can be applied and exposed to the heat.
How far does wood stove need to be away from wall?
36 inches
What is the clearance for single wall stove pipe?
18″
