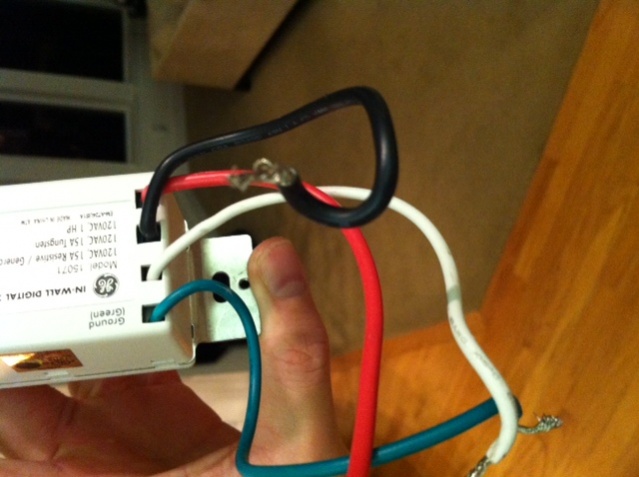

Complete the LINE Connection The hot wire connections for a mechanical timer switch include both a LINE and LOAD connection. The LINE connection is where the incoming hot wire from the power source is connected, while the LOAD connection carries power onward from the switch to the appliance or device.
Thereof, What is the load wire in a switch?
The load wire connects your light switch to your light fixture. When the switch is “closed”, electricity flows from the light switch to your light fixture, turning on the light. Your existing switch should have been connected to the load wire. It is usually attached to a brass terminal on the previous switch.
Also to know is, What is load and line on a switch? Outlets (receptacles), switches, light fixtures, and other electrical devices typically are wired in multiples on a single circuit. … The line side of an outlet is where you connect the incoming source power. The load side is where the power leaves the device (or electrical box) and travels down the circuit.
Subsequently, question is, Why does a switch have 3 wires? A three-way switch is a handy convenience to control a light from two locations, such as at the top and bottom of a staircase. If the words On and Off aren’t embossed on the switch and it’s one of two switches that control a single light or receptacle, you have a three-way switch.
Also, Can a circuit work without a neutral?
Nope, that’s not how it works. Both the hot wire and the neutral wire are capable of providing charged particles—which is to say, electrons.
Do you have to use the neutral wire?
Common mode noise is the noise between the power carrying wires and the ground wire. The presence of a neutral wire is not required (many computers do not have a neutral wire connection).
Is a switch a load in a circuit?
An electric switch is a device that interrupts the electron flow in a circuit. … A load is a power-powered device. The function of an electric switch is to regulate the current between the load and source of power. The power source is the electrons that push through the circuits.
Is a neutral wire required?
Neutral wires are typically white and may be found bundled inside the back of the switch box. If your home was built or remodeled after 2011, the National Electric Code (NEC) requires neutral wires. If your home was built or remodeled in the mid-80’s, you’re likely to have neutral wires. Also known as a return wire.
What does load mean in wiring?
In the electrical trades, the terms “line” and “load” are shorthand words that refer to the wires that deliver power from the source to a device (line), vs. those that carry power onward to other devices further along the circuit (load).
Do new homes have neutral wire?
US houses built from the 1980s on Usually have a neutral at the switchbox. Beginning in 2011, the national electrical code required a neutral at almost all switch boxes.
What happens if you switch line and load?
Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.
What is the purpose of the neutral wire?
Neutral wire carries the circuit back to the original power source. More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized.
What color is load wire?
The color for the Line wire is usually black and Load wire is usually red, black, or blue (less common).
Does the neutral wire carry current?
To sum up, a live wire carries the full load current, while a neutral wire carries some current, only when the loads are not balanced. … But neutral is also connected to the live wire through the device being powered, so the voltage close to the device won’t be zero if the device is on.
Why did I get shocked on the neutral wire?
When you have power going to any part of your house, if there is any type of load on it,and you take the neutrals apart,you are interrupting the load so if you touch the 2 neutrals at any time you can become the neutral which is how and why you feel the shock. It can be harmful depending on the load.
How many wires do you need for a 3 way switch?
three wires
What happens if you mix up line and load?
Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. But when you push the little “test monthly” button, and the “reset” button pops out, the receptacle stays live.
