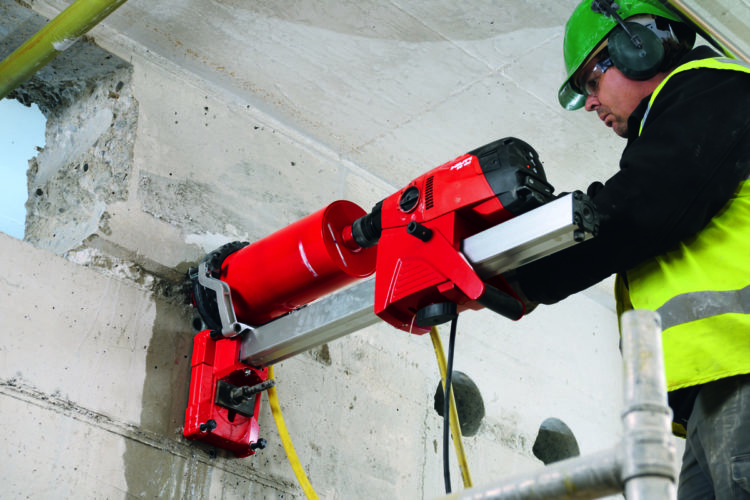

Core drilling. Core cutting in concrete is a method used for creating openings for pipes, wires, ventilating or air conditioning vents to fit through. Core drilling is basically another way of saying the cutter is making precise, circular holes.
Core drilling is a type of service in which a drill is used to remove a cylinder of material, called a ‘core. ‘ This type of concrete cutting is used in many applications, including but not limited to: Walls, floor slabs, and ceilings for electrical and communication services, cabling, plumbing, or HVAC.
Thereof, What is core cutting test?
The examination and compression testing of cores cut from hardened concrete is a well – established method, enabling visual inspection of the interior regions of a member to be coupled with strength estimation. Other properties which can be measured is also given in this paper.
Also to know is, Why is core cutting done? Core cutting is done to make provisional holes for the purposes of electrical wiring, plumbing, firefighting systems, rainwater outlets, heating, air-conditioning, and ventilation installations.
Subsequently, question is, What is coring in plumbing? Coring is used for plumbing or electrical lines, water drain holes, large diameter water lines and holes for anchor bolts or lifting rods. … Regarding this, what is a coring hole? Core Holes.
Also, What is core test?
Core test is commonly required in the area of concrete industry to evaluate the concrete strength and sometimes it becomes the unique tool for safety assessment of existing concrete structures. Core test is therefore introduced in most codes. … The Egyptian code provision for core interpretation is critically examined.
How much does it cost to core concrete?
Core Drilling Hole Size Floor Cost per Inch Wall Cost per Inch
———————– ——————- ——————
1″-2.5″ $3.50 $4.00
3″ $4.00 $5.00
4″ $5.00 $6.00
5″ $6.00 $7.00
Is 516 a core test?
These cylindrical concrete cores are then made smooth at both ends ( if required ) and then tested for compressive strength. … The cylindrical strength is then co-related to cube strength. IS – 516 suggest a multiplying factor of 1.25 for converting cylindrical strength to equivalent cube strength.
How do you calculate the compressive strength of concrete?
Compressive strength is measured by breaking cylindrical concrete specimens in a compression-testing machine. Compressive strength is calculated from the failure load divided by the cross-sectional area resisting the load and reported in units of pound-force per square inch (psi) or megapascals (MPa).
What is the purpose of core drilling?
Rock Coring The primary purpose of a core drilling is to obtain an undisturbed, intact sample representative of the in situ material.
How do you find the compressive strength of concrete?
Compressive strength is measured by breaking cylindrical concrete specimens in a compression-testing machine. Compressive strength is calculated from the failure load divided by the cross-sectional area resisting the load and reported in units of pound-force per square inch (psi) or megapascals (MPa).
What is a core bit and barrel used for?
Rotary core bits are used in downhole drilling applications. The hollow center in which the core is contained is called the barrel. Rotary core bits contain an inner and outer barrel, separated by ball bearings, which allows the bit to rotate while the core in the inner barrel remains stationary.
Is core cutting safe?
Yes of course it is safe to cut a 7″ core in the beam. But it should be done carefully with causing any cracks in the surroundings of the core in the beam. The position of core cutting is also important as it is not safe to cut the core at joints. … 7” in length won’t effect the strength of beam as such.
How do you test a concrete core?
Concrete cores are usually cut by means of a rotary cutting tool with diamond bits. In this manner, a cylindrical specimen is obtained usually with its ends being uneven, parallel and square and sometimes with embedded pieces of reinforcement.
What is the importance of core drilling?
The primary purpose of a core drilling is to obtain an undisturbed, intact sample representative of the in situ material. Coring is the primary method of obtaining samples of the soft rock and the cemented soil that are encountered in many areas of the world.
What’s the difference between a core drill and a hammer drill?
Hammer drills are smaller and more compact than diamond core rigs and are ideal for smaller jobs. Percussion carbide bits are most often used with hammer drills because cheaper bits will not withstand the pressure of the impact created by a hammer drill. Holes up to 6-inches can be drilled with a Hammer Drill.
How do you find the drill meaning?
informal. : to know how something is done : to be familiar with a regular process, procedure, etc. You don’t have to tell us what to do. We all know the drill by now.
Will a core drill go through metal?
A core drill is a hollow, cylindrical drill that is used to make holes through a surface. It is made of metal, and the drill tips are usually coated with either diamond or carbide. … A core drill can penetrate various surface types. It can cut cement, wood, rocks, and ice.
