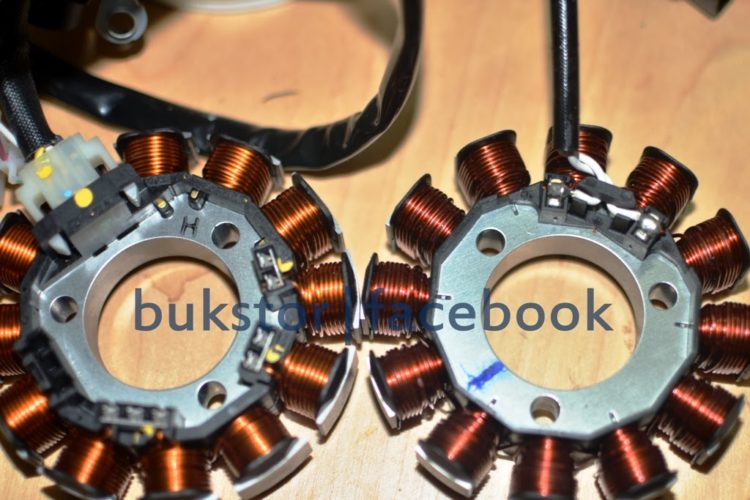

The stator and the magneto really can be thought of as the same thing. Simply put the stator is the stationary, wire wound portion of the power generation system. Magneto is the common name used when describing a permanent magnet to produce alternating current.
A magneto is an engine driven device consisting of a rotating magnet and field poles. It needs no battery, and generates current to spark a spark plug. A coil is a device used in an ignition system that is actually a trsnsformer that steps battery voltage up to approx. … This voltage is used to fire the spark plugs.
Thereof, What does a stator do?
The stator is the coil of wire housed inside the engine case. A magnet on a shaft spins within the stator, creating alternating current (AC). That current travels along fairly heavy gauge wire through the case and into the rectifier/regulator which converts it to DC power, and at a consistent output.
Also to know is, What is a magneto in aviation? Description. A magneto is an electrical generator that uses permanent magnets to produce alternating current. Magnetos that are adapted to produce pulses of high voltage electricity are used in the ignition systems of some gasoline-powered internal combustion engines to provide energy to the spark plugs.
Subsequently, question is, How does a 2 stroke stator work? The stator is the coil of wire housed inside the engine case. A magnet on a shaft spins within the stator, creating alternating current (AC). That current travels along fairly heavy gauge wire through the case and into the rectifier/regulator which converts it to DC power, and at a consistent output.
Also, Does a stator charge the battery?
An ATV uses what is called a stator system or magneto system to charge it’s battery. … Any time the engine is running, the stator is continuously generating an electric charge. Some of the electricity is used to power the bikes different electrical components. Whats left is being used to charge the battery.
How do I know if my stator is bad?
The stator coil generates the power for the spark plug and other accessories on small engines Without a stator there would be no spark at all, meaning the engine won’t run. While a stator is dying, it can produce a weak spark, causing the engine to miss or run poorly. Symptoms are often worsened as the engine warms up.
Which brand of ignition coil is the best?
Delphi GN10328
What causes a stator to go bad?
There are a few things that may cause a stator to fail. Too heavy of a load when operating accessories (winch,heated grips,headlights, etc). If working several of these items at one time (plowing/pulling/possibly stuck at night) you would overload the system. This could cause either the stator or rectifier to fry.
Can a stator go bad from sitting?
Stators do not go bad from sitting unless the mag housing is full of water.
How does a Lucas magneto work?
Magnetos act as a generator and create their own low or primary voltage, then act as a spark coil and transform the low voltage into high voltage (around 20,000 volts). The faster they spin, the more voltage they put out. Almost everybody has probably heard of the “reverse Polish logic” used in early LED calculators.
How does a magneto work aviation?
The magneto is a self-contained generator of high voltage that provides ignition to an engine through spark plugs. A magnet—hence magneto—spins in close proximity to a coil of wire. … The two magnetos on most GA aircraft—the left and the right—each fire one of two spark plugs on each cylinder.
Can a stator cause overcharging?
(Typically, a bad stator won’t put out excess electricity. One of the windings goes bad and voltage output drops.) This AC voltage goes to the regulator/rectifier where it is changed to DC voltage and the required amount is sent to the battery.
What happens when a stator goes bad?
The stator coil generates the power for the spark plug and other accessories on small engines Without a stator there would be no spark at all, meaning the engine won’t run. While a stator is dying, it can produce a weak spark, causing the engine to miss or run poorly. Symptoms are often worsened as the engine warms up.
How do I know if my stator or rectifier is bad?
You won’t have any trouble diagnosing the faulty regulator rectifier if the battery is the cause. You’ll note signs right away like poor starts, fluctuating meter readings, and dimmed headlights. around 13 volts, the bike will start to drain the battery.
How can you tell if a magneto is bad?
Holding the plastic handle of the screwdriver, bring the metal area of the screwdriver close to a metal part of the engine, being careful not to touch it. Have someone start the mower. If you don’t see a spark between the screwdriver and the engine, the magneto is bad.
Can a bad stator damage a rectifier?
Registered. To answer your question yes it can, there are three diodes(phases) within the rectifier that allow current to go in one direction through the device (ie. Stator > Rectifier > Battery). But will not allow currrent to flow in the opposite direction.
Are Delphi ignition coils good?
The Delphi coils function properly with the N54 engine and appear to be well designed and manufactured. … Overall, the Delphi coils are a high quality, economical substitute for the OEM Bosch units on the N54 engine.
