When to use Teflon® Tape Tapered threads, when tightened together, seal all along the engaged threads. The plumbers tape acts as a lubricant to allow unimpeded penetration, and as a seal to fill any voids that remain after the desired torque is reached.
Thread seal tape (also known as PTFE tape, Teflon tape, or plumber’s tape) is a polytetrafluoroethylene (PTFE) film tape commonly used in plumbing for sealing pipe threads. The tape is sold cut to specific widths and wound on a spool, making it easy to wind around pipe threads.
Thereof, How many times do you wrap Teflon tape?

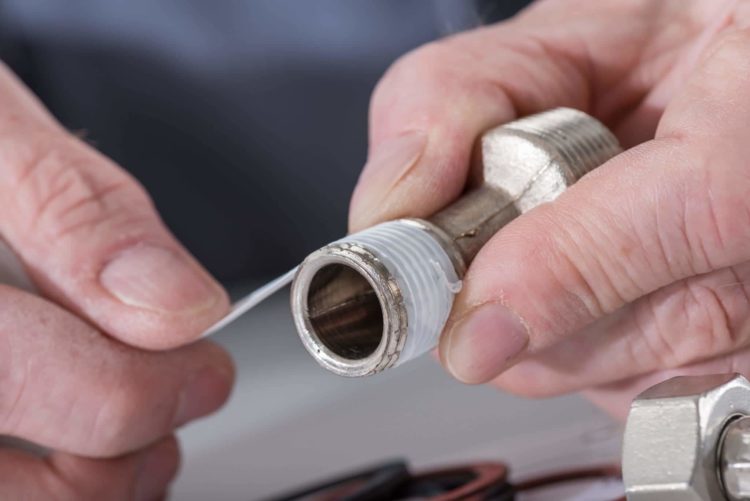

You always want to wrap seal tape around threaded pipe fitting in a clockwise direction. In most cases for a new joint you should apply only two or three wraps of tape. On older fitting where the threads may be damaged you may consider adding a few more wraps, but keep the number of warps to a minimum.
Also to know is, What can I use instead of Teflon tape? – Shortcomings of Teflon Tape.
– Pipe Dope.
– Teflon Valve Packing.
– PTFE Pipe Thread Sealant.
Subsequently, question is, Which is better Teflon tape or paste? When working with fittings with straight threads, paste dope should always be used. Tape dope is too thick, and can actually prevent a good seal in straight thread joints. Paste dope will spread and be pushed out of the way, and will not prevent the threads from properly engaging.
Also, Which direction do you wrap Teflon tape?
It’s real important to apply your Teflon tape in a clockwise direction which coincidently is the same way you thread on most of your fittings.. If you apply the tape in an anticlockwise direction it will unravel as you screw on the fitting which will render it useless.
How many times should Teflon tape be wrapped?
You always want to wrap seal tape around threaded pipe fitting in a clockwise direction. In most cases for a new joint you should apply only two or three wraps of tape. On older fitting where the threads may be damaged you may consider adding a few more wraps, but keep the number of warps to a minimum.
Do you need Teflon tape on an fittings?
Fittings that seal with an o-ring, or a straight thread with a tapered sealing surface require NO sealant tape/goo. It will usually cause more leaks than not. Feel free to use teflon tape or goo on any NPT or tapered fittings though.
How many times should you wrap threads with Teflon tape?
Maintain tension on the tape so it wraps snugly around the pipe. Work away from the end of the pipe, overlapping the tape as you go. Complete four to six wraps around the pipe, finishing near the end of the threads (opposite the end of the pipe).
What can be used instead of plumbers tape?
– Shortcomings of Teflon Tape.
– Pipe Dope.
– Teflon Valve Packing.
– PTFE Pipe Thread Sealant.
Do an fittings need thread sealant?
The only time you use thread sealant is on *NPT* type fittings. You are not supposed to use it anything else, especially on *AN* type fittings. AN type fittings do not seal at the threads. AN type fittings seal at the bevel.
How much plumbers tape do I need to use?
You only need to use 2-3 wraps of tape, however thinner tape may need 4-5 wraps. Make sure you start wrapping at the end of the fitting, covering the end to prevent the thread from seizing. For the joint assembly, you should tighten the threaded joint 1-2 turns beyond finger tight, be careful not to over tighten.
Is Teflon tape the same as plumbers tape?
Thread seal tape (also known as PTFE tape, Teflon tape, or plumber’s tape) is a polytetrafluoroethylene (PTFE) film tape commonly used in plumbing for sealing pipe threads. … Typically the tape is wrapped around a pipe’s thread three times before it is screwed into place.
Why is thread seal not used on flare fittings?
WARNING – Do not use pipe thread sealant or Teflon® tape on any flare ends because you will not obtain a leak-free seal. … -Never loosen a connection after tightening-this may cause a leak. It is always better to tighten more if a leak is detected.
Is there something better than Teflon tape?
According to most building codes, either type tape of the yellow-colored can be used for gas connections; however, most plumbers, as well as inspectors, prefer pipe dope because it is thicker and usually seals better.
Do you use Teflon tape on plumbing?
Plumber’s tape, often called Teflon tape, (polytetrafluoroethylene, or PTFE) helps you get a watertight seal on threaded pipe joints.
What actually seals the connection in a flare connection?
Design: The 37° flare AN seal is used for sealing tubing to end connections. It requires the end of the tube to have a nut slipped onto it and then flared out using a special tool. To seal properly, the nut is threaded into a flare fitting which clamps the flared tube in between the nut and flare fitting.
What is the best Teflon tape?
Mill-Rose Blue Monster PTFE Pipe Thread Sealant Tape performs so well it’s scary! Say good bye to pipe dope, this tape is compatible with a broad range of piping materials, will not harden or crack on the joints. It is effective across a broad range of temperatures and pressures.
