8 feet
8 feet

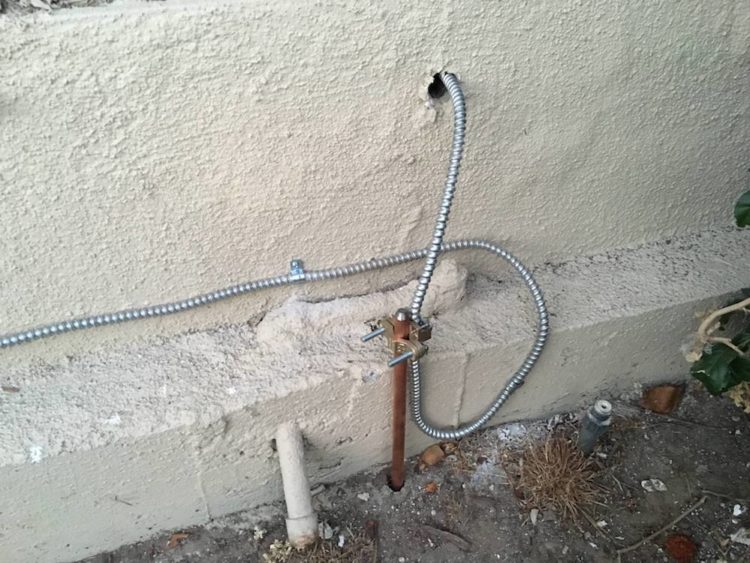

Thereof, How deep does a ground rod need to be?
8 feet
Also to know is, Can you pour concrete over a ground rod? Registered. CE1 said: Just pour over it and attach the ground rod or wire to any rebar or metal in the slab and have an electrican check it out when finished.
Subsequently, question is, How far can a ground rod be from panel? 6 feet
Also, Can you lay a ground rod in a trench?
If driving a rod at the 45 degree from vertical cannot be done, due to rock bottom, then the rod can be buried in a trench that is at least 2 1/2 feet deep.
Does a ground rod need to be accessible?
All mechanical elements used to terminate a grounding electrode conductor or bonding jumper to a grounding electrode shall be accessible. Exception No. 1: An encased or buried connection to a concrete-encased, driven, or buried grounding electrode shall not be required to be accessible.
Can you bury a ground rod horizontally?
Step 2 – Install the Ground Rod Horizontally If you hit a rock trench before you can hammer the rod down all eight feet, then you can simply install it horizontally. Shovel out a strip of the earth at least 2 1/2 feet deep and long enough to accommodate the entire grounding rod (at least 8 feet).
What gauge wire is required for ground rod?
The NEC code specifies that a solid copper wire used to connect to a ground rod must be at least either #6 or #8 gauge (depending on the size of your electrical service cable). #6 cable cable will always satisfy the sizing requirement, though in some cases larger is desirable.
Can you cover a grounding rod?
The electrical code states that it must have 8 feet (2.4 m) of contact with the ground, so you need to drive it all the way down. … Some electrical inspectors will allow you to leave 1–2 inches (2.5–5.1 cm) sticking up out of the ground. However, some want the entire thing covered in earth.
How far does a grounding rod need to be in the ground?
eight feet
How many grounding rods are required?
If a single ground has a resistance of 25 ohms or less, building codes allow it to be used as the only grounding device. If the resistance of a ground rod is greater than 25 ohms, at least one additional ground rod is required.
Does ground wire need to be covered?
Bare copper is one of the more common types of copper wire that is used for grounding. Bare copper is sometimes just called grounding wire. This type of copper wire is not covered in any type of protective coating, making it completely unprotected, hence the name.
Does ground rod wire need to be in conduit?
The reason the CODE requires the ground conductor to be inside the conduit is for protecting the conductor from being damaged by any mechanical means e.g., gardener weed whacker. In fact, you can use PVC to house the ground conductor.
How long does a grounding rod need to be?
eight feet
What can be used for a grounding rod?
copper
Can ground rods be buried?
If driving a rod at the 45 degree from vertical cannot be done, due to rock bottom, then the rod can be buried in a trench that is at least 2 1/2 feet deep.
How many ground rods are required for a 200 amp service?
GROUND ROD AND CLAMP Rod 5/8″ X 8′ #6 wire (copper) for 100 amp service #4 for 200 amp service, top of rod 4″ to 6″ below grade. Where a ground rod does not meet the 25 OHMS or less requirement in NEC a second rod is required with the rods being at least 6′ apart.
