20A
60 amp
Thereof, How do I know what size fuses to use?
Find the size of fuse by multiplying the amps required by the device (2) by 1.5. 2×1.25 = 2.5 then we will round up to the nearest fuse size (in multiples of 5 amps) which would call for a 5 amp fuse. Cross Reference that fuse size to verify that it’s below the Maximum fuse size called out by this chart.
Also to know is, Can I use a 60 amp disconnect on a 30 amp breaker? There’s nothing wrong with using a 60 amp disconnect on a 30 amp unit as long as the circuit itself is on the proper size breaker. 60 amp is a standard size for and a/c pullout type disconnect.
Subsequently, question is, What size fuses for 30 amp disconnect? OVERVIEW. The GE 30 Amp 120/240 Volt 240 Watt Fused (requires 2 fuses installed on the back side of the puller). AC disconnect has a NEMA 3R rated steel enclosure that is both rust and corrosion resistant for outdoor use.
Also, Is a disconnect required for air conditioner?
The 2008 National Electric Code requires: 440.14 Location. Disconnecting means shall be located within sight from and readily accessible from the air-conditioning or refrigerating equipment. The disconnecting means shall be permitted to be installed on or within the air-conditioning or refrigerating equipment.
What is a 60 amp disconnect?
The 60 Amp 240-Volt Non-Fuse Metallic AC Disconnect is designed to stop the power going to an air conditioning unit to allow for safe working conditions. The disconnect is a non-fuse, puller type and is UL listed with an enclosed pull-out switch. Used to disconnect power from an air conditioning unit.
Can I use a 60 amp disconnect on a 20 amp breaker?
Disconnect switches tend to be standardized with their ratings. 30, 60, 100 etc. You can use the 30 amp disconnect with 20 amp fuses. Just make sure that you get the correct fuses specified by the manufacturer.
What is code for AC disconnect?
According to the National Electrical Code (NEC) 240.24 (A), location in or on premises require that overcurrent devices be “readily accessible” and shall be installed so that the center of the grip of the operating handle of the disconnecting switch or circuit breaker, when in its highest position, is not more than 2.0 …
How do you wire a 30 amp AC disconnect?
Can a breaker be used as a disconnect?
A circuit breaker, on the other hand, can be used to protect a circuit that contains many switches or devices. An exception to this is a disconnect switch, which is used to connect or disconnect power to an entire control panel, or machine. … Switches switch and breakers break.
Does AC disconnect need to be fused?
Nameplate on the HVAC unit should tell you the maximum fuse/circuit breaker size required. If your breaker matches that then you’re fine, no fuses necessary. On the other hand, a fused disconnect is an extra bit of redundancy. Especially helpful if the breaker size specified on the HVAC unit is an oddball.

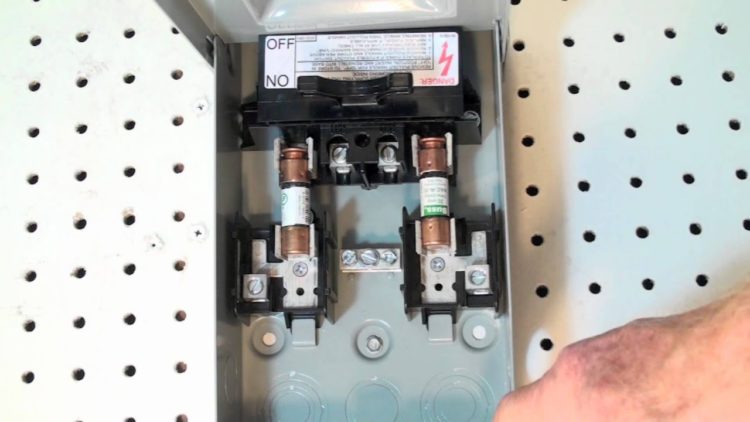

What size fuses for 60 amp disconnect?
The GE 60 Amp 240-Volt Fused (requires 2 fuses installed on the back side of the puller). This Metallic AC Disconnect is designed to stop the flow of electricity to allow you to safely work on the air conditioner.
Is it safe to use AC without service?
Most Air Conditioners Are Fine for 3-4 Months Many are meant to run for decades, and are expected to run daily for months at a time. As long as your air conditioner is in good working condition overall—and gets the maintenance it needs—it’s unlikely to suffer any problems if it’s off for just a few months.
How far can a disconnect be from an AC unit?
Also to know, how far can a disconnect be from an AC unit? This distance is typically described as within 50 feet (15 meters), and in practice at most residential properties the disconnect is much closer (3-6 ft), on a wall or standard near the compressor/condenser unit.
Can I use a 20 amp breaker on a 15 amp circuit?
No! The only safe way to increase the circuit’s capacity is by replacing the wire with one of adequate gauge. For 20 amps, 12 AWG copper is adequate for up to about 100 feet. If you simply replace the breaker, the wire can overheat and ignite the building from inside the walls.
How many amps will a 20 amp breaker hold?
16 amps
Is turning off circuit breaker same as unplugging?
Flipping the breaker just disconnects the power. Unplugging the unit disconnects the power, Neutral and ground. For most repairs it should not make a difference as long as you are sure that the correct breaker is flipped.
